Official File parts/24312.dat
Part Attributes:
File Header:

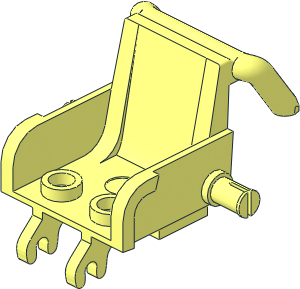

0 Minifig Wheelchair
0 Name: 24312.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !HISTORY 2024-04-10 [Holly-Wood] Fixed scaled prims, sanded handle, fixed overlap, fixed edges, fixed conds, closed gaps and overlap
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\24312s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\24312s01.dat
0 // Seat Bottom
4 16 19.9 7.95 29.9 16 7.95 26 -16 7.95 26 -19.9 7.95 29.9
1 16 0 2.75 20 -1 0 0 0 -1.3 0 0 0 -1 stud3.dat
0 BFC INVERTNEXT
1 16 0 7.95 20 -16 0 0 0 -5.2 0 0 0 -6 box5.dat
0 // could be box prim
1 16 0 5.225 10.1 0 0 -8 2.725 0 0 0 1 0 rect.dat
1 16 0 2.5 2.425 -8 0 0 0 -1 0 0 0 -7.675 rect3.dat
4 16 16 7.95 14 8 7.95 10.1 -8 7.95 10.1 -16 7.95 14
1 16 0 2.25 -7.575 -8 0 0 0 -1 -.25 0 0 -2.325 rect3.dat
0 // Seat Top
4 16 -20.1 0 -9.9 -8 2 -9.9 8 2 -9.9 20.1 0 -9.9
2 24 -20.1 0 -9.9 20.1 0 -9.9
3 16 5.25 0 9.75 0 0 9.75 20.1 0 -9.9
3 16 20.1 0 -9.9 0 0 9.75 -20.1 0 -9.9
3 16 -20.1 0 -9.9 0 0 9.75 -5.25 0 9.75
0 BFC INVERTNEXT
1 16 0 0 15 -5.25 0 0 0 .5 0 0 0 -5.25 4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 .5 15 -5.25 0 0 0 .235 0 0 0 -5.25 4-4con0.dat
1 16 0 0 15 -5.25 0 0 0 1 0 0 0 -5.25 4-4ndis.dat
4 16 -13.875 0 26.3 -5.25 0 20.25 0 0 20.25 13.875 0 26.3
3 16 0 0 20.25 5.25 0 20.25 13.875 0 26.3
1 16 10 0 0 0 0 1 0 1 0 -1 0 0 stud2.dat
1 16 -10 0 0 0 0 1 0 1 0 -1 0 0 stud2.dat
0 // Seat Back Inside
1 16 0 -5.065 28.7525 0 0 -13.875 -1.31 1 0 .2875 0 0 rect2p.dat
0 // Should be RECT3
2 24 -13.875 -1.59 27.58 -13.875 0 26.3
2 24 13.875 0 26.3 13.875 -1.59 27.58
2 24 -13.875 0 26.3 13.875 0 26.3
4 16 -13.875 0 26.3 13.875 0 26.3 13.875 -1.59 27.58 -13.875 -1.59 27.58
1 16 0 -2.6725 28.0225 0 0 13.875 1.0825 1 0 -.4425 0 0 rect2p.dat
1 16 0 -12.18875 30.17625 0 0 13.875 5.81375 1 0 -1.13625 0 0 rect2p.dat
1 16 0 -29.00125 33.40625 13.875 0 0 0 1 -10.99875 0 0 2.09375 rect3.dat
5 24 -13.875 -6.375 29.04 13.875 -6.375 29.04 -13.875 -18.0025 31.3125 -13.875 -3.755 28.465
5 24 13.875 -3.755 28.465 -13.875 -3.755 28.465 -13.875 -6.375 29.04 -13.875 -1.59 27.58
5 24 -13.875 -1.59 27.58 13.875 -1.59 27.58 13.875 -3.755 28.465 13.875 0 26.3
5 24 16.75 1.25 29.9 -16.75 1.25 29.9 16.75 .67771 31.4135785 16.75 1.95 25.945
0 // Seat Back Outside
2 24 19.9 7.95 29.9 -19.9 7.95 29.9
4 16 19.9 7.95 29.9 -19.9 7.95 29.9 -16.75 1.25 29.9 16.75 1.25 29.9
2 24 -16.75 1.25 29.9 16.75 1.25 29.9
1 16 16.75 -2.75 29.9 0 -33.5 0 4 0 -.7 0 0 3.955 1-4cylo.dat
4 16 16.75 -3.45 33.855 -16.75 -3.45 33.855 -16.25 -13.788 35.828 16.25 -13.788 35.828
4 16 16.25 -13.788 35.828 -16.25 -13.788 35.828 -16.25 -33.5 38.38 16.25 -33.5 38.38
0 // Seat Top
0 BFC INVERTNEXT
1 16 0 -32.75 41.755 -16.25 0 0 0 -.75 0 0 0 3.375 box2-5.dat
4 16 -17.295 -32 48 -17.3175 -36 48 17.3175 -36 48 17.295 -32 48
4 16 17.295 -32 48 16.25 -32 45.13 -16.25 -32 45.13 -17.295 -32 48
4 16 -13.875 -40 35.5 13.875 -40 35.5 18.63 -40 39.5 -18.63 -40 39.5
4 16 18.63 -40 39.5 18.63 -39.93 39.805 -18.63 -39.93 39.805 -18.63 -40 39.5
4 16 -18.63 -39.385 40.46 -18.63 -39.93 39.805 18.63 -39.93 39.805 18.63 -39.385 40.46
4 16 -18.63 -39.343 41.715 -18.63 -39.22 41.05 18.63 -39.22 41.05 18.63 -39.343 41.715
4 16 -18.63 -39.22 41.05 -18.63 -39.385 40.46 18.63 -39.385 40.46 18.63 -39.22 41.05
4 16 17.3175 -39.6956 42.4692 -17.3175 -39.6956 42.4692 -18.63 -39.343 41.715 18.63 -39.343 41.715
2 24 -17.295 -32 48 17.295 -32 48
1 16 -17.3175 -36 44 0 34.635 0 0 0 -4 4 0 0 5-16cyli.dat
5 24 13.875 -18.0025 31.3125 -13.875 -18.0025 31.3125 -13.875 -6.375 29.04 13.875 -40 35.5
5 24 16.25 -13.788 35.828 16.75 -3.45 33.855 -16.75 -3.45 33.855 16.75 -13.785 35.835
5 24 16.25 -13.788 35.828 -16.25 -13.788 35.828 16.75 -3.45 33.855 -16.25 -33.5 38.38
5 24 -16.25 -13.788 35.828 -16.75 -3.45 33.855 -16.75 -13.785 35.835 16.25 -13.788 35.828
5 24 18.63 -39.22 41.05 -18.63 -39.22 41.05 18.63 -39.343 41.715 -18.63 -39.385 40.46
5 24 -18.63 -39.343 41.715 18.63 -39.343 41.715 -18.63 -39.22 41.05 17.3175 -39.6956 42.4692
5 24 -18.63 -39.93 39.805 18.63 -39.93 39.805 -18.63 -40 39.5 18.63 -39.385 40.46
5 24 -18.63 -40 39.5 18.63 -40 39.5 18.63 -39.93 39.805 -13.875 -40 35.5
5 24 -18.63 -39.385 40.46 18.63 -39.385 40.46 18.63 -39.22 41.05 -18.63 -39.93 39.805
5 24 -17.318 -39.696 42.469 17.318 -39.696 42.469 17.318 -40 44 18.63 -39.343 41.715
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Still needs work, did not clean yet!
2017-11-27 08:55:00
I tend to think it shoulld be Y-rotated 180 degrees for better "standard orientation" thumbnail
Yes, I agree. It should be rotated.
Rotated, still needs optimisation
Existing certification-votes were deleted.
Existing certification-votes were deleted.
[PTadmin]
edited the part header.
2017-12-29 18:10:00
2021-08-21 16:50:01
Brickset shows this part as 65353. Alias? https://brickset.com/parts/design-65353
2022-01-16 23:30:01
LDD version at digital bricks available
Fixed scaled prims, sanded handle, fixed overlap, fixed edges, fixed conds, closed gaps and overlap
2024-04-10 13:29:09
2024-04-30 12:47:30
2024-05-24 07:20:06
2024-05-24 14:07:50
2024-05-28 02:57:14
Release 2024-04
