File Detail parts/24599p00.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/24599p00.dat

Part Attributes: Base Part: 24599.dat

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

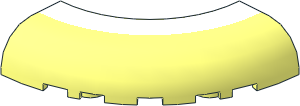

Brick 5 x 5 x 1 Corner Round with Curved Top with White Stripe Pattern

File Header:

0 Brick  5 x  5 x  1 Corner Round with Curved Top with White Stripe Pattern
0 Name: 24599p00.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Bricklink 24599pb01, Rebrickable 24599pr0001, Set 70830

0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\24599s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\24599s01.dat
0 // Primitives
1 16 60 20 -60 0 0 1 0 -1 0 -1 0 0 stud4a.dat
0 // Conditional lines
5 24 42.426 24 -42.426 42.426 20 -42.426 47.604 24 -36.528 36.528 24 -47.604
5 24 45.255 4 -45.255 45.255 24 -45.255 50.775 24 -38.961 38.961 24 -50.775
5 24 53.74 4 -53.74 59.152 5.218 -59.152 66.367 5.218 -50.925 50.925 5.218 -66.367
5 24 59.152 5.218 -59.152 63.74 8.686 -63.74 71.514 8.686 -54.875 54.875 8.686 -71.514
5 24 63.74 8.686 -63.74 66.806 13.877 -66.806 74.954 13.877 -57.515 57.515 13.877 -74.954
5 24 67.882 20 -67.882 66.806 13.877 -66.806 57.515 13.877 -74.954 74.954 13.877 -57.515
5 24 54.343 4.136 -54.343 54.343 20 -54.343 56.938 20 -52.609 52.609 20 -56.938
5 24 55.757 20 -55.757 55.757 4.454 -55.757 57.704 20 -54.457 54.457 20 -57.704
5 24 65.657 20 -65.657 65.657 11.931 -65.657 63.062 20 -67.391 67.391 20 -63.062
5 24 64.243 20 -64.243 64.243 9.537 -64.243 65.543 20 -62.296 62.296 20 -65.543
0 // Patternable faces
1 16 0 20 0 80 0 0 0 -80 0 0 0 -80 48\tm08o2500.dat
1 16 0 20 0 0 0 80 0 -80 0 -80 0 0 48\tm08o2500.dat
1 15 0 0 0 15 0 0 0 1 0 0 0 -15 48\1-4ring4.dat
1 16 0 0 0 5 0 0 0 1 0 0 0 -5 48\1-4ring15.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Massimo Maso [Sirio]

initially submitted the part.

2021-02-20 07:15:01

Perhaps it would be better to modify the subpart of the main part by removing the patternable surface leaving only the more complex lower part.

Philippe Hurbain [Philo]

made the following comment.

2021-02-20 08:30:01

That would follow the usual way, indeed.

Massimo Maso [Sirio]

submitted a new version of the part.

2021-02-21 07:05:01

Removed dedicated subpart. It need a new common subpart requested to Chris.

Existing certification-votes were deleted.

Gerald Lasser [GeraldLasser]

made the following comment.

2021-04-20 08:00:01

why do you use twice the (new) 48\1-8ring15 prim when there is a 48\1-4rin15 existing?

Massimo Maso [Sirio]

submitted a new version of the part.

2021-04-20 19:55:01

Fixed.

Existing certification-votes were deleted.

Orion Pobursky [OrionP]

submitted a new version of the part.

2024-03-23 00:59:37

Update ring primitives via script. This will not reset the vote status of the part.

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2024-05-27 07:54:26

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-05-27 09:53:45

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2024-05-27 16:03:51

Orion Pobursky [OrionP]

2024-05-28 02:57:15

Release 2024-04
