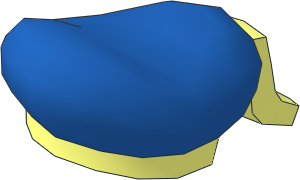

0 Minifig Hat Sailor with Ribbon and Pin with Blue Top Pattern
0 Name: 24635p01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Placement over duck head:
0 !HELP 1 0 0 -32.1 0 0.707 0 0.707 0 1 0 -0.707 0 0.707 24635p01.dat
0 !HELP 1 16 0 0 0 1 0 0 0 1 0 0 0 1 24633p01.dat
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Headwear
0 !KEYWORDS Bricklink bb0724pb01, Disney, Donald, Rebrickable 24635pr0001
0 !KEYWORDS Set 10775, set 71040
0 !HISTORY 2022-02-12 {LEGO Instructions App} Original part shape
0 !HISTORY 2022-02-15 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04
1 1 0 0 0 1 0 0 0 1 0 0 0 1 s\24635s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\24635s02.dat
Existing certification-votes were deleted.
And yes, the real hat sits better in a 45 degree angle. It "wants" to have this rotated position.
But the default position in LDD is unrotated, and that gives a better fit between the both geometries.
Existing certification-votes were deleted.
help:
0 !HELP Placement over duck head:
0 !HELP 1 0 0 -32.1 0 0.707 0 0.707 0 1 0 -0.707 0 0.707 24635p01.dat
to
0 !HELP Placement over duck head:
0 !HELP 1 0 0 -32.1 0 0.707 0 0.707 0 1 0 -0.707 0 0.707 24635p01.dat
0 !HELP 1 16 0 0 0 1 0 0 0 1 0 0 0 1 24633p01.dat
Not sure it brings much, but doesn't hurt. Added head to !help.
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
BTW: I get collision at Y = -32.7 in the front and a massive gap in the back. Changing to 32.6 or 32.5 will reduce the gap but results in a greater collision.
