Unofficial File parts/2494p04.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

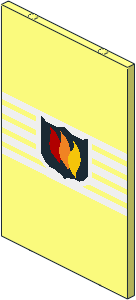

0 Glass for Window 1 x 4 x 5 with Fire Logo Pattern
0 Name: 2494p04.dat
0 Author: J.C. Tchang [tchang]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Glass
0 !KEYWORDS Blaze Brigade, BrickLink 2494pb07, Brickowl 363900, Brickset 82910
0 !KEYWORDS Fire 1994, Fire Fighters, Firemen, Lego 82910
0 !KEYWORDS Rebrickable 2494pr0003, Set 6554, Station, Town Junior
0 !CMDLINE -c43
0 !HISTORY 2018-06-16 [tchang] New part
0 !HISTORY 2025-07-25 [Blechtaler] corrected NOCLIP
0 !HISTORY 2026-10-13 [Holly-Wood] Used prim logoShow file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2494s01.dat
4 16 -16 48 -6 -36 48 -6 -36 50.5 -6 -16 50.5 -6
4 16 -16 54.5 -6 -36 54.5 -6 -36 57 -6 -16 57 -6
4 16 -16 61 -6 -36 61 -6 -36 63.5 -6 -16 63.5 -6
4 16 -14 67.5 -6 -36 67.5 -6 -36 70 -6 -10.5 70 -6
4 16 36 50.5 -6 36 48 -6 16 48 -6 16 50.5 -6
4 16 36 57 -6 36 54.5 -6 16 54.5 -6 16 57 -6
4 16 36 63.5 -6 36 61 -6 16 61 -6 16 63.5 -6
4 16 36 70 -6 36 67.5 -6 14 67.5 -6 10.5 70 -6
4 16 0 44.5 -6 36 4 -6 -36 4 -6 -36 44.5 -6
3 16 36 4 -6 0 44.5 -6 36 44.5 -6
4 16 -36 112 -6 36 112 -6 0 73.5 -6 -36 73.5 -6
3 16 36 73.5 -6 0 73.5 -6 36 112 -6
0 BFC NOCLIP
1 16 0 59.4005 -6 .90009 0 0 0 0 -.90009 0 1 0 logo-fire-1994-flames.dat
1 0 0 59.4005 -6 .90009 0 0 0 0 -.90009 0 1 0 logo-fire-1994-flames-outer-box.dat
1 0 0 59.4005 -6 .90009 0 0 0 0 -.90009 0 1 0 logo-fire-1994-shield-inner-box.dat
4 15 -13 48 -6 0 48 -6 0 44.5 -6 -36 44.5 -6
3 15 -36 44.5 -6 -16 48 -6 -13 48 -6
3 15 -36 44.5 -6 -36 48 -6 -16 48 -6
4 15 -16 50.5 -6 -36 50.5 -6 -36 54.5 -6 -16 54.5 -6
4 15 -16 57 -6 -36 57 -6 -36 61 -6 -16 61 -6
4 15 -16 63.5 -6 -36 63.5 -6 -36 67.5 -6 -14 67.5 -6
4 15 -10.5 70 -6 -36 70 -6 -36 73.5 -6 0 73.5 -6
4 15 0 44.5 -6 0 48 -6 13 48 -6 36 44.5 -6
3 15 36 44.5 -6 13 48 -6 16 48 -6
3 15 36 44.5 -6 16 48 -6 36 48 -6
4 15 36 54.5 -6 36 50.5 -6 16 50.5 -6 16 54.5 -6
4 15 36 61 -6 36 57 -6 16 57 -6 16 61 -6
4 15 36 67.5 -6 36 63.5 -6 16 63.5 -6 14 67.5 -6
4 15 36 73.5 -6 36 70 -6 10.5 70 -6 0 73.5 -6
4 15 13 48 -6 0 48 -6 1.853 48.897 -6 10.865 48.78 -6
4 15 10.865 48.78 -6 1.853 48.897 -6 4.074 49.536 -6 8.649 49.383 -6
3 15 8.649 49.383 -6 4.074 49.536 -6 6.376 49.671 -6
4 15 -1.853 48.897 -6 0 48 -6 -13 48 -6 -10.865 48.78 -6
4 15 -4.074 49.536 -6 -1.853 48.897 -6 -10.865 48.78 -6 -8.649 49.383 -6
3 15 -8.649 49.383 -6 -6.376 49.671 -6 -4.074 49.536 -6
4 15 1.59 70.822 -6 0 72 -6 0 73.5 -6 3.138 70.011 -6
4 15 4.808 69.477 -6 3.138 70.011 -6 0 73.5 -6 6.537 69.192 -6
4 15 6.537 69.192 -6 0 73.5 -6 10.5 70 -6 8.28 68.95 -6
3 15 9.831 68.362 -6 8.28 68.95 -6 10.5 70 -6
4 15 11.038 67.268 -6 9.831 68.362 -6 10.5 70 -6 14 67.5 -6
3 15 12.115 65.943 -6 11.038 67.268 -6 14 67.5 -6
4 15 12.785 64.369 -6 12.115 65.943 -6 14 67.5 -6 16 63.5 -6
4 15 13 62.694 -6 12.785 64.369 -6 16 63.5 -6 16 61 -6
4 15 13 61 -6 13 62.694 -6 16 61 -6 16 57 -6
3 15 16 54.5 -6 13 61 -6 16 57 -6
4 15 13 61 -6 16 54.5 -6 16 50.5 -6 13 48 -6
3 15 16 48 -6 13 48 -6 16 50.5 -6
4 15 -13 48 -6 -16 48 -6 -16 50.5 -6 -13 61 -6
3 15 -16 50.5 -6 -16 54.5 -6 -13 61 -6
3 15 -16 54.5 -6 -16 57 -6 -13 61 -6
4 15 -13 61 -6 -16 57 -6 -16 61 -6 -13 62.694 -6
4 15 -13 62.694 -6 -16 61 -6 -16 63.5 -6 -12.785 64.369 -6
4 15 -12.785 64.369 -6 -16 63.5 -6 -14 67.5 -6 -12.115 65.943 -6
4 15 -11.038 67.268 -6 -12.115 65.943 -6 -14 67.5 -6 -10.5 70 -6
3 15 -11.038 67.268 -6 -10.5 70 -6 -9.831 68.362 -6
3 15 -9.831 68.362 -6 -10.5 70 -6 -8.28 68.95 -6
4 15 -6.537 69.192 -6 -8.28 68.95 -6 -10.5 70 -6 0 73.5 -6
4 15 -4.808 69.477 -6 -6.537 69.192 -6 0 73.5 -6 -3.138 70.011 -6
4 15 -1.59 70.822 -6 -3.138 70.011 -6 0 73.5 -6 0 72 -6Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
Part Dependencies
Official parents and subparts
Part Events
J.C. Tchang [tchang]
initially submitted the part.
2023-01-09 04:25:02
Sorry for the date (!HISTORY) this part comes from the catacombs.
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2025-04-17 10:07:04
BFC NOCLIP only for the patterned areas, use BFC CLIP for the non-patterned faces
(just add the 0 BFC CLIP between the color 15 and 16)
do these window glasses need a shortcut with the frame and transparent glass?
(just add the 0 BFC CLIP between the color 15 and 16)
do these window glasses need a shortcut with the frame and transparent glass?
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2025-07-25 10:30:07
corrected NOCLIP
Rene Rechthaler [Blechtaler]
made the following comment.
2025-07-25 10:31:47
idk why, but the top/bottom bars are a bit thinner than the other (the gaps are equal)
Willy Tschager [Holly-Wood]
submitted a new version of the part (all votes reset).
2026-10-13 11:59:54
* Used logo prims
Chris Böhnke [KnightOfTarenta]
posted a vote of Certify
2026-10-13 22:45:02
Thanks! Looks much better now.
Uhh... Is that history line "New Part" still ok?
Uhh... Is that history line "New Part" still ok?
Chris Böhnke [KnightOfTarenta]
edited the part header.
2026-10-13 22:48:21
Header Edits
keywords:
BrickLink 2494pb07, Brickowl 363900, Brickset 82910, Rebrickable 2494pr0003, Set 6554-1
to
Set 6554, Lego 82910, Town Junior, Fire 1994, Blaze Brigade, Fire Fighters, Firemen, Station, BrickLink 2494pb07, Brickowl 363900, Brickset 82910, Rebrickable 2494pr0003
Chris Böhnke [KnightOfTarenta]
cancelled their vote.
2026-10-13 23:01:51
Chris Böhnke [KnightOfTarenta]
made the following comment.
2026-10-13 23:02:11
Is there a reason not to use the full logo prim?
Chris Böhnke [KnightOfTarenta]
posted a vote of Hold
2026-10-13 23:03:07
See above. Will change to certify if there is a good reason.
Chris Böhnke [KnightOfTarenta]
posted a vote of Certify
2026-10-13 23:04:25
My bad. Messed things up.
Willy Tschager [Holly-Wood]
submitted a new version of the part (all votes reset).
2026-10-17 12:21:21
* Used standardized new prim
