Official File parts/2609b.dat
Part Attributes:
File Header:

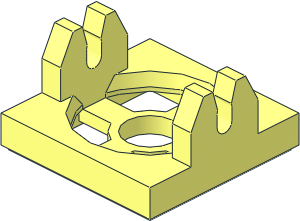

0 Magnet Holder Tile 2 x 2 with Long Arms and Deep Notch
0 Name: 2609b.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Part UPDATE 2025-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Usage of this part with magnet in lower position
0 !HELP 1 16 0 0 0 1 0 0 0 1 0 0 0 1 2609b.dat
0 !HELP 1 16 0 -5.75 0 1 0 0 0 0 -1 0 1 0 2959c01.dat
0 !HELP Usage of this part with magnet in upper position
0 !HELP 1 16 0 0 0 1 0 0 0 1 0 0 0 1 2609b.dat
0 !HELP 1 16 0 -8.75 0 1 0 0 0 0 -1 0 1 0 2959c01.dat
0 BFC CERTIFY CCW
0 !HISTORY 2025-05-08 [KnightOfTarenta] Height fixed
0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2609s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2609s03.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\2609s03.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2022-01-24 20:30:02
2022-02-03 20:10:01
I'm not really happy with the shape of the transition between the hole and sloped area above.
2022-02-03 20:15:01
May I point to this picture:
https://img.bricklink.com/ItemImage/EXTN/15181.png
b and c version have the same high, just the hole for the magnet is placed different.
https://img.bricklink.com/ItemImage/EXTN/15181.png
b and c version have the same high, just the hole for the magnet is placed different.
2022-11-19 10:55:01
2022-11-28 12:50:01
There is version of this one in LDD, 2609. The clips are both thicker and wider. The height is OK.
* HELP incomplete. Please provide ready-to-use code with the magnet. Example:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 2609b.dat
1 16 0 -6.5 0 1 0 0 0 0 -1 0 1 0 2959c01.dat
* Pics of the variants can be found here:
https://rebrickable.com/media/uploads/partnotes/2609a.png
https://img.bricklink.com/ItemImage/EXTN/15181.png
1 16 0 0 0 1 0 0 0 1 0 0 0 1 2609b.dat
1 16 0 -6.5 0 1 0 0 0 0 -1 0 1 0 2959c01.dat
* Pics of the variants can be found here:
https://rebrickable.com/media/uploads/partnotes/2609a.png
https://img.bricklink.com/ItemImage/EXTN/15181.png
changed help lines.
2025-03-21 09:50:21
* We are getting nowhere with these three variants. I'd like to see a table here at the PT:
2609a: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/44959
2609b: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/24290
2609c: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/24291
So that all three variants can be adjusted accordingly.
* The clip in a should be subbed as well
* @Rene, you cannot just submit an updated magnet:
https://library.ldraw.org/parts/44957
without obsoleting all the old parts of the magnet.
2609a: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/44959
2609b: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/24290
2609c: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/24291
So that all three variants can be adjusted accordingly.
* The clip in a should be subbed as well
* @Rene, you cannot just submit an updated magnet:
https://library.ldraw.org/parts/44957
without obsoleting all the old parts of the magnet.
2025-03-24 18:47:11
Here are the measured dimensions of this version:
0 !LPE DISTANCE 69 -20 8 0 -20 -5.75
0 !LPE DISTANCE 68 -20 8 -3 -20 -14.5 -3
0 !LPE DISTANCE 272 -20 0 9 -20 0 9
0 !LPE DISTANCE 4 -20 -6.25 8 -20 0 8
0 !LPE DISTANCE 22 -20 -14.5 2.25 -20 -14.5 -2.25
0 !LPE DISTANCE 25 -20 -14.5 1.25 -20 -14.5 -1.25
0 !LPE DISTANCE 27 -20 0 9 -16 0 9
Center of Top Hole:
0 !LPE DISTANCE 69 -20 8 0 -20 -8.75
Remaining geometry can be reconstructed with these I think.
Please note, that the hole on this one is actually elongated (current geometry is a bit more complicated than it needs to be), having a bottom and top center. It looks a bit strange on photos, but the magnet can slide in between those 2 center holes, confirming vertical edges there. It should be possible to use 1-16 prims to connect to the top of the part without compromiting geometry too much.
The arm should use the same sub-file as 30159 and is clearly different than the remaining 3 parts of this family.
0 !LPE DISTANCE 69 -20 8 0 -20 -5.75
0 !LPE DISTANCE 68 -20 8 -3 -20 -14.5 -3
0 !LPE DISTANCE 272 -20 0 9 -20 0 9
0 !LPE DISTANCE 4 -20 -6.25 8 -20 0 8
0 !LPE DISTANCE 22 -20 -14.5 2.25 -20 -14.5 -2.25
0 !LPE DISTANCE 25 -20 -14.5 1.25 -20 -14.5 -1.25
0 !LPE DISTANCE 27 -20 0 9 -16 0 9
Center of Top Hole:
0 !LPE DISTANCE 69 -20 8 0 -20 -8.75
Remaining geometry can be reconstructed with these I think.
Please note, that the hole on this one is actually elongated (current geometry is a bit more complicated than it needs to be), having a bottom and top center. It looks a bit strange on photos, but the magnet can slide in between those 2 center holes, confirming vertical edges there. It should be possible to use 1-16 prims to connect to the top of the part without compromiting geometry too much.
The arm should use the same sub-file as 30159 and is clearly different than the remaining 3 parts of this family.
2025-03-24 19:10:58
Small correction (Thickness is 5 LDU not 4):
0 !LPE DISTANCE 27 -20 0 9 -15 0 9
0 !LPE DISTANCE 27 -20 0 9 -15 0 9
Fixed geometry.
2025-05-13 10:18:39
2025-05-18 06:27:54
2025-06-21 07:21:21
2025-06-26 01:28:18
Release 2025-06
