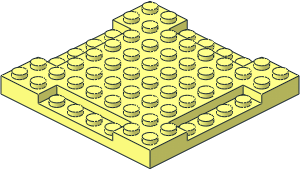

Plate 8 x 8 x 0.667 with Cutouts and Recessed Studs

File Header:

0 Plate  8 x  8 x  0.667 with Cutouts and Recessed Studs
0 Name: 2628.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2628s01.dat
1 16 0 0 60 1 0 0 0 1 0 0 0 -1 s\74166s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\2628s01.dat
1 16 0 0 -60 1 0 0 0 1 0 0 0 1 s\74166s02.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2628s02.dat

1 16 60 0 0 0 0 -1 0 1 0 -1 0 0 s\74166s02.dat
