Official File parts/2629.dat
Part Attributes:
File Header:

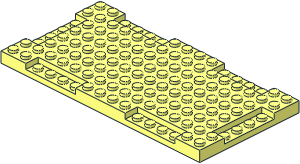

0 Plate 8 x 16 x 0.667 with Cutouts and Recessed Studs
0 Name: 2629.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06
Show contents
1 16 -80 0 0 1 0 0 0 1 0 0 0 1 s\2628s01.dat
1 16 -80 0 60 1 0 0 0 1 0 0 0 -1 s\74166s02.dat
1 16 -80 0 0 1 0 0 0 1 0 0 0 -1 s\2628s01.dat
1 16 -80 0 -60 1 0 0 0 1 0 0 0 1 s\74166s02.dat
1 16 80 0 0 -1 0 0 0 1 0 0 0 1 s\2628s01.dat
1 16 80 0 60 1 0 0 0 1 0 0 0 -1 s\74166s02.dat
1 16 80 0 0 -1 0 0 0 1 0 0 0 -1 s\2628s01.dat
1 16 80 0 -60 1 0 0 0 1 0 0 0 1 s\74166s02.dat
1 16 -80 0 0 1 0 0 0 1 0 0 0 1 s\2628s02.dat
1 16 80 0 0 -1 0 0 0 1 0 0 0 1 s\2628s02.dat
0 // Bottom and Inside
1 16 20 4 20 1 0 0 0 -3 0 0 0 1 stud4.dat
1 16 20 4 40 1 0 0 0 -3 0 0 0 1 filletr0n.dat
1 16 20 4 60 1 0 0 0 -3 0 0 0 1 stud4.dat
1 16 -20 4 20 1 0 0 0 -3 0 0 0 1 stud4.dat
1 16 -20 4 40 1 0 0 0 -3 0 0 0 1 filletr0n.dat
1 16 -20 4 60 1 0 0 0 -3 0 0 0 1 stud4.dat
1 16 20 4 -60 1 0 0 0 -3 0 0 0 1 stud4.dat
1 16 20 4 -40 1 0 0 0 -3 0 0 0 1 filletr0n.dat
1 16 20 4 -20 1 0 0 0 -3 0 0 0 1 stud4.dat
1 16 -20 4 -60 1 0 0 0 -3 0 0 0 1 stud4.dat
1 16 -20 4 -40 1 0 0 0 -3 0 0 0 1 filletr0n.dat
1 16 -20 4 -20 1 0 0 0 -3 0 0 0 1 stud4.dat
1 16 20 4 0 1 0 0 0 -3 0 0 0 1 filletr0n.dat
1 16 -20 4 0 1 0 0 0 -3 0 0 0 1 filletr0n.dat
1 16 0 4 -20 0 0 1 0 -3 0 -1 0 0 filletr0n.dat
1 16 0 4 -40 0 0 1 0 -3 0 -1 0 0 stud4f4n.dat
1 16 0 4 0 0 0 1 0 -3 0 -1 0 0 stud4f4n.dat
1 16 0 4 40 0 0 1 0 -3 0 -1 0 0 stud4f4n.dat
1 16 0 4 20 0 0 1 0 -3 0 -1 0 0 filletr0n.dat
1 16 0 4 0 0 0 6 0 1 0 -6 0 0 4-4edge.dat
1 16 0 4 -40 0 0 6 0 1 0 -6 0 0 4-4edge.dat
1 16 0 4 40 0 0 6 0 1 0 -6 0 0 4-4edge.dat
1 16 0 4 60 0 0 1 0 -3 0 1 0 0 filletr1n.dat
1 16 0 4 -60 0 0 1 0 -3 0 -1 0 0 filletr1n.dat
4 16 -36 4 56 -36 4 76 36 4 76 36 4 56
4 16 -36 12 76 36 12 76 36 4 76 -36 4 76
4 16 36 12 76 -36 12 76 -39 16 76 39 16 76
4 16 -36 4 -56 -36 4 56 36 4 56 36 4 -56
4 16 -36 4 -56 36 4 -56 36 4 -76 -36 4 -76
4 16 -36 12 -76 -36 4 -76 36 4 -76 36 12 -76
4 16 -36 12 -76 36 12 -76 39 16 -76 -39 16 -76
3 16 -39 16 -76 -39 12 -76 -36 12 -76
3 16 39 16 -76 36 12 -76 39 12 -76
3 16 39 12 76 36 12 76 39 16 76
3 16 -39 12 76 -39 16 76 -36 12 76
2 24 -36 4 76 36 4 76
2 24 -1 4 76 -1 16 76
2 24 1 16 76 1 4 76
2 24 1 16 76 39 16 76
2 24 -1 16 76 -39 16 76
2 24 -36 4 -76 36 4 -76
2 24 -1 4 -76 -1 16 -76
2 24 1 16 -76 1 4 -76
2 24 1 16 -76 39 16 -76
2 24 -1 16 -76 -39 16 -76
3 16 -39 16 -76 -1 16 -76 -160 16 -80
3 16 -1 16 76 -39 16 76 -160 16 80
3 16 39 16 76 1 16 76 160 16 80
3 16 1 16 -76 39 16 -76 160 16 -80
4 16 -160 16 -80 -1 16 -76 1 16 -76 160 16 -80
4 16 160 16 80 1 16 76 -1 16 76 -160 16 80
1 16 0 16 0 160 0 0 0 1 0 0 0 80 recte4.dat
0 // Outside and Top
3 16 -160 16 80 -120 8 80 -40 8 80
3 16 -120 8 -80 -160 16 -80 -40 8 -80
3 16 160 16 -80 120 8 -80 40 8 -80
3 16 120 8 80 160 16 80 40 8 80
4 16 -40 8 80 40 8 80 160 16 80 -160 16 80
4 16 -40 8 80 -40 0 80 40 0 80 40 8 80
4 16 40 0 80 -40 0 80 -40 0 60 40 0 60
4 16 40 0 -60 40 0 60 -40 0 60 -40 0 -60
4 16 40 0 -80 40 0 -60 -40 0 -60 -40 0 -80
4 16 40 0 -80 -40 0 -80 -40 8 -80 40 8 -80
4 16 160 16 -80 40 8 -80 -40 8 -80 -160 16 -80
2 24 -40 0 -80 40 0 -80
2 24 -40 0 80 40 0 80
1 16 -80 0 0 1 0 0 0 1 0 0 0 1 stug-4x4.dat
1 16 -130 0 0 1 0 0 0 1 0 0 0 1 stug-4x1.dat
1 16 -80 0 -50 1 0 0 0 1 0 0 0 1 stug-1x4.dat
1 16 -80 0 50 1 0 0 0 1 0 0 0 1 stug-1x4.dat
1 16 -140 0 60 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 -140 0 -60 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 -150 8 0 1 0 0 0 1 0 0 0 1 stug-4x1.dat
1 16 -80 8 -70 1 0 0 0 1 0 0 0 1 stug-1x4.dat
1 16 -80 8 70 1 0 0 0 1 0 0 0 1 stug-1x4.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 stug-4x4.dat
1 16 0 0 -40 1 0 0 0 1 0 0 0 1 stug-4x4.dat
1 16 80 0 0 1 0 0 0 1 0 0 0 1 stug-4x4.dat
1 16 130 0 0 1 0 0 0 1 0 0 0 1 stug-4x1.dat
1 16 80 0 -50 1 0 0 0 1 0 0 0 1 stug-1x4.dat
1 16 80 0 50 1 0 0 0 1 0 0 0 1 stug-1x4.dat
1 16 140 0 60 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 140 0 -60 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 150 8 0 1 0 0 0 1 0 0 0 1 stug-4x1.dat
1 16 80 8 -70 1 0 0 0 1 0 0 0 1 stug-1x4.dat
1 16 80 8 70 1 0 0 0 1 0 0 0 1 stug-1x4.dat
