Official File parts/27063.dat
Part Attributes:
File Header:

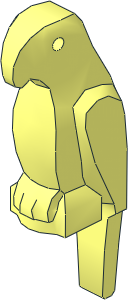

0 Animal Bird Parrot with Large Beak
0 Name: 27063.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2021-03-19 {LEGO/Unity Microgame} Original part shape
0 !HISTORY 2022-01-18 [ejboer] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\27063s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\27063s01.dat
0 BFC INVERTNEXT
1 16 0 -4 0 6 0 0 0 4 0 0 0 6 4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 -32 0 4 0 0 0 28 0 0 0 4 4-4cylc.dat
1 16 0 -4 0 2 0 0 0 -1 0 0 0 2 4-4ring2.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Patterns could maybe be done with texture mapping? But no idea how to do this for these kind of non-flat files, besides creating a texture anyway.
* Have to be edges:
2 5 -3.276 -39.044 7.501 -4.398 -30.818 11.565
2 5 -6.732 -30.256 10.032 -7.14 -31.776 6.403
2 5 -9.75 -30.358 5.751 -9.752 -27.539 9.641
2 5 -6.327 -25.544 -6.331 -6.381 -20.659 -6.499
2 5 -5.851 -4.124 5.637 -6.871 -5.755 5.5
2 5 -3.366 -33.999 -5.241 0 -33.821 -5.801
2 5 -7.379 .956 13.473 -9.635 -15.538 11.373
2 5 -3.119 -38.511 -10.789 -3.013 -36.954 -7.892
2 5 -3.679 -49.384 1.79 -3.098 -46.175 4.567
2 5 -4.641 -24.31 13.948 -6.732 -30.256 10.032
2 5 -6.861 -15.494 .62 -5.846 -10.807 1.987
2 5 -7.379 .956 13.473 -7.338 .997 10.312
2 5 -5.339 -8.527 -2.882 -5.646 -8.388 3.07
2 5 -3.269 -36.109 -7.063 -3.013 -36.954 -7.892
2 5 -9.752 -27.539 9.641 -9.765 -24.048 10.511
2 5 -5.846 -10.807 1.987 -5.646 -8.388 3.07
2 5 -7.14 -31.776 6.403 -6.578 -32.017 1.969
2 5 -6.636 -29.497 -1.689 -6.578 -32.017 1.969
2 5 -3.777 -49.826 -7.194 -4.264 -49.943 -2.996
2 5 -5.646 -8.388 3.07 -8.115 -5.732 5.344
2 5 -4.398 -30.818 11.565 -4.641 -24.31 13.948
2 5 -9.635 -15.538 11.373 -9.765 -24.048 10.511
2 5 -6.871 -5.755 5.5 -8.115 -5.732 5.344
2 5 -5.24 -30.31 -5.713 -3.366 -33.999 -5.241
2 5 -3.136 -48.259 -10.69 -3.777 -49.826 -7.194
2 5 -6.327 -25.544 -6.331 -5.24 -30.31 -5.713
2 5 -4.264 -49.943 -2.996 -3.679 -49.384 1.79
2 5 -9.673 -15.718 1.874 -7.993 -2.162 9.199
2 5 -3.098 -46.175 4.567 -3.276 -39.044 7.501
* Have to be flipped:
3 4 -4.264 -49.943 -2.996 -5.419 -48.71 -3.314 -5.007 -48.472 -6.85
3 4 -5.007 -48.472 -6.85 -3.777 -49.826 -7.194 -4.264 -49.943 -2.996
3 4 -3.098 -46.175 4.567 -3.276 -39.044 7.501 -5.547 -38.365 5.123
3 4 -5.547 -38.365 5.123 -6.135 -45.09 2.558 -3.098 -46.175 4.567
* Has to be fixed:
3 14 -5.846 -10.807 1.987 -6.861 -15.494 .62 -5.646 -8.388 3.07
2 5 -3.276 -39.044 7.501 -4.398 -30.818 11.565
2 5 -6.732 -30.256 10.032 -7.14 -31.776 6.403
2 5 -9.75 -30.358 5.751 -9.752 -27.539 9.641
2 5 -6.327 -25.544 -6.331 -6.381 -20.659 -6.499
2 5 -5.851 -4.124 5.637 -6.871 -5.755 5.5
2 5 -3.366 -33.999 -5.241 0 -33.821 -5.801
2 5 -7.379 .956 13.473 -9.635 -15.538 11.373
2 5 -3.119 -38.511 -10.789 -3.013 -36.954 -7.892
2 5 -3.679 -49.384 1.79 -3.098 -46.175 4.567
2 5 -4.641 -24.31 13.948 -6.732 -30.256 10.032
2 5 -6.861 -15.494 .62 -5.846 -10.807 1.987
2 5 -7.379 .956 13.473 -7.338 .997 10.312
2 5 -5.339 -8.527 -2.882 -5.646 -8.388 3.07
2 5 -3.269 -36.109 -7.063 -3.013 -36.954 -7.892
2 5 -9.752 -27.539 9.641 -9.765 -24.048 10.511
2 5 -5.846 -10.807 1.987 -5.646 -8.388 3.07
2 5 -7.14 -31.776 6.403 -6.578 -32.017 1.969
2 5 -6.636 -29.497 -1.689 -6.578 -32.017 1.969
2 5 -3.777 -49.826 -7.194 -4.264 -49.943 -2.996
2 5 -5.646 -8.388 3.07 -8.115 -5.732 5.344
2 5 -4.398 -30.818 11.565 -4.641 -24.31 13.948
2 5 -9.635 -15.538 11.373 -9.765 -24.048 10.511
2 5 -6.871 -5.755 5.5 -8.115 -5.732 5.344
2 5 -5.24 -30.31 -5.713 -3.366 -33.999 -5.241
2 5 -3.136 -48.259 -10.69 -3.777 -49.826 -7.194
2 5 -6.327 -25.544 -6.331 -5.24 -30.31 -5.713
2 5 -4.264 -49.943 -2.996 -3.679 -49.384 1.79
2 5 -9.673 -15.718 1.874 -7.993 -2.162 9.199
2 5 -3.098 -46.175 4.567 -3.276 -39.044 7.501
* Have to be flipped:
3 4 -4.264 -49.943 -2.996 -5.419 -48.71 -3.314 -5.007 -48.472 -6.85
3 4 -5.007 -48.472 -6.85 -3.777 -49.826 -7.194 -4.264 -49.943 -2.996
3 4 -3.098 -46.175 4.567 -3.276 -39.044 7.501 -5.547 -38.365 5.123
3 4 -5.547 -38.365 5.123 -6.135 -45.09 2.558 -3.098 -46.175 4.567
* Has to be fixed:
3 14 -5.846 -10.807 1.987 -6.861 -15.494 .62 -5.646 -8.388 3.07
2023-09-21 17:51:27
Made updates in subfile
2023-09-21 18:55:24
As for blended pattern, check https://library.ldraw.org/official/1443 as an example.
2023-09-22 18:51:13
2024-06-23 16:24:19
What about using a stud4oda to have a connection there by default?
Rest can be done with 1-8tndis, like:
1 10 0 -4 0 1 0 0 0 -1 0 0 0 1 stud4oda.dat
1 10 0 0 0 8 0 0 0 4 0 0 0 8 1-8tndis.dat
1 10 0 0 0 8 0 0 0 4 0 0 0 -8 1-8tndis.dat
Rest can be done with 1-8tndis, like:
1 10 0 -4 0 1 0 0 0 -1 0 0 0 1 stud4oda.dat
1 10 0 0 0 8 0 0 0 4 0 0 0 8 1-8tndis.dat
1 10 0 0 0 8 0 0 0 4 0 0 0 -8 1-8tndis.dat
2024-06-24 14:12:58
2024-06-25 05:00:05
2024-06-30 00:13:15
Release 2024-05
