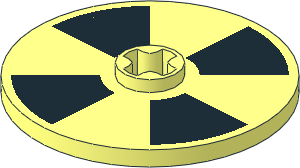

Technic Disc 3 x 3 with Axlehole with 4 Black Sections on One Side and 8 on Reverse Pattern

File Header:

0 Technic Disc  3 x  3 with Axlehole with 4 Black Sections on One Side and 8 on Reverse Pattern
0 Name: 2723p05.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Part UPDATE 2023-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS BrickLink 2723pb002, control, Rebrickable 2723pr0005, Set 1090
0 !KEYWORDS Set 1092, Set 9700

0 !HISTORY 2023-01-01 [MagFors] Reworked pattern subfile
0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03
