File Detail parts/27262.dat

Official File parts/27262.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

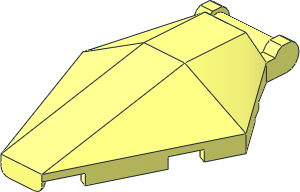

Windscreen 6 x 4 x 1 Pentagonal with Handle

File Header:

0 Windscreen  6 x  4 x  1 Pentagonal with Handle
0 Name: 27262.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-11-20 [Holly-Wood] Flipped triangles
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\27262s01.dat

3 16 -10 6 -110 -10 -10 -40 -40 6 -40
3 16 10 -10 -40 10 6 -110 40 6 -40
4 16 -10 -10 -40 -10 6 -110 10 6 -110 10 -10 -40

1 16 0 -10 -25 10 0 0 0 1 0 0 0 15 rect.dat

2 24 40 6 -40 10 -10 -40
2 24 -10 -10 -40 -40 6 -40
2 24 -10 -10 -40 -10 6 -110
2 24 10 6 -110 10 -10 -40

3 16 10 -10 -10 10 -10 -40 40 6 -40
3 16 40 6 -40 20 -2 -10 10 -10 -10
5 24 10 -10 -10 40 6 -40 10 -10 -40 20 -2 -10
3 16 -10 -10 -10 -20 -2 -10 -40 6 -40
3 16 -40 6 -40 -10 -10 -40 -10 -10 -10
5 24 -40 6 -40 -10 -10 -10 -10 -10 -40 -20 -2 -10

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2017-09-05 10:25:00

upon request from the forum, made from photographs, handle is flattened in real part

still missing outside condlines

Philippe Hurbain [Philo]

made the following comment.

2017-09-05 11:40:00

You should merge the quads on back top. "t-junctions" across a sharp edge never causes problems.

Gerald Lasser [GeraldLasser]

made the following comment.

2017-09-05 12:10:00

I was misreading your comment, and thought, where did I miss a TJ?

But yes, I can do that.

Do you have recommendations on the condlines? i.e. the controlpoints? I tired to add them with CPs in line, then LDPE complains, LDView looks nice, but still they do not appear as they should...

Do you know any other part of similar surface?

Philippe Hurbain [Philo]

made the following comment.

2017-09-05 14:20:00

Yeah, twisted surfaces don't play well with condlines. For a similar part (with similar problems!), see 43721.dat
Could be interesting to split in the middle to minimize the effect.
See also this 12 years old discussion (looks like my memory is not that bad after all!) http://news.lugnet.com/cad/dat/parts/?n=5652 and more precisely http://news.lugnet.com/cad/dat/parts/?n=5668

Philippe Hurbain [Philo]

made the following comment.

2017-09-05 14:20:00

...and btw back of twisted surface misses edge lines ;)

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2017-09-25 20:50:00

Included cond lines for the outer surface, let me know what you think.

I will then add them in the same way to the inside

Existing certification-votes were deleted.

Magnus Forsberg [MagFors]

made the following comment.

2017-09-25 21:30:00

I think it would even be OK with two big triangles and a single cond-line.
3 16 -10 -10 -40 -10 -10 -10 -40 6 -40
3 16 -40 6 -40 -10 -10 -10 -20 -2 -10
5 24 -40 6 -40 -10 -10 -10 -20 -2 -10 -10 -10 -40

Philippe Hurbain [Philo]

made the following comment.

2017-09-29 11:55:00

Heartfully agree with Magnus' solution. Smoothing visually as good, no condlines artifacts.

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2017-10-01 21:00:01

Changed outer condlines, but arranged the triangles the other way round, looks more like the real thing

Existing certification-votes were deleted.

Magnus Forsberg [MagFors]

posted a vote of Certify.

2017-10-21 17:15:01

seriously warped...

Max Martin Richter [MMR1988]

posted a vote of Certify.

2017-12-01 16:15:00

Ulrich Röder [UR]

posted a vote of Certify.

2020-10-29 10:15:01

Orion Pobursky [OrionP]

posted a vote of Hold.

2022-10-28 02:10:01

The 2 sloped top surfaces on either side nearest to the handle are supposed to be coplaner not concave like that are in this part,

Gerald Lasser [GeraldLasser]

made the following comment.

2023-02-23 10:05:51

@Orion, do you mean those:
3 16 10 -10 -40 40 6 -40 20 -2 -10
3 16 20 -2 -10 10 -10 -10 10 -10 -40

They can'be flat. It is actually like it looks I just checked the real part. it twists from a 38 deg to a 28 deg angle

I could subdivide those triangles, but that would make some condlines appear through the surface.

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2023-05-12 06:45:15
