File Detail parts/27925ph0.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/27925ph0.dat

Part Attributes: Base Part: 27925.dat

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

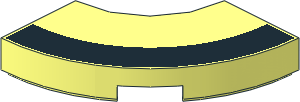

Tile 2 x 2 Corner Round with Black Stripe Pattern

File Header:

0 Tile  2 x  2 Corner Round with Black Stripe Pattern
0 Name: 27925ph0.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Part UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Bricklink 27925pb010, LegoID 6410654, macaroni
0 !KEYWORDS Rebrickable 27925pr0013, Set 76405

0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\27925s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\27925ph0s01.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\27925ph0s01.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Rene Rechthaler [Blechtaler]

initially submitted the part.

2022-09-16 18:10:01

for the new Hogwarts Express

Rene Rechthaler [Blechtaler]

submitted a new version of the part.

2022-09-16 18:20:01

forgot BL number 27925pb010

Orion Pobursky [OrionP]

posted a vote of Hold.

2022-09-16 18:50:01

Hold pending number correction

[PTadmin]

renamed the part.

2022-09-16 19:50:04

"parts/27925h0.dat" to "parts/27925ph0.dat."

Orion Pobursky [OrionP]

made the following comment.

2022-09-16 19:55:01

Magnus Forsberg [MagFors]

posted a vote of Hold.

2022-09-25 08:10:02

Missing the word Pattern.
Why a dimension of the ring in the description?

It would be better to not use a aring, causing overlapping surfaces i hi-res mode.
1 12 -10 0 10 0 0 20 0 1 0 -20 0 0 1-4ndis.dat
1 12 -10 0 10 0 0 32 0 1 0 -32 0 0 48/1-8chrd.dat

Rene Rechthaler [Blechtaler]

submitted a new version of the part.

2022-09-25 09:00:01

-added Pattern
-its not a half-width rim, its a 0,4 wide one (1 Plate)
-changed to 1-4ndis+48\1-8chrd.dat+connecting quads

Existing certification-votes were deleted.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2022-09-25 15:10:01

The old code should be removed.

The word Pattern has to be at the end of the description:
Tile 2 x 2 Corner Round with Black Edge Border Pattern
or
Tile 2 x 2 Corner Round with Black Stripe Pattern

Rene Rechthaler [Blechtaler]

submitted a new version of the part.

2022-09-25 15:40:01

-deleted old code
-changed title to Pattern on end

Existing certification-votes were deleted.

Max Martin Richter [MMR1988]

made the following comment.

2024-01-09 21:31:27

While the part is fine I struggle with the width qualifier in the description, In my eyes it is not needed there. I would prefer Magnus first suggestion.

Rene Rechthaler [Blechtaler]

made the following comment.

2024-02-09 20:47:09

should I use the new subpart?

Magnus Forsberg [MagFors]

made the following comment.

2024-02-09 21:58:03

I would say no.
What you're trying to model is the beveled edge that isn't modeled on ldraw parts.
This pattern should go all the way to the edge.

Rene Rechthaler [Blechtaler]

made the following comment.

2024-02-09 22:12:35

but that small rim is in both other prints and many other patterns too...

Orion Pobursky [OrionP]

made the following comment.

2024-02-09 22:50:02

I'm not a fan of the description but I don't have any suggestions on what to change to.

Magnus Forsberg [MagFors]

made the following comment.

2024-02-10 10:07:38

I don't know what other designs you are thinking of. I'm expressing my personal opinion here.
If I look at the model where this part is used, it is clear that the idea here is to get a continous line, 8 ldu wide, along the entire locomotive. And I think that's how we should model this pattern, 8 ldu think, all the way to the "perfect" edge of this part.

Rene Rechthaler [Blechtaler]

made the following comment.

2024-02-10 10:29:18

for example, this part also has a small rim around...
https://library.ldraw.org/tracker/32508
(and its also for a sideways strip of plates)

Rene Rechthaler [Blechtaler]

submitted a new version of the part.

2024-03-08 15:43:37

with the new subpart

Willy Tschager [Holly-Wood]

edited the part header.

2024-04-24 12:40:27

Header Edits

keywords:
Bricklink 27925pb010, LegoID 6410654, macaroni, Set 76405
to
Bricklink 27925pb010, LegoID 6410654, macaroni, Set 76405, Rebrickable 27925pr0013, Brickowl 902073

Comment:
Added keywords

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2024-04-24 12:52:44

The hidden code has to be removed. Actually you should use it in the sub instead of the bordered pattern

Orion Pobursky [OrionP]

made the following comment.

2024-05-14 19:58:10

Looks like no rim on the outer curved edge but rim on left and right straight ends

Rene Rechthaler [Blechtaler]

submitted a new version of the part.

2024-05-26 16:48:56
