File Detail parts/2859c00.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/2859c00.dat

Part Attributes: Base Part: 2859.dat

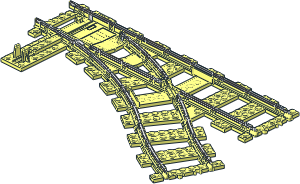

~Train Track 9V Switch Right - Plastic Part with Underside Cover Plate and Metal Elements

File Header:

0 ~Train Track  9V Switch Right - Plastic Part with Underside Cover Plate and Metal Elements
0 Name: 2859c00.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Shortcut UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2012-09-05 [KROACH] Changed rect-4.dat to quads
0 !HISTORY 2012-09-05 [KROACH] Made BFC compliant
0 !HISTORY 2012-09-07 [KROACH] Fix the mirror problem
0 !HISTORY 2015-01-22 [Steffen] swapped s\2865s04l.dat and s\2865s04r.dat
0 !HISTORY 2019-06-02 [Steffen] used s\2865s04.dat
0 !HISTORY 2025-02-06 [MMR1988] Rewritten from scratch, original by KROACH
0 !HISTORY 2025-08-23 [MagFors] Reused more parts
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 2859.dat
1 16 -200 0 0 1 0 0 0 1 0 0 0 1 2863.dat

1 494 -318.25 0 50.5 -1 0 0 0 1 0 0 0 -1 u9309.dat
1 494 318.25 0 50.5 1 0 0 0 1 0 0 0 1 u9309.dat
1 494 318.25 0 -50.5 1 0 0 0 1 0 0 0 1 u9309.dat
1 494 0 0 50.5 -1 0 0 0 1 0 0 0 -1 u9627.dat
1 494 -60.5 0 -50.5 1 0 0 0 1 0 0 0 1 u9628.dat
1 494 -320 0 0 1 0 0 0 1 0 0 0 1 u9635.dat
1 494 -320 0 0 1 0 0 0 1 0 0 0 1 u9097.dat
1 494 -320 0 0 1 0 0 0 1 0 0 0 1 u9098.dat
1 494 -320 0 0 1 0 0 0 1 0 0 0 1 u9099.dat

1 16 69 -5.75 -46.125 1 0 0 0 1 0 0 0 1 u9631.dat
1 16 73.542615 -4.093292 -51.757507 1 0 0 0 1 0 0 0 1 u9634.dat

1 494 -195.75 3 20.5 1 0 0 0 1 0 0 0 1 u9171.dat
1 494 -195.75 3 -22.5 1 0 0 0 1 0 0 0 1 u9171.dat
1 494 -202.482023 -8 -57.61933 .988691 0 .149967 0 1 0 -.149967 0 .988691 u9172.dat
1 494 -262.25 3 48.375 1 0 0 0 1 0 0 0 1 u9173.dat
1 494 -158.25 3 -48.375 -1 0 0 0 1 0 0 0 -1 u9173.dat
1 494 -264.997356 3 -50.405754 -.997289 0 -.073586 0 1 0 .073586 0 -.997289 u9173.dat
1 494 -152.367381 3 31.636983 .980237 0 .197828 0 1 0 -.197828 0 .980237 u9173.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Steffen [Steffen]

initially submitted the part.

2012-09-08 19:55:07

subfiled

Steffen [Steffen]

submitted a new version of the part.

2012-09-08 20:30:16

changed origin to match the other official train points

Steffen [Steffen]

posted a vote of Hold.

2012-09-08 21:40:02

Admin, could you please convert this from a subpart to a ~part ?

Steffen [Steffen]

posted a vote of Hold.

2012-09-08 23:10:02

this edge is too short
2 4 -300 0 -60 -290 0 -60.5

[PTadmin]

renamed the part.

2012-09-10 10:25:17

"parts/s/2859s00.dat" to "parts/2859."

[PTadmin]

renamed the part.

2012-09-10 10:27:37

"parts/2859" to "parts/2859.dat."

[PTadmin]

edited the part header.

2012-09-10 18:45:05

[PTadmin]

renamed the part.

2012-09-11 19:50:31

"parts/2859.dat" to "parts/2859c00.dat."

Steffen [Steffen]

submitted a new version of the part.

2012-09-16 10:05:04

- removed vertical flipping of bottom plate
- fixed BFC errors

Existing certification-votes were deleted.

Steffen [Steffen]

submitted a new version of the part.

2012-10-14 02:55:02

update reference to s/2859s05.dat

Steffen [Steffen]

submitted a new version of the part.

2015-01-22 16:55:00

swapped 2865s04l.dat and 2865s04r.dat

Steffen [Steffen]

posted a vote of Hold.

2015-01-22 17:00:01

as this is a shortcut, it may only consist of parts, which then may use s\ files. restructuring is needed.

Steffen [Steffen]

made the following comment.

2015-01-22 17:40:01

downgrading to novote

Question: is the GEOMETRY of this part correct? i.e., the angle of the curved side track? does it end at the correct position and angle?

Steffen [Steffen]

submitted a new version of the part.

2019-06-01 23:30:01

used s\2865s04.dat

Existing certification-votes were deleted.

Joshua Delahunty [dulcaoin]

made the following comment.

2019-10-06 15:25:01

Each of the conductors in this part should be turned into a subpart. While this will be a lot of work, they are separate items, and -- the good news -- several are used more than once in the model; one straight conductor twice and another three times.

Steffen [Steffen]

made the following comment.

2019-10-06 16:25:01

I think different here.
We should release this part once its basic geometry is correct (connection points to other track parts).
Reasoning: the part is heavily complex, and striving for 100% perfection here will make it sit around for even more years.
I think we should release a geometrically correct version (which may have imperfections still), and do the remaining work in a subsequent iteration.
Currently, people cannot really play with this part (as an official part),
instead have to use this unofficial one,
and this situation is already like that for years. After such a long time asking for even more work seems not a good way to go for me.
There seems not really to be time available for people to take care of this part, so we should maximize the benefit whilst at the same time minimize the effort.
This to me means: check the basic fundamental geometry and release it in a first iteration.

Joshua Delahunty [dulcaoin]

made the following comment.

2019-10-07 13:25:01

It looks like you're the current primary author of the part at this point, so it's of course up to you how much time you want to put in before trying to get it to official status.

Given the stature of the part, I'm sure you'll get your certify votes.

Since I'm the "LDRAW numbers guy" since the start, I always vote (mostly) based on proper numbering, so I'll of course abstain from voting until a later iteration is available.

For what it's worth, I noticed after commenting that the straight track uses subparts for its metal portions; they're more metal primitives, but that element could be turned into proper numbering with the rails as separate parts in a matter of minutes, so some of the groundwork for this has been laid.

Steffen [Steffen]

made the following comment.

2019-10-12 12:05:01

no, the primary author is Kevin.
I am just interested in getting this part out in a 1st iteration, even if necessary with a "Needs Work" note if it has imperfections

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2021-04-03 07:10:01

Orion Pobursky [OrionP]

posted a vote of Hold.

2024-03-09 17:24:08

Not CC_BY_4

Orion Pobursky [OrionP]

cancelled their vote.

2024-05-11 16:36:48

Max Martin Richter [MMR1988]

submitted a new version of the part.

2025-02-08 21:06:13

Orion Pobursky [OrionP]

posted a vote of Hold.

2025-02-08 21:52:05

References missing parts.

Rene Rechthaler [Blechtaler]

made the following comment.

2025-02-08 22:02:56

are the links wrong or are the parts the wrong type (part/subpart)?
all other "components" are parts, these are subparts

Max Martin Richter [MMR1988]

made the following comment.

2025-02-08 22:53:31

Affected (Sub)parts were moved to right folder and the type was changed.

Orion Pobursky [OrionP]

cancelled their vote.

2025-02-08 22:59:31

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-02-20 14:14:34

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-02-20 22:49:12

Magnus Forsberg [MagFors]

submitted a new version of the part.

2025-07-28 15:55:43

Adapted

Magnus Forsberg [MagFors]

made the following comment.

2025-07-28 17:00:48

The next level is also wrong now, but I want to question its existence.
c03 and c04 have never been official. I want to delete them. Or re-number.
c01 and c02 should be moved to 75541 and 75542, but the problem is that those numbers might include the lever. Do they?
A solution might be to move 2859c01 to 75541-f1, and 2859c02 to 75541-f2, without lever 2866.
And then make 75541c01-f1 and 75541c01-f2, with lever 2866.

Orion Pobursky [OrionP]

made the following comment.

2025-07-28 17:37:29

I'm out of the loop on this so I support any admin decision you make.

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2025-08-21 17:10:43

Gerald Lasser [GeraldLasser]

cancelled their vote.

2025-08-21 19:54:34

How are those kept in place?

1 494 -158.25 3 -48.375 -1 0 0 0 1 0 0 0 -1 u9173.dat
1 494 -152.367381 3 31.636983 1 0 0 0 1 0 0 0 1 u9175.dat

These
1 494 -262.25 3 48.375 1 0 0 0 1 0 0 0 1 u9173.dat
1 494 -264.997356 3 -50.405754 1 0 0 0 1 0 0 0 1 u9174.dat

How to solve this intersection
1 16 -200 0 0 1 0 0 0 1 0 0 0 1 2863.dat
1 494 -158.25 3 -48.375 -1 0 0 0 1 0 0 0 -1 u9173.dat

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2025-08-21 21:40:52

I drilled one open :-)

These
1 494 -158.25 3 -48.375 -1 0 0 0 1 0 0 0 -1 u9173.dat
1 494 -152.367381 3 31.636983 1 0 0 0 1 0 0 0 1 u9175.dat
are kept in place by the u9171.dat as the are actually holding them towards the top (different order than here) but that's not really an issue...

How to solve this intersection...
u9173 actually has a slight cutout which is not modeled in our part

Gerald Lasser [GeraldLasser]

made the following comment.

2025-08-21 22:09:57

I meant 2863.dat

Submitted an update

Gerald Lasser [GeraldLasser]

made the following comment.

2025-08-21 22:13:06

Why is this part there anyway?
1 494 -202.482023 -8 -57.61933 1 0 0 0 1 0 0 0 1 u9172.dat

This metal piece is only connected to rail, nowhere else.
I can only imagine that this is to protect the plastic from the metal wheels

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-08-22 02:58:28

Magnus Forsberg [MagFors]

submitted a new version of the part.

2025-08-23 13:31:09

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2025-08-23 20:48:45

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-08-23 22:01:34

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2025-08-24 15:14:06

Orion Pobursky [OrionP]

2025-08-31 02:18:23

Release 2025-08
