Official File parts/75541c01-f2.dat
Part Attributes: Base Part: 75541-f1.dat

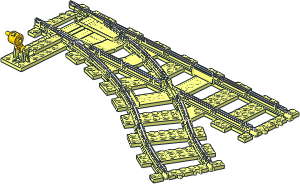

Train Track 9V Point Right Branching with Yellow Lever
File Header:
0 Train Track 9V Point Right Branching with Yellow Lever 0 Name: 75541c01-f2.dat 0 Author: Steffen [Steffen] 0 !LDRAW_ORG Shortcut UPDATE 2025-08 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2025-08-23 [MagFors] corrected position of lever 0 !HISTORY 2025-08-24 [MagFors] renumbered from 2859c04 0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 75541-f2.dat 1 14 -250 -24 -170 1 0 0 0 .88064 -.47378 0 .47378 .88064 2866.dat
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Steffen [Steffen]
Senior Part Reviewer
initially submitted the part.
2012-09-08 21:35:02
Steffen [Steffen]
Senior Part Reviewer
made the following comment.
2012-09-09 22:00:23
cf. http://ebid.s3.amazonaws.com/upload_big/3/8/4/1322915564-327-11.jpg
[PTadmin]
Part Author
renamed the part.
2012-09-10 09:47:27
"parts/2859c02.dat" to "parts/2859c04.dat."
Donald Sutter [technog]
Part Reviewer
made the following comment.
2013-04-06 21:30:03
I do not believe the turnout is to the correct dimensions, needs farther investigation by others.
I have constructed several test track layouts in real world that could not be replicated in LDraw without overlap or misalignment.
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2021-02-22 12:55:02
Shall we go ahead with this part, if no major flaws are found?
This part are sitting here with no progress for almost 8 years.
Javier Orquera [kuramapika1]
Part Author
made the following comment.
2025-02-12 22:46:45
Part 2866 have a wrong translation/position.
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Hold.
2025-02-13 14:06:04
Confirmed, as Javier mentioned
Javier Orquera [kuramapika1]
Part Author
made the following comment.
2025-02-13 19:27:40
Also, on the straight rail, both ends needed to be closed on the bottom; in many parts too.
Gerald Lasser [GeraldLasser]
Part Library Admin
posted a vote of Hold.
2025-08-21 14:23:50
2866 need to be at
1 14 -250 -24 -170 1 0 0 0 .88064 -.47378 0 .47378 .88064 2866.dat
Magnus Forsberg [MagFors]
Part Library Admin
submitted a new version of the part.
2025-08-23 14:40:16
Gerald Lasser [GeraldLasser]
Part Library Admin
posted a vote of Certify.
2025-08-23 16:30:16
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2025-08-23 16:39:32
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2025-08-24 15:18:57
Magnus Forsberg [MagFors]
Part Library Admin
renamed the part.
2025-08-24 21:28:29
"parts/2859c04.dat" to "parts/75541c01-f2.dat"
Magnus Forsberg [MagFors]
Part Library Admin
edited the part header.
2025-08-24 21:30:07
Header Edits

history:
0 !HISTORY 2025-08-23 [MagFors] corrected position of lever
to
0 !HISTORY 2025-08-23 [MagFors] corrected position of lever
0 !HISTORY 2025-08-24 [MagFors] renumbered from 2859c04
description:
Train Track 9V Point Right Branching (Complete)
to
Train Track 9V Point Right Branching with Yellow Lever

Orion Pobursky [OrionP]
Part Library Admin
2025-08-31 02:18:23
Release 2025-08
