Official File parts/2861c00.dat
Part Attributes:
Base Part: 2861.dat
File Header:

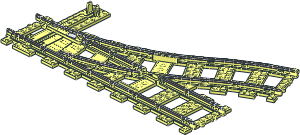

0 ~Train Track 9V Switch Left - Plastic Part with Underside Cover Plate and Metal Elements
0 Name: 2861c00.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Shortcut UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2012-09-05 [KROACH] Changed rect-4.dat to quads
0 !HISTORY 2012-09-05 [KROACH] Made BFC compliant
0 !HISTORY 2015-01-22 [Steffen] swapped s\2865s04l.dat and s\2865s04r.dat
0 !HISTORY 2019-06-02 [Steffen] used s\2865s04.dat
0 !HISTORY 2024-12-29 [MMR1988] Rewritten from scratch, original by KROACH
0 !HISTORY 2025-08-23 [MagFors] Reused more parts
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
