File Detail parts/2862a.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/2862a.dat

Part Attributes:

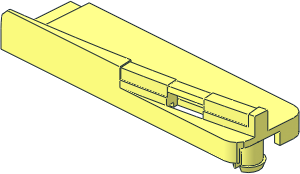

~Train Track 9V Switch Tongue Left - Plastic Part

File Header:

0 ~Train Track 9V Switch Tongue Left - Plastic Part
0 Name: 2862a.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-02-05 [MMR1988] Rewritten from scratch, original by KROACH
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 -1 2860a.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Kevin Roach [KROACH]

initially submitted the part.

2012-09-10 15:10:05

[PTadmin]

edited the part header.

2012-09-10 18:45:05

Steffen [Steffen]

made the following comment.

2012-09-10 20:35:34

instead of repeating the whole contents of 2860.dat here mirroredly,
this file could be reduced to a 1-liner, simply mirroring it.
why not?

Steffen [Steffen]

submitted a new version of the part.

2012-10-03 12:05:05

Simplified file contents to just mirroring the "Right" variant of this part. We already use this practice e.g. for the minifig legs,
and it reduces the implementation line count of this file from 456 to 1.

Existing certification-votes were deleted.

Steffen [Steffen]

submitted a new version of the part.

2012-10-03 23:10:05

re-uploading.
the previous upload got lost inside the PT, producing an inconsistent state!

Franklin W. Cain [fwcain]

posted a vote of Hold.

2019-07-01 06:10:01

When I render this file, the top view shows several missing faces. I suspect this is caused by BFC, especially since you are just mirroring the parent file.

Steffen [Steffen]

made the following comment.

2019-07-01 21:10:01

no, this part is a simple 1-liner which mirrors its opposite part.

doing such mirroring does not affect BFC.
at least it should not, and if it does, that's either
- a bug in the part that is being mirrored
- the tooling

but not in this file.

could you please remove your hold vote? it is wrongly placed here.

Franklin W. Cain [fwcain]

made the following comment.

2020-10-31 12:15:01

Since this is just a "mirror" of 2860, and since I see the same missing faces in that "parent" file, I'm relocating my "Hold" vote to the parent file.

Steffen [Steffen]

posted a vote of Hold.

2023-04-02 12:33:19

please renumber to 2862a.dat

(to make this part analogous to 2860a vs 2860b)

Orion Pobursky [OrionP]

renamed the part.

2023-04-05 22:34:33

"2862.dat" to "2862a.dat"

Steffen [Steffen]

cancelled their vote.

2023-04-06 00:13:32

removing hold
