File Detail parts/28884c01.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/28884c01.dat

Part Attributes: Base Part: 28884.dat

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

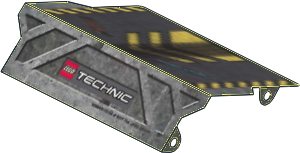

Cardboard Ramp 16 x 14 with Yellow Curbs and Chevrons Pattern (Formed)

File Header:

0 Cardboard Ramp 16 x 14 with Yellow Curbs and Chevrons Pattern (Formed)
0 Name: 28884c01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2023-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Sheet Cardboard
0 !KEYWORDS BrickLink 42058ppr01, Rebrickable 28884, Set 42058, Stunt Bike

0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9331c01s01.dat
0 !TEXMAP START PLANAR -160 0 139.243 160 0 139.243 -160 0 -100.947 28884c01a.png
0 !: 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9331c01s02.dat
0 !TEXMAP FALLBACK
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9331c01s02.dat
0 !TEXMAP END
0 !TEXMAP START PLANAR 0 -20.5 -100.5 0 -20.5 100.5 0 12.5 -100.5 28884c01b.png
0 !: 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9331c01s03.dat
0 !TEXMAP FALLBACK
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9331c01s03.dat
0 !TEXMAP END
0 !TEXMAP START PLANAR 0 -20.5 100.5 0 -20.5 -100.5 0 12.5 100.5 28884c01b.png
0 !: 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9331c01s03.dat
0 !TEXMAP FALLBACK
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9331c01s03.dat
0 !TEXMAP END

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2016-12-07 15:15:01

Philippe Hurbain [Philo]

made the following comment.

2016-12-07 15:35:01

TEXMAP images are here:
http://www.brickshelf.com/gallery/Philo/LdrawTextures/28884c01a.png
http://www.brickshelf.com/gallery/Philo/LdrawTextures/28884c01b.png

Magnus Forsberg [MagFors]

made the following comment.

2017-01-09 17:25:00

As far as I understand, it works as expected.

Max Martin Richter [MMR1988]

made the following comment.

2017-03-02 19:10:01

I don't understand why the fallback lines #23 and #28 are duplicated in front of the texmap definiton at lines #18 and #19.
Is there a reason for it (Maybe I missed this in the texmap specs) or are they wrong?

Steffen [Steffen]

posted a vote of Hold.

2018-02-07 19:25:00

Line 23: Identical to line 18: 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9331c01s03.dat
Line 28: Identical to line 19: 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9331c01s03.dat

Philippe Hurbain [Philo]

submitted a new version of the part.

2018-10-02 15:05:01

Corrected. I guess it should be renamed 28884-f1, as well as u9331c01 -> u9331-f1

Existing certification-votes were deleted.

[PTadmin]

edited the part header.

2019-01-25 13:45:01

Max Martin Richter [MMR1988]

posted a vote of Certify.

2021-09-15 17:50:01

Willy Tschager [Holly-Wood]

posted a vote of Certify.
