File Detail parts/29601.dat

Official File parts/29601.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

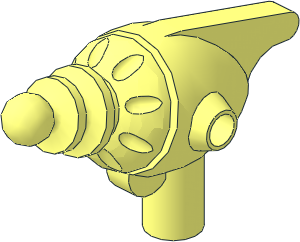

Minifig Gun with Round Heat Diffusers, Fin and Spherical Emitter

File Header:

0 Minifig Gun with Round Heat Diffusers, Fin and Spherical Emitter
0 Name: 29601.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2023-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Barrel Angle 105 degrees

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Accessory
0 !KEYWORDS Blaster, Pistol, Ray Gun, SciFi, Weapon

0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02

Show contents

0 // Handle and Intersection
1 16 0 9.5 0 4 0 0 0 -12.5 0 0 0 4 4-4cylc.dat

2 24 3.6956 -2.6375 1.5308 3.2289 -2.4774 2.2291
2 24 4 -2.5474 0 3.6956 -2.6375 1.5308
2 24 3.4552 -1.8707 -1.8905 3.6956 -2.0834 -1.5308
2 24 4 -2.5474 0 3.6956 -2.0834 -1.5308
2 24 3.2289 -2.4774 2.2291 2.8284 -2.427 2.8284
2 24 2.7344 -2.3909 2.8912 2.8284 -2.427 2.8284
2 24 1.5308 -1.5413 -3.6956 2.8284 -1.7573 -2.8284
2 24 2.8284 -1.7573 -2.8284 3.3236 -1.8227 -2.0875
2 24 1.5308 -1.5413 -3.6956 0 -1.2565 -4
2 24 3.3236 -1.8227 -2.0875 3.4552 -1.8707 -1.8905
2 24 1.5308 -2.3625 3.6956 2.7344 -2.3909 2.8912
2 24 0 -2.1581 4 1.5308 -2.3625 3.6956
2 24 -2.7344 -2.3909 2.8912 -2.8284 -2.427 2.8284
2 24 -3.2289 -2.4774 2.2291 -2.8284 -2.427 2.8284
2 24 -3.2289 -2.4774 2.2291 -3.6956 -2.6375 1.5308
2 24 -3.6956 -2.0834 -1.5308 -3.4552 -1.8707 -1.8905
2 24 -3.6956 -2.6375 1.5308 -4 -2.5474 0
2 24 -3.6956 -2.0834 -1.5308 -4 -2.5474 0
2 24 -2.8284 -1.7573 -2.8284 -3.3236 -1.8227 -2.0875
2 24 -1.5308 -1.5413 -3.6956 -2.8284 -1.7573 -2.8284
2 24 -1.5308 -1.5413 -3.6956 0 -1.2565 -4
2 24 -3.4552 -1.8707 -1.8905 -3.3236 -1.8227 -2.0875
2 24 -2.7344 -2.3909 2.8912 -1.5308 -2.3625 3.6956
2 24 0 -2.1581 4 -1.5308 -2.3625 3.6956

0 // Barrel
1 16 0 -17.1175 -26.563 1 0 0 0 .96593 .25882 0 -.25882 .96593 s\29601s01.dat
2 24 2 .4111 -3.382 2 -1.78 -3.382
2 24 -2 .4111 -3.382 -2 -1.78 -3.382
2 24 2 .4111 -3.382 1.5308 .6861 -3.6956
2 24 -2 .4111 -3.382 -1.5308 .6861 -3.6956
2 24 0 .953 -4 -1.5308 .6861 -3.6956
2 24 1.5308 .6861 -3.6956 0 .953 -4

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2020-10-21 11:15:01

I saw too late that this is available in LDD... So I made it from scratch...

Magnus Forsberg [MagFors]

posted a vote of Hold.

2020-11-13 15:55:01

Why is the handle added here, and the body in a subfile?
I can understand the quarter section, but not the need for the s01 subfile.

Gerald Lasser [GeraldLasser]

made the following comment.

2020-11-16 11:45:01

As there are a number of Prims in the subfile, my intention was to rather rotate a whole assembly, than to inline them and loose some accuracy and getting gaps.

Philippe Hurbain [Philo]

made the following comment.

2021-03-25 09:25:01

I think that subparting choice is correct...

Magnus Forsberg [MagFors]

posted a vote of Certify.

2022-03-01 21:55:02

Philippe Hurbain [Philo]

posted a vote of Certify.

2022-03-02 17:40:01

Orion Pobursky [OrionP]

posted a vote of Admin Review.
