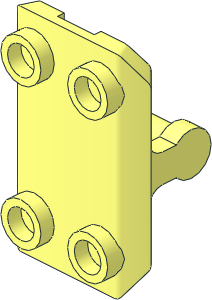

Minifig Shield Rectangular 2 x 3 with Bent and Chamfered Sides and Four Studs

File Header:

0 Minifig Shield Rectangular  2 x  3 with Bent and Chamfered Sides and Four Studs
0 Name: 30166.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Accessory

0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
0 !HISTORY 2025-07-27 [OrionP] Minor header edits
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30166s01.dat

0 // Front Surface
4 16 -14.136 -30 -18 -14.136 30 -18 14.136 30 -18 14.136 -30 -18
