Official File parts/3023bpy0.dat
Part Attributes:
Base Part: 3023b.dat
File Header:

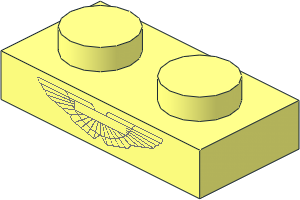

0 Plate 1 x 2 with Silver Aston Martin Logo on Front Face Pattern
0 Name: 3023bpy0.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2025-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 3023pb03, GT3, Rebrickable 3023pr0002, Set 76910
0 !KEYWORDS Speed Champions, Vantage
0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06
Show contents
0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3023bs01.dat
1 80 0 4 -10 .17 0 0 0 0 -.17 0 1 0 logo-aston-martin-icon.dat
1 16 0 4 -10 .17 0 0 0 0 -.17 0 1 0 logo-aston-martin-icon-box.dat
0 // Patterned face
4 16 -20 0 -10 -20 8 -10 -12.6616 6.82625 -10 -12.6616 1.47125 -10
3 16 -20 0 -10 -12.6616 1.47125 -10 -12.6616 1.17375 -10
3 16 -20 0 -10 -12.6616 1.17375 -10 -12.3641 1.17375 -10
3 16 -20 0 -10 -12.3641 1.17375 -10 -2.108 1.17375 -10
4 16 -20 0 -10 -2.108 1.17375 -10 2.108 1.17375 -10 20 0 -10
3 16 20 0 -10 2.108 1.17375 -10 12.3641 1.17375 -10
3 16 20 0 -10 12.3641 1.17375 -10 12.6616 1.17375 -10
3 16 20 0 -10 12.6616 1.17375 -10 12.6616 1.47125 -10
4 16 20 0 -10 12.6616 1.47125 -10 12.6616 6.82625 -10 20 8 -10
3 16 -20 8 -10 -1.403928 6.82625 -10 -12.6616 6.82625 -10
4 16 -20 8 -10 20 8 -10 1.403928 6.82625 -10 -1.403928 6.82625 -10
3 16 20 8 -10 12.6616 6.82625 -10 1.403928 6.82625 -10
4 16 -5.07705 2.149822 -10 -5.07705 3.560822 -10 5.07705 3.560822 -10 5.07705 2.149822 -10
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2022-04-22 22:55:01
2022-05-10 20:05:01
2023-05-26 14:14:01
shouldnt this be renamed to 3023bpy0?
Need renumbering
2023-05-27 18:39:03
"3023py0.dat" to "3023bpy0.dat"
Update subfile reference
2023-05-28 06:59:00
2023-05-30 20:05:15
Why isn't the pattern inlined? The subfile seems superflous, as it isn'T used anywhere else. can somebody exlain me? Thanks
2024-06-09 18:14:20
The pattern is not inlined to allow the logo to be reused (e.g. for the 76925 set).
I used the subfile to avoid having vertices with too many decimals since the scale used is 0.17.
I used the subfile to avoid having vertices with too many decimals since the scale used is 0.17.
The subfile should be inlined and directly use the logo prims instead.
2024-06-09 20:57:58
That's what I mean, inline the s0, the 4-5 digits are not an issue, just a handful (six) of vertices
2024-06-10 16:37:10
2024-06-10 16:38:15
The quad inside the logo is missing
Added missing quad.
2024-06-11 07:59:57
2024-06-11 13:20:21
2025-06-21 15:07:10
2025-06-26 01:28:18
Release 2025-06
