Official File parts/30303pa0.dat
Part Attributes:
Base Part: 30303.dat
File Header:

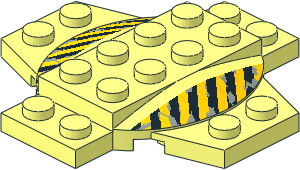

0 Plate 6 x 6 x 0.667 Cross with Dome and Black and Yellow Danger Stripes Pattern
0 Name: 30303pa0.dat
0 Author: Tim Lampmann [L4mpi]
0 !LDRAW_ORG Part UPDATE 2023-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 30303pb01, Rebrickable 30303pr0001, rock raiders, Set 4980
0 !KEYWORDS Transport, Tunnel
0 !HISTORY 2023-11-19 [OrionP] Official Update 2023-06
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30303s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30303pa0s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30303pa0s01.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2019-11-01 22:30:02
2019-11-02 13:20:01
Well, the "subfile" is not free from issues, so I would prefer a reworked subfile even if it is only used twice.
Yes, the condlines are missing.
Is the left side pattern a mirror of right side? Could it be subfiled?
Is the left side pattern a mirror of right side? Could it be subfiled?
2019-11-02 13:45:01
Yes, the left side pattern is a mirror of right side. I can subfile it when creating a subfile of the original part...
2019-11-03 17:30:01
2019-11-03 17:40:01
Subfiled the pattern and the original part.
I "broke" some surfaces to match the original shape of the dome and added the condlines from the original part. Hope this is adequate.
I "broke" some surfaces to match the original shape of the dome and added the condlines from the original part. Hope this is adequate.
2019-11-03 20:40:02
Why is the thin vertical surface added in many very small triangles?
No condlines are needed here if they're added on the pattern subfile, or maybe even better, in the common main subfile.
No condlines are needed here if they're added on the pattern subfile, or maybe even better, in the common main subfile.
2019-11-03 20:55:01
Same here, wanted to avoid T-Junctions.
You mean I should shift the conlines to 30303s01? Seems clever!
You mean I should shift the conlines to 30303s01? Seems clever!
2019-11-03 21:00:01
I could shift the thin vertical surface to the pattern subfile...
Updated subfiles.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2021-10-07 20:15:01
2023-09-01 13:58:53
2023-11-18 03:04:35
2023-11-19 03:08:43
Release 2023-06
