File Detail parts/30367cps9.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/30367cps9.dat

Part Attributes: Base Part: 30367c.dat

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

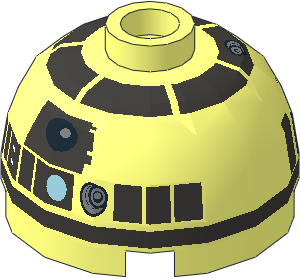

Cylinder 2 x 2 with Dome Top with SW Silver / R4-P17 (2016) Pattern

File Header:

0 Cylinder  2 x  2 with Dome Top with SW Silver / R4-P17 (2016) Pattern
0 Name: 30367cps9.dat
0 Author: Franklin W. Cain [fwcain]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS astromech, Bricklink 553pb023, droid, minifig, R4
0 !KEYWORDS Rebrickable 30367cpr1008, set 75135, set 75191, Star Wars

0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

1 87 0 0 0 1 0 0 0 1 0 0 0 1 s\30367ps0s01.dat
1 87 0 0 0 1 0 0 0 1 0 0 0 1 s\30367ps0s02.dat
1 87 0 0 0 1 0 0 0 1 0 0 0 1 s\30367ps0s03.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30367ps0s04.dat

0 // secondary eye

4 9 1.8077 11.1602 -18.9189 1.1786 11.128 -19.0392 0.5985 11.3732 -19.1912 2.3897 11.4646 -18.8485
3 9 2.3897 11.4646 -18.8485 0.5985 11.3732 -19.1912 0.1557 11.8586 -19.3516
4 9 2.8365 11.9954 -18.8388 2.3897 11.4646 -18.8485 0.1557 11.8586 -19.3516 0 12.2845 -19.4461
3 9 3.0797 12.6715 -18.8912 2.8365 11.9954 -18.8388 0 12.2845 -19.4461
4 9 -0.0798 13.2285 -19.5712 0 13.4503 -19.6199 0 12.2845 -19.4461 -0.0825 12.5101 -19.4635
4 9 3.0797 12.6715 -18.8912 0 12.2845 -19.4461 0 13.4503 -19.6199 3.0823 13.3898 -18.9978
4 9 0.1634 13.9045 -19.6551 2.8441 14.0413 -19.1423 3.0823 13.3898 -18.9978 0 13.4503 -19.6199
4 9 0.6101 14.4353 -19.6454 2.4013 14.5267 -19.3027 2.8441 14.0413 -19.1423 0.1634 13.9045 -19.6551
4 9 1.1922 14.7399 -19.575 1.8212 14.7719 -19.4547 2.4013 14.5267 -19.3027 0.6101 14.4353 -19.6454

0 // plug lights

4 15 -8.1727 11.7 -17.3751 -9.2421 11.7 -16.6603 -9.277 12.2 -16.725 -8.2034 12.2 -17.4425
4 15 -8.2955 13.7 -17.645 -9.3814 13.7 -16.9191 -9.4164 14.2 -16.9838 -8.3262 14.2 -17.7124

0 // thick-lined box

1 15 11.5 12.75 15.336 1.33 0 0.131 0 1 1.582 -0.89 0 0.195 4-4disc.dat
1 16 11.5 12.75 15.336 1.33 0 0.131 0 1 1.582 -0.89 0 0.195 4-4ndis.dat

3 16 7.3349 10.4 17.7062 10.039 11.168 16.030 10.17 12.75 16.226
3 16 7.3349 10.4 17.7062 11.369 11.168 15.141 10.039 11.168 16.030
3 16 7.3349 10.4 17.7062 13.4478 10.4 13.6205 11.369 11.168 15.141
3 16 13.4478 10.4 13.6205 12.698 11.168 14.251 11.369 11.168 15.141
3 16 13.4478 10.4 13.6205 12.83 12.75 14.446 12.698 11.168 14.251
3 16 13.4478 10.4 13.6205 13.9391 15.1001 14.1192 12.83 12.75 14.446
3 16 13.9391 15.1001 14.1192 12.961 14.332 14.642 12.83 12.75 14.446
3 16 13.9391 15.1001 14.1192 11.631 14.332 15.531 12.961 14.332 14.642
3 16 13.9391 15.1001 14.1192 7.6027 15.1001 18.3540 11.631 14.332 15.531
3 16 7.6027 15.1001 18.3540 10.302 14.332 16.421 11.631 14.332 15.531
3 16 7.6027 15.1001 18.3540 10.17 12.75 16.226 10.302 14.332 16.421
3 16 7.6027 15.1001 18.3540 7.3349 10.4 17.7062 10.17 12.75 16.226

4 16 7.3349 10.4 17.7062 7.6027 15.1001 18.354 4.9578 15.1 18.8801 4.7829 10.4 18.2138

0 // big slot within panel

4 0 -14.0997 12.95 13.4021 -13.9922 11.95 13.2997 -13.7148 11.95 13.7148 -13.8203 12.95 13.8203
4 0 -13.8203 12.95 13.8203 -13.7148 11.95 13.7148 -7.4232 11.95 17.9198 -7.4802 12.9501 18.0577
4 0 -7.1999 12.9501 18.1132 -7.4802 12.9501 18.0577 -7.4232 11.95 17.9198 -7.145 11.9501 17.975

0 // all else

1 16 0 19.3 0 20 0 0 0 0.7 0 0 0 20 4-4cyli.dat

1 16 0 16 0 -7.653669 0 -18.477591 0 0.7 0 18.477591 0 -7.653669 3-4cyli.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30367cs01.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Franklin W. Cain [fwcain]

initially submitted the part.

2019-04-29 06:50:01

Franklin W. Cain [fwcain]

submitted a new version of the part.

2019-04-30 23:10:01

Fixed comments.

Franklin W. Cain [fwcain]

submitted a new version of the part.

2019-05-04 15:50:01

Franklin W. Cain [fwcain]

made the following comment.

2019-05-12 14:00:02

There is a message thread at the Forums for discussing this group of related files...
https://forums.ldraw.org/thread-23370-post-31978.html

Thanks,
Franklin

Max Martin Richter [MMR1988]

posted a vote of Hold.

2021-10-07 16:30:01

Line 39: Flat subfile is scaled in flat direction 1 100 11.5 12.75 15.336 1.33 -0.88 0.131 0 0.235 1.582 -0.89 -1.315 0.195 4-4disc.dat
Line 40: Flat subfile is scaled in flat direction 1 16 11.5 12.75 15.336 1.33 -0.88 0.131 0 0.235 1.582 -0.89 -1.315 0.195 4-4ndis.dat

Contains some t-junctions as mentioned above.

The space in front of each linetype 1 to 5 should be removed.

Max Martin Richter [MMR1988]

posted a vote of Hold.

2021-10-16 11:00:01

The Keywort R4-P17 must removed from the keywords as it is in the description already.

Franklin W. Cain [fwcain]

submitted a new version of the part.

2021-10-16 13:15:01

Fixed the non-planar issue, which (I believe) should also fix the "T"-junction issue.

Existing certification-votes were deleted.

Franklin W. Cain [fwcain]

submitted a new version of the part.

2021-10-20 05:15:01

Figured out the "T"-junction issue.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2021-10-24 14:40:01

The colours used is not right. In this video review:
https://youtu.be/8ivYBNtiBtA?t=248
the lightsaber is Metallic silver, and the droid head is much darker. It has to be code 87, Metallic Dark Grey.

And I think I can see light blue, light green and metallic silver in the small details.
https://img.bricklink.com/ItemImage/PN/59/553pb023.original.png
The description at Bricklink even has Blue Dot in it.

I don't think the details are white. Here another example:
https://brickset.com/parts/design-25585

But the T-junctions are gone.

Franklin W. Cain [fwcain]

made the following comment.

2021-10-24 15:00:01

The colors are correct, compared to the physical models that I own.

If I've referred to the wrong entry in the BrickLink database, that would be a different matter, I'm thinking.

Franklin W. Cain [fwcain]

submitted a new version of the part.

2022-11-08 19:00:02

Hopefully, these colors will work better. ;-)
Thanks! ~Franklin

Existing certification-votes were deleted.

Magnus Forsberg [MagFors]

made the following comment.

2022-11-21 21:45:01

Still think White is the wrong colour, but I can't say it is.

Franklin W. Cain [fwcain]

made the following comment.

2022-11-26 20:10:02

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2023-09-09 14:21:21

Max Martin Richter [MMR1988]

edited the part header.

2024-05-02 21:00:42

Header Edits

keywords:
astromech, droid, minifig, R4, set 75135, set 75191, Star Wars
to
astromech, droid, minifig, R4, set 75135, set 75191, Star Wars, Bricklink 553pb023

Max Martin Richter [MMR1988]

posted a vote of Certify.

2024-05-02 21:00:53

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2024-05-03 01:22:21

Orion Pobursky [OrionP]

2024-05-28 02:57:16

Release 2024-04

Creative Commons Attribution License information
