File Detail parts/30402p01.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/30402p01.dat

Part Attributes: Base Part: 30402.dat

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

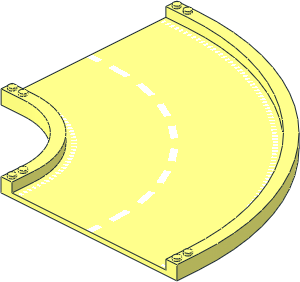

Car Track 24 x 16 x 1 Curved 90 Degrees with White Centre Stripe Pattern

File Header:

0 Car Track 24 x 16 x  1 Curved 90 Degrees with White Centre Stripe Pattern
0 Name: 30402p01.dat
0 Author: Tim Lampmann [L4mpi]
0 !LDRAW_ORG Part UPDATE 2023-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Bricklink 30402px1, Construction, Highway, Rebrickable 30402pr0001
0 !KEYWORDS road, Set 6600

0 !HISTORY 2023-04-17 [OrionP] Official Update 2023-02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30402s03.dat

1 16 0 16 0 1 0 0 0 1 0 0 0 1 s\30402p01s01.dat
1 16 0 16 0 0 0 1 0 1 0 1 0 0 s\30402p01s01.dat
4 15 107.3557 16 110.4117 102.4759 16 105.393 105.393 16 102.4759 110.4117 16 107.3557
3 16 102.4759 16 105.393 98.995 16 98.995 105.393 16 102.4759
3 16 290.8748 16 293.1908 293.1908 16 290.8748 296.985 16 296.985
4 16 290.8748 16 293.1908 285.9447 16 288.2215 288.2215 16 285.9447 293.1908 16 290.8748
4 16 288.2215 16 285.9447 285.9447 16 288.2215 192.0182 16 210.6039 210.6039 16 192.0182
4 16 203.2143 16 185.2807 210.6039 16 192.0182 192.0182 16 210.6039 185.2807 16 203.2143
4 16 203.2143 16 185.2807 185.2807 16 203.2143 107.3557 16 110.4117 110.4117 16 107.3557
