Official File parts/30488.dat
Part Attributes:
File Header:

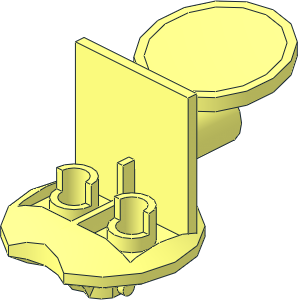

0 Minifig Stand
0 Name: 30488.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !KEYWORDS Soccer, Sports
0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05
Show contents
1 16 0 0 11.5 19.5 0 0 0 -40 0 0 0 1.5 box5-4a.dat
0 BFC INVERTNEXT
1 16 0 -34 39 0 0 17.5 -2.625 -2 0 17.5 0 0 bump5000.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30488s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30488s01.dat
2 24 4 8 13 -4 8 13
4 16 19.5 0 13 4 8 13 -4 8 13 -19.5 0 13
3 16 0 8 8.2 -4 8 13 4 8 13
3 16 -1 -5 -10 0 -5 -15 1 -5 -10
1 16 0 -5 -2 0 0 -1 0 1 0 8 0 0 rect1.dat
1 16 0 -10 6 0 0 -1 -5 0 0 0 1 0 rect1.dat
1 16 0 -15 8 0 0 -1 0 1 0 2 0 0 rect1.dat
4 16 -2 -32 15.1989 -2 -35 13 2 -35 13 2 -32 15.1989
2 24 -2 -35 13 2 -35 13
4 16 -2 -31 17.1989 -2 -32 15.1989 2 -32 15.1989 2 -31 17.1989
4 16 -2 -31 17.1989 2 -31 17.1989 2 -31 19.3977 -2 -31 19.3977
2 24 2 -31 19.3977 0 -31 19
2 24 -2 -31 19.3977 0 -31 19
1 16 2 -30.9 49 0 -4 0 6 0 -1.5 0 0 6 1-4cylo.dat
2 24 -2 -32.4 55 2 -32.4 55
2 24 2 -23.6023 40 -2 -23.6023 40
4 16 -2 -24.9 49 2 -24.9 49 2 -23.6023 40 -2 -23.6023 40
1 16 0 -16 30 0 0 -1 1 0 0 0 10 0 axlehol6.dat
1 16 0 -16 30 0 0 1 -1 0 0 0 10 0 axlehol6.dat
0 BFC INVERTNEXT
1 16 0 -16 30 0 0 6 6 0 0 0 10 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 0 -16 30 0 0 -6 -6 0 0 0 10 0 1-4cylo.dat
1 16 -5.80115 -15 35 0.19885 -1 0 1 0 0 0 0 5 rect2p.dat
1 16 -1 -10.19885 35 1 0 0 0.19885 1 0 0 0 5 rect2p.dat
1 16 5.80115 -17 35 -0.19885 1 0 -1 0 0 0 0 5 rect2p.dat
1 16 1 -21.80115 35 -1 0 0 -0.19885 -1 0 0 0 5 rect2p.dat
5 24 0 3 -20 0 8 -12.717 6.027 5.2 -17.9975 -6.027 5.2 -17.9975
5 24 0 0 25 0 -0.9545 23.4092 8 0 23.4092 -8 0 23.4092
5 24 2 -31 17.1989 -2 -31 17.1989 -2 -32 15.1989 2 -31 19.3977
5 24 -2 -32 15.1989 2 -32 15.1989 -2 -35 13 2 -31 17.1989
5 24 0 6.4 19 0 6 20 4 6.0818 19 -4 6.0818 19
5 24 0 11.5 4.5 0 11.5 8.2 1.7222 11.8425 7.8576 -1.7222 11.8425 7.8576
5 24 0 11.5 8.2 0 8 8.2 -2.9085 8 7.6216 2.9085 8 7.6216
5 24 0 8 -12.717 0 12 -9.2801 5.7405 8 -13.8585 -5.7405 8 -13.8585
5 24 0 -5 -15 0 -3 -20 7.654 -3 -18.478 -7.654 -3 -18.478
5 24 0 12 -9.2801 0 16 -6.4433 -3.9316 12 -10.2619 3.9316 12 -10.2619
5 24 0 -3 -20 0 3 -20 -5.3924 3 -20.995 5.3924 3 -20.995
5 24 -2 -24.9 49 2 -24.9 49 2 -23.6023 40 -2 -26.0307 51.2962
1 16 0 -16 40 0 0 -6 6 0 0 0 -10 0 1-16chrd.dat
1 16 0 -16 40 -6 0 0 0 0 6 0 -10 0 1-16chrd.dat
1 16 0 -16 40 0 0 6 -6 0 0 0 -10 0 1-16chrd.dat
1 16 0 -16 40 6 0 0 0 0 -6 0 -10 0 1-16chrd.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2022-01-25 12:55:02
Fixed overlap
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2024-10-08 13:59:06
2025-01-18 08:08:37
maybe parts of it could be subparted for parts like 43372 and 48291
2025-01-18 08:13:57
Probably better to subpart only when you attempt to build the other parts and know exactly how you need the subpart to be.
2025-03-21 10:34:38
2025-04-18 13:23:17
should the origin be at the hinge?
Fixed the wrongly placed cylinder. Origin (impratical I agree!) is located at "standard" stud level.
Added some erings/1-16chrd to plug hires subst holes
2025-04-27 15:56:18
2025-04-27 18:15:01
2025-05-23 13:07:11
2025-05-28 03:31:29
Release 2025-05
