Official File parts/30838.dat
Part Attributes:
File Header:

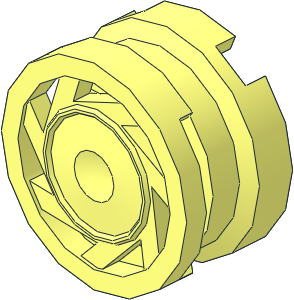

0 Wheel Rim 6.4 x 11 with 7 Spokes
0 Name: 30838.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2018-01-28 {LEGO Digital Designer} Original part shape
0 !HISTORY 2021-01-28 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09
Show contents
0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\93593s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30838s01.dat
0 // Patternable areas
1 16 0 0 -8 2 0 0 0 0 2 0 1 0 4-4ring6.dat
1 16 0 0 -8 .5 0 0 0 0 .5 0 1 0 4-4ring23.dat
1 16 0 0 -8 11.5 0 0 0 0 11.5 0 1 0 4-4ering.dat
1 16 0 0 -7.94 .5 0 0 0 0 .5 0 -.06 0 4-4con6.dat
1 16 0 0 -7.52 3.5 0 0 0 0 3.5 0 -.42 0 4-4con1.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-01-23 07:25:01
2021-02-09 21:35:01
You could close the design using 4-4ering prims
2021-02-13 05:00:02
I'm sorry, if this should work you have to inline these primitives to:
1 5 0 0 -8 11.5 0 0 0 0 11.5 0 1 0 4-4edge.dat
1 5 0 0 -5 -11.5 0 0 0 0 11.5 0 1 0 1-16edge.dat
1 5 0 0 -8 11.5 0 0 0 0 11.5 0 1 0 4-4edge.dat
1 5 0 0 -5 -11.5 0 0 0 0 11.5 0 1 0 1-16edge.dat
Inlined.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2022-01-28 20:10:02
Update ring primitives via script. This will not reset the vote status of the part.
2024-10-12 11:21:16
2024-10-12 13:22:04
2024-10-20 14:00:15
2024-10-27 01:48:32
Release 2024-09
