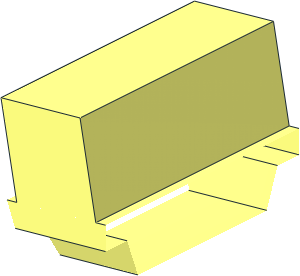

0 ~Technic Tread Crawler - curved segment
0 Name: 3096k02.dat
0 Author: Max Murtazin [SwampKryakwa]
0 !LDRAW_ORG Unofficial_Part Flexible_Section
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 BFC INVERTNEXT
1 16 0 0 -6 0 0 -19 -19 0 0 0 12 0 1-16cyli.dat
1 16 0 0 -6 0 0 -19 -19 0 0 0 1 0 1-16edge.dat
1 16 0 0 6 0 0 -19 -19 0 0 0 1 0 1-16edge.dat
0 BFC INVERTNEXT
1 16 0 0 -9 0 0 -22 -22 0 0 0 2 0 1-16cyli.dat
0 BFC INVERTNEXT
1 16 0 0 7 0 0 -22 -22 0 0 0 2 0 1-16cyli.dat
1 16 0 0 -9 0 0 -1 -1 0 0 0 1 0 1-16ring23.dat
1 16 0 0 9 0 0 -22 -22 0 0 0 1 0 1-16edge.dat
1 16 0 0 7 0 0 -22 -22 0 0 0 1 0 1-16edge.dat
1 16 0 0 -9 0 0 -1 -1 0 0 0 1 0 1-16ring22.dat
1 16 0 0 -9 0 0 -22 -22 0 0 0 1 0 1-16edge.dat
1 16 0 0 -7 0 0 -22 -22 0 0 0 1 0 1-16edge.dat
0 BFC INVERTNEXT
1 16 0 0 -7 0 0 -2 -2 0 0 0 .667 0 1-16con10.dat
0 BFC INVERTNEXT
1 16 0 0 7 0 0 -2 -2 0 0 0 -.667 0 1-16con10.dat
0 BFC INVERTNEXT
1 16 0 0 -6.333 0 0 -1 -1 0 0 0 .333 0 1-16con19.dat
0 BFC INVERTNEXT
1 16 0 0 6.333 0 0 -1 -1 0 0 0 -.333 0 1-16con19.dat
1 16 0 0 9 0 0 -1 -1 0 0 0 -1 0 1-16ring23.dat
1 16 0 0 9 0 0 -1 -1 0 0 0 -1 0 1-16ring22.dat
1 16 -4.592 -23.087 0 3.678 -1.463 0 -.731 -7.356 0 0 0 9 box5-2p.dat
4 16 0 -24 9 -.914 -23.818 9 -.914 -23.818 -9 0 -24 -9
4 16 -8.271 -22.355 9 -9.185 -22.174 9 -9.185 -22.174 -9 -8.271 -22.355 -9
5 24 -9.185 -22.174 -9 -9.185 -22.174 9 -8.271 -22.355 -9 -9.96683 -21.65777 -9
2 24 -9.185 -22.174 9 -8.271 -22.355 9
2 24 -9.185 -22.174 -9 -8.271 -22.355 -9
2 24 -.914 -23.818 -9 0 -24 -9
2 24 -.914 -23.818 9 0 -24 9

Status:

Errors Found (CCHN)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

p/1-16ring22.dat (Awaiting Admin Review)
p/1-16ring23.dat (Needs More Votes)

Current Votes:

User	Vote
MMR1988	Certify
RainbowDolphin	Certify
Blechtaler	Hold

Official parents and subparts

Part Events:

Max Murtazin [SwampKryakwa]

initially submitted the part.

2022-07-19 12:55:01

Max Martin Richter [MMR1988]

posted a vote of Certify.

2023-01-03 14:05:01

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-01-29 02:56:53

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2025-01-29 11:13:52

segment is too short
main part has a hold for the same reason (too many segments at the round part)
look at 486-f1.dat, it has a better spacing
3096 is the "modern" variant, but both have 30 segments
