File Detail parts/3096k03.dat

Download Download zip file View patterns/composites/shortcuts

Unofficial File parts/3096k03.dat

File Header:

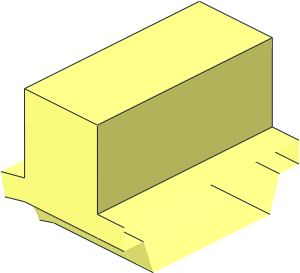

0 ~Technic Tread Crawler - border segment
0 Name: 3096k03.dat
0 Author: Max Murtazin [SwampKryakwa]
0 !LDRAW_ORG Unofficial_Part Flexible_Section
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 -24 0 3.75 0 0 0 -7.5 0 0 0 9 box5-2p.dat
1 16 5.125 -22 0 1.375 0 0 0 -2 0 0 0 9 box3u8p.dat
1 16 0 -23 -9 0 0 3.75 1 0 0 0 1 0 rect1.dat
1 16 0 -23 9 0 0 3.75 1 0 0 0 -1 0 rect1.dat
1 16 1.375 -22 8 0 0 5.125 0 -1 0 -1 0 0 rect1.dat
1 16 1.375 -22 -8 0 0 5.125 0 -1 0 1 0 0 rect1.dat
4 16 -3.75 -19 -6 -3.75 -19 6 6.5 -19 6 6.5 -19 -6
4 16 6.5 -19 -6 6.5 -22 -7 -3.75 -22 -7 -3.75 -19 -6
4 16 -3.75 -19 6 -3.75 -22 7 6.5 -22 7 6.5 -19 6

2 24 -3.75 -19 -6 6.5 -19 -6
2 24 6.5 -19 6 -3.75 -19 6
5 24 -3.75 -22 9 -3.75 -22 7 -8.04199 -21.57728 9 3.75 -22 9
5 24 -3.75 -19 -6 -3.75 -19 6 -7.45672 -18.63492 6 6.5 -19 6
4 16 -3.75 -22 -7 -5.79 -21.582 -7 -5.205 -18.639 -6 -3.75 -19 -6
4 16 -3.75 -19 -6 -5.205 -18.639 -6 -5.205 -18.639 6 -3.75 -19 6
4 16 -6.18 -23.544 -9 -5.79 -21.582 -9 -3.75 -22 -9 -3.75 -24 -9
4 16 -3.75 -22 -9 -5.79 -21.582 -9 -5.79 -21.582 -7 -3.75 -22 -7
4 16 -6.18 -23.544 9 -6.18 -23.544 -9 -3.75 -24 -9 -3.75 -24 9
4 16 -6.18 -23.544 9 -3.75 -24 9 -3.75 -22 9 -5.79 -21.582 9
4 16 -3.75 -22 7 -5.79 -21.582 7 -5.79 -21.582 9 -3.75 -22 9
4 16 -5.205 -18.639 6 -5.79 -21.582 7 -3.75 -22 7 -3.75 -19 6
2 24 -5.79 -21.582 9 -3.75 -22 9
2 24 -5.79 -21.582 7 -3.75 -22 7
2 24 -5.205 -18.639 6 -3.75 -19 6
2 24 -5.205 -18.639 -6 -3.75 -19 -6
2 24 -6.18 -23.544 9 -3.75 -24 9
2 24 -6.18 -23.544 -9 -3.75 -24 -9
2 24 -5.79 -21.582 -9 -3.75 -22 -9
2 24 -5.79 -21.582 -7 -3.75 -22 -7
5 24 -6.18 -23.544 -9 -6.18 -23.544 9 -7.04114 -23.18723 -9 -3.75 -24 -9

Status:

Needs More Votes (CN)

Current Votes:

User	Vote
MMR1988	Certify

Official parents and subparts

Part Events:

Max Murtazin [SwampKryakwa]

initially submitted the part.

2022-07-19 12:55:01

Max Martin Richter [MMR1988]

posted a vote of Hold.

2023-01-03 14:05:01

These lines needs some rouning:
5 24 -3.75 -22 9 -3.75 -22 7 -8.041987084354821571076372591498 -21.577276168871069944743420788843 9 3.75 -22 9
5 24 -3.75 -19 -6 -3.75 -19 6 -7.456716118306436811384139965385 -18.634920327661378588642045226728 6 6.5 -19 6

Max Murtazin [SwampKryakwa]

submitted a new version of the part.

2023-01-03 15:40:02

Rounded

Existing certification-votes were deleted.

Max Martin Richter [MMR1988]

posted a vote of Certify.

2023-01-04 06:40:01
