Download Download zip file
Official File parts/31022.dat
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

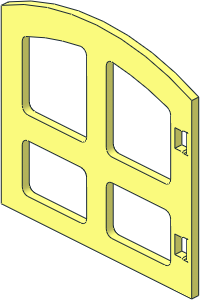

Duplo Window 1 x 4 x 3 with Curved Top with Four Panes
File Header:
0 Duplo Window 1 x 4 x 3 with Curved Top with Four Panes 0 Name: 31022.dat 0 Author: Philippe Hurbain [Philo] 0 !LDRAW_ORG Part UPDATE 2025-01 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !CATEGORY Window 0 !HISTORY 2025-01-20 [OrionP] Official Update 2025-01
Show contents
1 16 -1.6 -37.6 0 0 0 -1.6 0 -1 0 -2.5 0 0 rect3.dat 1 16 -3.8 -37.3 0 -0.6 0 0 0.3 -1 0 0 0 2.5 rect2p.dat 1 16 -1.6 -24.4 0 0 0 -1.6 0 1 0 2.5 0 0 rect3.dat 1 16 -3.8 -24.7 0 0.6 0 0 0.3 1 0 0 0 2.5 rect2p.dat 1 16 0 -37.6 0 0 0 -2.5 0 13.2 0 -2.5 0 0 2-4cylo.dat 0 BFC INVERTNEXT 1 16 -4.4 -31 0 0 -5.1 0 0 0 6 -2.5 0 0 box3u2p.dat 1 16 -1.6 37.6 0 0 0 -1.6 0 1 0 2.5 0 0 rect3.dat 1 16 -3.8 37.3 0 0.6 0 0 0.3 1 0 0 0 2.5 rect2p.dat 1 16 -1.6 24.4 0 0 0 -1.6 0 -1 0 -2.5 0 0 rect3.dat 1 16 -3.8 24.7 0 -0.6 0 0 0.3 -1 0 0 0 2.5 rect2p.dat 1 16 0 37.6 0 0 0 -2.5 0 -13.2 0 -2.5 0 0 2-4cylo.dat 0 BFC INVERTNEXT 1 16 -4.4 31 0 0 -5.1 0 0 0 -6 -2.5 0 0 box3u2p.dat 1 16 2.5 0.165 0 0 -1 0 0 0 57.835 -2.5 0 0 rect.dat 4 16 -3.2 -37.6 2.5 -4.4 -37 2.5 -9.5 -37 2.5 2.5 -57.67 2.5 3 16 -3.2 -37.6 2.5 2.5 -57.67 2.5 0 -37.6 2.5 4 16 -9.5 -37 -2.5 -4.4 -37 -2.5 -3.2 -37.6 -2.5 2.5 -57.67 -2.5 3 16 2.5 -57.67 -2.5 -3.2 -37.6 -2.5 0 -37.6 -2.5 4 16 -9.5 25 2.5 -9.5 -25 2.5 -4.4 -25 2.5 -4.4 25 2.5 4 16 -3.2 24.4 2.5 -4.4 25 2.5 -4.4 -25 2.5 -3.2 -24.4 2.5 4 16 -3.2 24.4 2.5 -3.2 -24.4 2.5 0 -24.4 2.5 0 24.4 2.5 4 16 -4.4 -25 -2.5 -9.5 -25 -2.5 -9.5 25 -2.5 -4.4 25 -2.5 4 16 -4.4 -25 -2.5 -4.4 25 -2.5 -3.2 24.4 -2.5 -3.2 -24.4 -2.5 4 16 0 -24.4 -2.5 -3.2 -24.4 -2.5 -3.2 24.4 -2.5 0 24.4 -2.5 1 16 -65.5 58 0 68 0 0 0 -1 0 0 0 2.5 rect2p.dat 1 16 -133.5 0.165 0 0 1 0 -57.835 0 0 0 0 2.5 rect.dat 1 16 -16.5 17.5 -2.5 4 0 0 0 0 -4 0 1 0 1-4ndis.dat 1 16 -54.5 17.5 -2.5 -4 0 0 0 0 -4 0 1 0 1-4ndis.dat 1 16 -16.5 42 -2.5 4 0 0 0 0 4 0 1 0 1-4ndis.dat 1 16 -54.5 42 -2.5 -4 0 0 0 0 4 0 1 0 1-4ndis.dat 1 16 -16.5 17.5 2.5 4 0 0 0 0 -4 0 -1 0 1-4ndis.dat 1 16 -54.5 17.5 2.5 -4 0 0 0 0 -4 0 -1 0 1-4ndis.dat 1 16 -16.5 42 2.5 4 0 0 0 0 4 0 -1 0 1-4ndis.dat 1 16 -54.5 42 2.5 -4 0 0 0 0 4 0 -1 0 1-4ndis.dat 0 BFC INVERTNEXT 1 16 -54.5 17.5 -2.5 -4 0 0 0 0 -4 0 5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -16.5 42 -2.5 4 0 0 0 0 4 0 5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -54.5 42 -2.5 -4 0 0 0 0 4 0 5 0 1-4cylo.dat 1 16 -35.5 46 0 -19 0 0 0 1 0 0 0 -2.5 rect2p.dat 1 16 -35.5 13.5 0 19 0 0 0 -1 0 0 0 -2.5 rect2p.dat 1 16 -58.5 29.75 0 0 -1 0 -12.25 0 0 0 0 -2.5 rect2p.dat 1 16 -12.5 29.75 0 0 1 0 12.25 0 0 0 0 -2.5 rect2p.dat 1 16 -16.5 -5.5 -2.5 4 0 0 0 0 4 0 1 0 1-4ndis.dat 1 16 -54.5 -5.5 -2.5 -4 0 0 0 0 4 0 1 0 1-4ndis.dat 1 16 -16.5 -5.5 2.5 4 0 0 0 0 4 0 -1 0 1-4ndis.dat 1 16 -54.5 -5.5 2.5 -4 0 0 0 0 4 0 -1 0 1-4ndis.dat 0 BFC INVERTNEXT 1 16 -54.5 -5.5 -2.5 -4 0 0 0 0 4 0 5 0 1-4cylo.dat 1 16 -35.5 -1.5 0 -19 0 0 0 1 0 0 0 -2.5 rect2p.dat 1 16 -58.5 -29.25 0 0 -1 0 -23.75 0 0 0 0 -2.5 rect2p.dat 1 16 -12.5 -24.25 0 0 1 0 18.75 0 0 0 0 -2.5 rect2p.dat 0 BFC INVERTNEXT 1 16 -16.5 -5.5 -2.5 4 0 0 0 0 4 0 5 0 1-4cylo.dat 3 16 -9.5 -37 2.5 -12.5 -47 2.5 2.5 -57.67 2.5 1 16 -114.5 17.5 -2.5 -4 0 0 0 0 -4 0 1 0 1-4ndis.dat 1 16 -76.5 17.5 -2.5 4 0 0 0 0 -4 0 1 0 1-4ndis.dat 1 16 -114.5 42 -2.5 -4 0 0 0 0 4 0 1 0 1-4ndis.dat 1 16 -76.5 42 -2.5 4 0 0 0 0 4 0 1 0 1-4ndis.dat 1 16 -114.5 17.5 2.5 -4 0 0 0 0 -4 0 -1 0 1-4ndis.dat 1 16 -76.5 17.5 2.5 4 0 0 0 0 -4 0 -1 0 1-4ndis.dat 1 16 -114.5 42 2.5 -4 0 0 0 0 4 0 -1 0 1-4ndis.dat 1 16 -76.5 42 2.5 4 0 0 0 0 4 0 -1 0 1-4ndis.dat 0 BFC INVERTNEXT 1 16 -76.5 17.5 -2.5 4 0 0 0 0 -4 0 5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -114.5 42 -2.5 -4 0 0 0 0 4 0 5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -76.5 42 -2.5 4 0 0 0 0 4 0 5 0 1-4cylo.dat 1 16 -95.5 46 0 -19 0 0 0 1 0 0 0 -2.5 rect2p.dat 1 16 -95.5 13.5 0 19 0 0 0 -1 0 0 0 -2.5 rect2p.dat 1 16 -72.5 29.75 0 0 1 0 12.25 0 0 0 0 -2.5 rect2p.dat 1 16 -118.5 29.75 0 0 -1 0 -12.25 0 0 0 0 -2.5 rect2p.dat 0 BFC INVERTNEXT 1 16 -114.5 17.5 -2.5 -4 0 0 0 0 -4 0 5 0 1-4cylo.dat 1 16 -114.5 -5.5 -2.5 -4 0 0 0 0 4 0 1 0 1-4ndis.dat 1 16 -76.5 -5.5 -2.5 4 0 0 0 0 4 0 1 0 1-4ndis.dat 1 16 -114.5 -5.5 2.5 -4 0 0 0 0 4 0 -1 0 1-4ndis.dat 1 16 -76.5 -5.5 2.5 4 0 0 0 0 4 0 -1 0 1-4ndis.dat 0 BFC INVERTNEXT 1 16 -76.5 -5.5 -2.5 4 0 0 0 0 4 0 5 0 1-4cylo.dat 1 16 -95.5 -1.5 0 -19 0 0 0 1 0 0 0 -2.5 rect2p.dat 1 16 -72.5 -29.25 0 0 1 0 23.75 0 0 0 0 -2.5 rect2p.dat 1 16 -118.5 -24.25 0 0 -1 0 -18.75 0 0 0 0 -2.5 rect2p.dat 0 BFC INVERTNEXT 1 16 -114.5 -5.5 -2.5 -4 0 0 0 0 4 0 5 0 1-4cylo.dat 4 16 -12.5 13.5 2.5 -58.5 13.5 2.5 -58.5 -1.5 2.5 -12.5 -1.5 2.5 4 16 -72.5 -1.5 2.5 -72.5 13.5 2.5 -118.5 13.5 2.5 -118.5 -1.5 2.5 4 16 -58.5 -1.5 2.5 -72.5 -1.5 2.5 -72.5 -57 2.5 -58.5 -57 2.5 4 16 -72.5 13.5 2.5 -72.5 -1.5 2.5 -58.5 -1.5 2.5 -58.5 13.5 2.5 4 16 -72.5 46 2.5 -72.5 13.5 2.5 -58.5 13.5 2.5 -58.5 46 2.5 0 BFC INVERTNEXT 1 16 -16.5 42 2.5 4 0 0 0 0 4 0 -5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -54.5 42 2.5 -4 0 0 0 0 4 0 -5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -16.5 17.5 2.5 4 0 0 0 0 -4 0 -5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -54.5 -5.5 2.5 -4 0 0 0 0 4 0 -5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -16.5 -5.5 2.5 4 0 0 0 0 4 0 -5 0 1-4cylo.dat 3 16 -12.5 -47 -2.5 -9.5 -37 -2.5 2.5 -57.67 -2.5 0 BFC INVERTNEXT 1 16 -76.5 17.5 2.5 4 0 0 0 0 -4 0 -5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -114.5 42 2.5 -4 0 0 0 0 4 0 -5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -76.5 42 2.5 4 0 0 0 0 4 0 -5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -114.5 17.5 2.5 -4 0 0 0 0 -4 0 -5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -76.5 -5.5 2.5 4 0 0 0 0 4 0 -5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -114.5 -5.5 2.5 -4 0 0 0 0 4 0 -5 0 1-4cylo.dat 4 16 -58.5 -1.5 -2.5 -58.5 13.5 -2.5 -12.5 13.5 -2.5 -12.5 -1.5 -2.5 4 16 -118.5 13.5 -2.5 -72.5 13.5 -2.5 -72.5 -1.5 -2.5 -118.5 -1.5 -2.5 4 16 -72.5 -57 -2.5 -72.5 -1.5 -2.5 -58.5 -1.5 -2.5 -58.5 -57 -2.5 4 16 -58.5 -1.5 -2.5 -72.5 -1.5 -2.5 -72.5 13.5 -2.5 -58.5 13.5 -2.5 4 16 -58.5 13.5 -2.5 -72.5 13.5 -2.5 -72.5 46 -2.5 -58.5 46 -2.5 1 16 -65.5 46 -2.5 0 0 -135 -120 0 0 0 5 0 48\1-12cylo.dat 1 16 -65.5 46 -2.5 0 0 -135 -120 0 0 0 1 0 48\1-12chrd.dat 1 16 -65.5 46 2.5 0 0 -135 -120 0 0 0 -1 0 48\1-12chrd.dat 1 16 -65.5 46 -2.5 0 0 135 -120 0 0 0 5 0 48\1-12cylo.dat 1 16 -65.5 46 -2.5 0 0 135 -120 0 0 0 1 0 48\1-12chrd.dat 1 16 -65.5 46 2.5 0 0 135 -120 0 0 0 -1 0 48\1-12chrd.dat 1 16 -133.25 -57.795 0 0.25 0 0 -0.125 1 0 0 0 2.5 rect2p.dat 1 16 2.25 -57.795 0 0.25 0 0 0.125 1 0 0 0 2.5 rect2p.dat 1 16 -16.5 -43 -2.5 4 0 0 0 0 -4 0 1 0 3-16ndis.dat 1 16 -16.5 -43 2.5 4 0 0 0 0 -4 0 -1 0 3-16ndis.dat 1 16 -114.5 -43 -2.5 -4 0 0 0 0 -4 0 1 0 3-16ndis.dat 1 16 -114.5 -43 2.5 -4 0 0 0 0 -4 0 -1 0 3-16ndis.dat 0 BFC INVERTNEXT 1 16 -114.5 -43 2.5 -4 0 0 0 0 -4 0 -5 0 3-16cylo.dat 0 BFC INVERTNEXT 1 16 -16.5 -43 -2.5 4 0 0 0 0 -4 0 5 0 3-16cylo.dat 1 16 -54.5 -53 -2.5 -4 0 0 0 0 -4 0 1 0 1-4ndis.dat 1 16 -54.5 -53 2.5 -4 0 0 0 0 -4 0 -1 0 1-4ndis.dat 1 16 -76.5 -53 -2.5 4 0 0 0 0 -4 0 1 0 1-4ndis.dat 1 16 -76.5 -53 2.5 4 0 0 0 0 -4 0 -1 0 1-4ndis.dat 0 BFC INVERTNEXT 1 16 -76.5 -53 -2.5 4 0 0 0 0 -4 0 5 0 1-4cylo.dat 0 BFC INVERTNEXT 1 16 -54.5 -53 2.5 -4 0 0 0 0 -4 0 -5 0 1-4cylo.dat 4 16 -28.9461 -51.6304 2.5 -14.9692 -46.6956 2.5 -14.9692 -46.6956 -2.5 -28.9461 -51.6304 -2.5 4 16 -41.3231 -54.7652 2.5 -28.9461 -51.6304 2.5 -28.9461 -51.6304 -2.5 -41.3231 -54.7652 -2.5 4 16 -54.5 -57 2.5 -41.3231 -54.7652 2.5 -41.3231 -54.7652 -2.5 -54.5 -57 -2.5 2 24 -28.9461 -51.6304 2.5 -14.9692 -46.6956 2.5 2 24 -41.3231 -54.7652 2.5 -28.9461 -51.6304 2.5 2 24 -54.5 -57 2.5 -41.3231 -54.7652 2.5 2 24 -41.3231 -54.7652 -2.5 -54.5 -57 -2.5 2 24 -28.9461 -51.6304 -2.5 -41.3231 -54.7652 -2.5 2 24 -14.9692 -46.6956 -2.5 -28.9461 -51.6304 -2.5 5 24 -28.9461 -51.6304 -2.5 -28.9461 -51.6304 2.5 -41.3231 -54.7652 2.5 -14.9692 -46.6956 2.5 5 24 -41.3231 -54.7652 -2.5 -41.3231 -54.7652 2.5 -54.5 -57 2.5 -28.9461 -51.6304 2.5 4 16 2 -57.92 2.5 2.5 -57.67 2.5 -12.5 -47 2.5 -14.9692 -46.6956 2.5 3 16 2 -57.92 2.5 -14.9692 -46.6956 2.5 -28.9461 -51.6304 2.5 4 16 2 -57.92 2.5 -28.9461 -51.6304 2.5 -41.3231 -54.7652 2.5 -65.5 -74 2.5 3 16 -65.5 -74 2.5 -41.3231 -54.7652 2.5 -54.5 -57 2.5 4 16 -116.0308 -46.6956 -2.5 -116.0308 -46.6956 2.5 -102.0539 -51.6304 2.5 -102.0539 -51.6304 -2.5 4 16 -102.0539 -51.6304 -2.5 -102.0539 -51.6304 2.5 -89.6769 -54.7652 2.5 -89.6769 -54.7652 -2.5 4 16 -89.6769 -54.7652 -2.5 -89.6769 -54.7652 2.5 -76.5 -57 2.5 -76.5 -57 -2.5 2 24 -102.0539 -51.6304 2.5 -116.0308 -46.6956 2.5 2 24 -89.6769 -54.7652 2.5 -102.0539 -51.6304 2.5 2 24 -76.5 -57 2.5 -89.6769 -54.7652 2.5 2 24 -89.6769 -54.7652 -2.5 -76.5 -57 -2.5 2 24 -102.0539 -51.6304 -2.5 -89.6769 -54.7652 -2.5 2 24 -116.0308 -46.6956 -2.5 -102.0539 -51.6304 -2.5 5 24 -102.0539 -51.6304 -2.5 -102.0539 -51.6304 2.5 -89.6769 -54.7652 2.5 -116.0308 -46.6956 2.5 5 24 -89.6769 -54.7652 -2.5 -89.6769 -54.7652 2.5 -76.5 -57 2.5 -102.0539 -51.6304 2.5 4 16 -118.5 -47 2.5 -133.5 -57.67 2.5 -133 -57.92 2.5 -116.0308 -46.6956 2.5 3 16 -116.0308 -46.6956 2.5 -133 -57.92 2.5 -102.0539 -51.6304 2.5 4 16 -89.6769 -54.7652 2.5 -102.0539 -51.6304 2.5 -133 -57.92 2.5 -65.5 -74 2.5 3 16 -89.6769 -54.7652 2.5 -65.5 -74 2.5 -76.5 -57 2.5 3 16 -54.5 -57 2.5 -76.5 -57 2.5 -65.5 -74 2.5 4 16 -12.5 -47 -2.5 2.5 -57.67 -2.5 2 -57.92 -2.5 -14.9692 -46.6956 -2.5 3 16 -14.9692 -46.6956 -2.5 2 -57.92 -2.5 -28.9461 -51.6304 -2.5 4 16 -41.3231 -54.7652 -2.5 2 -57.92 -2.5 -65.5 -74 -2.5 -54.5 -57 -2.5 4 16 -133 -57.92 -2.5 -133.5 -57.67 -2.5 -118.5 -47 -2.5 -116.0308 -46.6956 -2.5 3 16 -133 -57.92 -2.5 -116.0308 -46.6956 -2.5 -102.0539 -51.6304 -2.5 4 16 -133 -57.92 -2.5 -102.0539 -51.6304 -2.5 -89.6769 -54.7652 -2.5 -65.5 -74 -2.5 3 16 -65.5 -74 -2.5 -89.6769 -54.7652 -2.5 -76.5 -57 -2.5 3 16 -76.5 -57 -2.5 -54.5 -57 -2.5 -65.5 -74 -2.5 3 16 -28.9461 -51.6304 -2.5 2 -57.92 -2.5 -41.3231 -54.7652 -2.5 4 16 -118.5 46 -2.5 -118.5 -47 -2.5 -133.5 -57.67 -2.5 -133.5 58 -2.5 4 16 -118.5 46 -2.5 -133.5 58 -2.5 2.5 58 -2.5 -12.5 46 -2.5 4 16 -9.5 37 -2.5 -9.5 -37 -2.5 -12.5 -47 -2.5 -12.5 46 -2.5 4 16 0 37.6 -2.5 2.5 58 -2.5 2.5 -57.67 -2.5 0 -37.6 -2.5 4 16 -12.5 46 -2.5 -3.2 37.6 -2.5 -4.4 37 -2.5 -9.5 37 -2.5 4 16 -3.2 37.6 -2.5 -12.5 46 -2.5 2.5 58 -2.5 0 37.6 -2.5 4 16 -133.5 -57.67 2.5 -118.5 -47 2.5 -118.5 46 2.5 -133.5 58 2.5 4 16 2.5 58 2.5 -133.5 58 2.5 -118.5 46 2.5 -12.5 46 2.5 4 16 -12.5 -47 2.5 -9.5 -37 2.5 -9.5 37 2.5 -12.5 46 2.5 4 16 2.5 -57.67 2.5 2.5 58 2.5 0 37.6 2.5 0 -37.6 2.5 4 16 -4.4 37 2.5 -3.2 37.6 2.5 -12.5 46 2.5 -9.5 37 2.5 4 16 2.5 58 2.5 -12.5 46 2.5 -3.2 37.6 2.5 0 37.6 2.5 5 24 -133 -57.92 2.5 -133 -57.92 -2.5 -117.1645 -64.868 -2.5 -133.5 -57.67 -2.5 5 24 2 -57.92 2.5 2 -57.92 -2.5 -13.8355 -64.868 -2.5 2.5 -57.67 -2.5
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Philippe Hurbain [Philo]
Senior Part Reviewer
initially submitted the part.
2021-01-09 16:10:03
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2021-01-19 19:15:01
Vincent Messenet [Cheenzo]
Part Header Editor
posted a vote of Certify.
2021-03-20 10:40:01
[PTadmin]
Part Author
edited the part header.
2021-03-27 15:05:02
Chris Dee [cwdee]
Part Library Admin
posted a vote of Admin Review.
2021-03-27 15:05:02
Massimo Maso [Sirio]
Part Header Editor
posted a vote of Hold.
2021-12-16 23:20:01
Orientation and origin must coincide with those of 2206
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2021-12-17 16:00:01
I don't mind this orientation since the windows are used in both LHS and RHS positions. Hinged both left and right.
4247a would end up with the print on the backside. Don't like that.

But all of the assembly shortcuts are incorrect, using the window, or door, in a mirrored position, instead of in a rotated position.
2207c01, 2201c01 and 6431c01, 6431c03, 6431c03
This makes them impossible to inline in LDCad.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2025-01-06 13:16:39
* I'm fine with the orientation as well, but it misses two complementaries:

2 20 -133 -57.92 2.5 -133 -57.92 -2.5
2 20 2 -57.92 2.5 2 -57.92 -2.5
Philippe Hurbain [Philo]
Senior Part Reviewer
submitted a new version of the part.
2025-01-06 16:17:24
added compconds.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2025-01-06 16:55:20
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2025-01-08 14:42:56
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2025-01-13 01:38:53
Orion Pobursky [OrionP]
Part Library Admin
2025-01-20 03:34:50
Release 2025-01
