Official File parts/31171.dat
Part Attributes:
File Header:

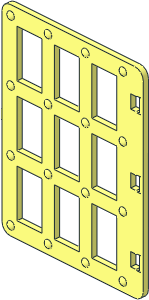

0 Duplo Door 1 x 4 x 4 with Flat Top with 9 Panes
0 Name: 31171.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Door
0 !KEYWORDS Gate, grille, jail, Prison
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\65111s01.dat
0 BFC INVERTNEXT
1 16 -35 -55 2.5 12 0 0 0 0 21.5 0 -5 0 box4.dat
0 BFC INVERTNEXT
1 16 -71 -55 2.5 12 0 0 0 0 21.5 0 -5 0 box4.dat
0 BFC INVERTNEXT
1 16 -107 -55 2.5 12 0 0 0 0 21.5 0 -5 0 box4.dat
4 16 -95 -33.5 2.5 -95 -76.5 2.5 -83 -76.5 2.5 -83 -33.5 2.5
4 16 -59 -33.5 2.5 -59 -76.5 2.5 -47 -76.5 2.5 -47 -33.5 2.5
4 16 -83 -76.5 -2.5 -95 -76.5 -2.5 -95 -33.5 -2.5 -83 -33.5 -2.5
4 16 -47 -76.5 -2.5 -59 -76.5 -2.5 -59 -33.5 -2.5 -47 -33.5 -2.5
0 BFC INVERTNEXT
1 16 -35 0 2.5 12 0 0 0 0 21.5 0 -5 0 box4.dat
0 BFC INVERTNEXT
1 16 -71 0 2.5 12 0 0 0 0 21.5 0 -5 0 box4.dat
0 BFC INVERTNEXT
1 16 -107 0 2.5 12 0 0 0 0 21.5 0 -5 0 box4.dat
4 16 -95 21.5 2.5 -95 -21.5 2.5 -83 -21.5 2.5 -83 21.5 2.5
4 16 -59 21.5 2.5 -59 -21.5 2.5 -47 -21.5 2.5 -47 21.5 2.5
4 16 -83 -21.5 -2.5 -95 -21.5 -2.5 -95 21.5 -2.5 -83 21.5 -2.5
4 16 -47 -21.5 -2.5 -59 -21.5 -2.5 -59 21.5 -2.5 -47 21.5 -2.5
0 BFC INVERTNEXT
1 16 -35 55 2.5 12 0 0 0 0 21.5 0 -5 0 box4.dat
0 BFC INVERTNEXT
1 16 -71 55 2.5 12 0 0 0 0 21.5 0 -5 0 box4.dat
0 BFC INVERTNEXT
1 16 -107 55 2.5 12 0 0 0 0 21.5 0 -5 0 box4.dat
4 16 -95 76.5 2.5 -95 33.5 2.5 -83 33.5 2.5 -83 76.5 2.5
4 16 -59 76.5 2.5 -59 33.5 2.5 -47 33.5 2.5 -47 76.5 2.5
4 16 -83 33.5 -2.5 -95 33.5 -2.5 -95 76.5 -2.5 -83 76.5 -2.5
4 16 -47 33.5 -2.5 -59 33.5 -2.5 -59 76.5 -2.5 -47 76.5 -2.5
1 16 -53 -82.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -53 -82.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -17 -82.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -17 -82.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -125 -82.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -125 -82.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -89 -82.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -89 -82.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -53 -27.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -53 -27.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -17 -27.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -17 -27.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -125 -27.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -125 -27.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -89 -27.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -89 -27.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -53 27.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -53 27.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -17 27.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -17 27.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -125 27.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -125 27.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -89 27.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -89 27.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -53 82.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -53 82.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -17 82.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -17 82.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -125 82.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -125 82.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
1 16 -89 82.5 -2.5 3.5 0 0 0 0 3.5 0 -1.5 0 4-8sphe.dat
1 16 -89 82.5 -2.5 3.5 0 0 0 0 3.5 0 -1 0 4-4edge.dat
4 16 -5.5 -91 2.5 -23 -76.5 2.5 -119 -76.5 2.5 -125.5 -91 2.5
3 16 -125.5 -91 2.5 -119 -76.5 2.5 -133.5 -83 2.5
3 16 -5.5 -91 2.5 -9.5 -68 2.5 -23 -76.5 2.5
4 16 -119 -21.5 2.5 -119 -33.5 2.5 -23 -33.5 2.5 -23 -21.5 2.5
4 16 -119 76.5 2.5 -23 76.5 2.5 -5.5 91 2.5 -125.5 91 2.5
3 16 -119 76.5 2.5 -125.5 91 2.5 -133.5 83 2.5
3 16 -9.5 68 2.5 -5.5 91 2.5 -23 76.5 2.5
4 16 -23 33.5 2.5 -119 33.5 2.5 -119 21.5 2.5 -23 21.5 2.5
4 16 -23 76.5 2.5 -23 -76.5 2.5 -9.5 -68 2.5 -9.5 68 2.5
4 16 -119 76.5 2.5 -133.5 83 2.5 -133.5 -83 2.5 -119 -76.5 2.5
4 16 -119 -76.5 -2.5 -23 -76.5 -2.5 -5.5 -91 -2.5 -125.5 -91 -2.5
3 16 -119 -76.5 -2.5 -125.5 -91 -2.5 -133.5 -83 -2.5
3 16 -9.5 -68 -2.5 -5.5 -91 -2.5 -23 -76.5 -2.5
4 16 -23 -33.5 -2.5 -119 -33.5 -2.5 -119 -21.5 -2.5 -23 -21.5 -2.5
4 16 -5.5 91 -2.5 -23 76.5 -2.5 -119 76.5 -2.5 -125.5 91 -2.5
3 16 -125.5 91 -2.5 -119 76.5 -2.5 -133.5 83 -2.5
3 16 -5.5 91 -2.5 -9.5 68 -2.5 -23 76.5 -2.5
4 16 -119 21.5 -2.5 -119 33.5 -2.5 -23 33.5 -2.5 -23 21.5 -2.5
4 16 -9.5 -68 -2.5 -23 -76.5 -2.5 -23 76.5 -2.5 -9.5 68 -2.5
4 16 -133.5 -83 -2.5 -133.5 83 -2.5 -119 76.5 -2.5 -119 -76.5 -2.5
1 16 -133.5 0 0 0 -2 0 0 0 4 1 0 0 box5.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-01-09 16:10:03
Indeed. Added latch.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2021-01-19 16:15:01
2023-08-01 07:56:47
2023-08-15 16:02:14
2023-08-25 01:30:50
Release 2023-04
