Unofficial File parts/32173.dat
Part Attributes:
File Header:

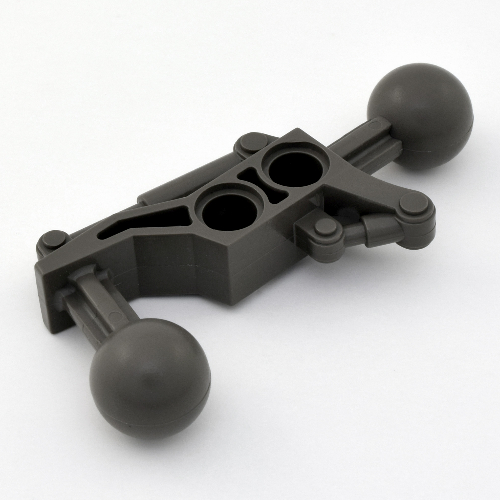

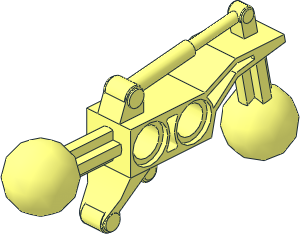

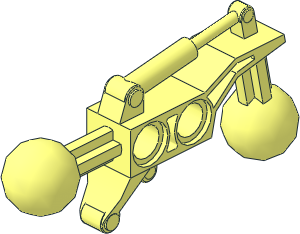

0 Constraction Limb 6 x 2 with Ball Joints and 2 Pinhole
0 Name: 32173.dat
0 Author: Marc Klein [marckl]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS arm, bionicle, hip, Slizer, thigh, throwbots
0 !HISTORY 2001-12-31 [PTadmin] Official Update 2001-03
0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2014-11-24 [MagFors] Made BFC compliant, primitive substitution
0 !HISTORY 2014-12-23 [PTadmin] Official Update 2014-02
0 !HISTORY 2022-07-13 [SwampKryakwa] Improved part detalisation, fixed condline placement
0 !HISTORY 2023-01-04 [MMR1988] Removed Trailing Zeros
