File Detail parts/3233.dat

Official File parts/3233.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

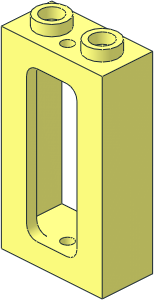

Train Window 1 x 2 x 3 with Underside Ridged Stud Holders

File Header:

0 Train Window  1 x  2 x  3 with Underside Ridged Stud Holders
0 Name: 3233.dat
0 Author: Vincent Messenet [Cheenzo]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS BrickLink 4035

0 !HISTORY 2023-12-13 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-12-13 [Cheenzo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4035s01.dat
1 16 -5 66.75 3.5 2 0 -2 0 5 0 2.5 0 2.5 tri3a1.dat
1 16 -5 66.75 -3.5 -2 0 2 0 5 0 -2.5 0 -2.5 tri3a4.dat
1 16 5 66.75 3.5 2 0 -2 0 5 0 2.5 0 2.5 tri3a1.dat
1 16 5 66.75 -3.5 -2 0 2 0 5 0 -2.5 0 -2.5 tri3a4.dat
0 BFC INVERTNEXT
1 16 0 72 -3.75 0 0 3.75 0 -5.25 0 -3.75 0 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 0 72 -3.75 0 0 -3.75 0 -5.25 0 -3.75 0 0 1-8cylo.dat
1 16 0 72 -3.75 0 0 3.75 0 -1 0 -3.75 0 0 1-8ndis.dat
1 16 0 72 -3.75 0 0 -3.75 0 -1 0 -3.75 0 0 1-8ndis.dat
1 16 0 66.75 -3.75 0 0 3.75 0 -1 0 -3.75 0 0 1-8chrd.dat
1 16 0 66.75 -3.75 0 0 -3.75 0 -1 0 -3.75 0 0 1-8chrd.dat
4 16 -3 66.75 -6 -2.25 66.75 -6 0 66.75 -7.5 -2.651625 66.75 -6.401625
3 16 -2.25 66.75 -6 0 66.75 -6 0 66.75 -7.5
4 16 2.25 66.75 -6 3 66.75 -6 2.651625 66.75 -6.401625 0 66.75 -7.5
3 16 0 66.75 -7.5 0 66.75 -6 2.25 66.75 -6
4 16 -2.651625 66.75 -6.401625 -2.651625 72 -6.401625 -3 72 -6 -3 66.75 -6
4 16 3 72 -6 2.651625 72 -6.401625 2.651625 66.75 -6.401625 3 66.75 -6
4 16 -16 72 -6 -16 66.75 -6 -3 66.75 -6 -3 72 -6
4 16 3 66.75 -6 16 66.75 -6 16 72 -6 3 72 -6
4 16 -20 72 -10 -16 72 -6 -3 72 -6 -3.75 72 -7.5
4 16 3 72 -6 16 72 -6 20 72 -10 3.75 72 -7.5
3 16 -20 72 -10 -3.75 72 -7.5 0 72 -7.5
4 16 0 72 -7.5 3.75 72 -7.5 20 72 -10 -20 72 -10
3 16 -3.75 72 -7.5 -3 72 -6 -2.651625 72 -6.401625
3 16 3.75 72 -7.5 2.651625 72 -6.401625 3 72 -6
2 24 -2.651625 72 -6.401625 -3 72 -6
2 24 2.651625 72 -6.401625 3 72 -6
2 24 2.651625 66.75 -6.401625 3 66.75 -6
2 24 -2.651625 66.75 -6.401625 -3 66.75 -6
2 24 -16 66.75 -6 -7 66.75 -6
2 24 7 66.75 -6 16 66.75 -6
2 24 -3 72 -6 -3 71.75 -6
2 24 3 72 -6 3 71.75 -6
2 24 -3 72 -6 -16 72 -6
2 24 3 72 -6 16 72 -6
2 24 -7 71.75 -6 -7 66.75 -6
2 24 -7 71.75 -6 -3 71.75 -6
2 24 7 66.75 -6 7 71.75 -6
2 24 7 71.75 -6 3 71.75 -6
5 24 3 66.75 -6 3 71.75 -6 2.651625 72 -6.401625 16 66.75 -6
5 24 -3 71.75 -6 -3 66.75 -6 -2.651625 66.75 -6.401625 -16 72 -6
5 24 2.651625 72 -6.401625 2.651625 66.75 -6.401625 3 66.75 -6 1.435125 66.75 -7.214625
5 24 -2.651625 72 -6.401625 -2.651625 66.75 -6.401625 -3 66.75 -6 -1.435125 66.75 -7.214625

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Orion Pobursky [OrionP]

initially submitted the part.

2022-09-07 23:47:51

Philippe Hurbain [Philo]

made the following comment.

2023-04-15 12:29:52

Maybe it would be time to add top/bottom window holes to 4035?

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-12-14 13:36:11

I've sent an updated version of official 4035 including holes and without stud3 as seen here:
https://bricdyonisos.com/index.php?id_product=3022&controller=product

3233 has a different underside

Max Martin Richter [MMR1988]

edited the part header.

2024-01-09 20:37:47

Header Edits

description:
Window 1 x 2 x 3 Train with Underside Ridged Stud Holders
to
Window 1 x 2 x 3 Train with Underside Ridged Stud Holders

Max Martin Richter [MMR1988]

posted a vote of Hold.

2024-01-09 20:42:56

These prims a too long in y direction so that the top edge is not visible but inside the part:
1 16 -5.875 69.125 4.875 0 1 1.125 2.375 0 0 0 0 -1.125 rect.dat
1 16 -3.625 69.125 4.875 0 -1 1.125 2.375 0 0 0 0 1.125 rect3.dat
1 16 6.125 69.125 4.875 0 -1 1.375 2.375 0 0 0 0 1.125 rect3.dat
1 16 3.625 69.125 4.875 0 1 1.125 2.375 0 0 0 0 -1.125 rect.dat

1 16 -3.875 69.125 -4.875 0 -1 1.125 -2.375 0 0 0 0 -1.125 rect3.dat
1 16 -6.125 69.125 -4.875 0 1 -1.125 2.375 0 0 0 0 -1.125 rect.dat
1 16 3.875 69.125 -4.875 0 1 -1.125 2.375 0 0 0 0 -1.125 rect3.dat
1 16 6.375 69.125 -4.875 0 -1 -1.375 2.375 0 0 0 0 1.125 rect.dat

Rene Rechthaler [Blechtaler]

made the following comment.

2024-01-09 20:49:15

would it help to use tri3a1.dat?
(yes I know you dont like rotated prims)

Magnus Forsberg [MagFors]

made the following comment.

2024-01-09 21:51:46

Yes, tri3a1 should be used here.

Rotation on circular primitives should be avoided. But rectlinear box and tri prims are OK to use rotated.
The problem is usually due to rounding errors, not rotation.
Deformation of the tri3a1 into a good position is possible here without a rotation.
Read more here about deformation of primitives:
https://jc-tchang.philohome.com/manuel/prim_def.htm

Max Martin Richter [MMR1988]

posted a vote of Hold.

2024-01-09 21:53:49

No need for rotation here. Just scaling:
1 16 -4.75 68 3.75 2.25 0 -2.25 0 3.5 0 2.25 0 2.25 tri3a1.dat
1 16 -4.75 68 -3.75 -2.25 0 2.25 0 3.5 0 -2.25 0 -2.25 tri3a1.dat
1 16 4.75 68 3.75 2.25 0 -2.25 0 3.5 0 2.25 0 2.25 tri3a1.dat
1 16 4.75 68 -3.75 -2.25 0 2.25 0 3.5 0 -2.25 0 -2.25 tri3a1.dat

BTW: the "original" triangles are all differently shaped. :-/

Max Martin Richter [MMR1988]

made the following comment.

2024-01-10 08:16:15

Maybe we can create a primitive containing the 4 prisms as we have several parts in the library that could use them.
While searching for them I found out, that almost al of them are modelled (dimensions and shape) a bit different.
Are they different at the real parts as well?

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2024-04-13 08:16:58

Used tri3a1 prims

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2024-04-13 12:10:40

Magnus Forsberg [MagFors]

posted a vote of Hold.

2024-04-13 13:30:14

The tri3a1 prims are too short.

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2024-04-13 19:32:52

Is it better with this size?

Magnus Forsberg [MagFors]

made the following comment.

2024-04-13 20:32:20

No, still to short.

Why "Window 1 x 2 x 3 Train ..." when the other part is "Train Window 1 x 2 x 3" ?

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2024-04-13 21:44:50

Resized tri3a1 and aligned description with 4035

Magnus Forsberg [MagFors]

made the following comment.

2024-04-14 06:07:00

No.
The "roof" of the cavity is at 66.75, so the prism need to be moved up to that level, and then made longer.

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2024-04-14 07:37:30

Pffff it took me so much time to understand your point... LDPE did not show me the latest version of 4035...

Magnus Forsberg [MagFors]

posted a vote of Certify.

2024-04-17 15:27:33

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2024-05-06 10:32:51

* Understud:

https://rebrickable.com/parts/3233/window-1-x-2-x-3-train-with-inside-stud-holder/

* Missing holes (also in 4035)

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2024-05-21 06:23:09

Reworked bottom shape

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2024-05-21 13:20:34

* Missing complementaries:

5 61 2.651625 72 -6.401625 2.651625 66.75 -6.401625 3 66.75 -6 1.435125 66.75 -7.214625
5 61 -2.651625 72 -6.401625 -2.651625 66.75 -6.401625 -3 66.75 -6 -1.435125 66.75 -7.214625

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2024-05-21 20:09:03

Fixed two conds and added missing ones

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2024-05-22 11:31:58

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-05-22 16:11:46

Orion Pobursky [OrionP]

posted a vote of Admin Review.
