Official File parts/32476.dat
Part Attributes:
File Header:

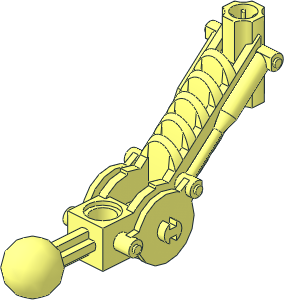

0 Constraction Limb 4 x 7 Bent 45 with Ball Joint and Opposing Axleholes
0 Name: 32476.dat
0 Author: Santeri Piippo [arezey]
0 !LDRAW_ORG Part UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS bionicle, BrickLink x240, Technic
0 !HISTORY 2010-09-10 {LEGO Universe Team} Original part shape
0 !HISTORY 2010-09-11 [arezey] File preparation for LDraw Parts Tracker
0 !HISTORY 2021-04-03 [Sirio] Fixed distance between ball joint and connhole and reworked
0 !HISTORY 2022-03-26 [SwampKryakwa] Rotated to match orientation of other constractions parts
0 !HISTORY 2024-04-21 [Sirio] Changed edge to conditional lines; fixed double points
0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03
Show contents
0 // Subparts
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\32476s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32476s01.dat
0 // Primitives
1 16 0 0 0 0 0 -12.81 0 -12.81 0 -12.81 0 0 8-8sphe.dat
1 16 0 0 0 0 0 -1 1 0 0 0 -1 0 axlesphe.dat
1 16 0 0 30 0 0 -1 1 0 0 0 -17.19 0 axlehol8.dat
1 16 0 0 30 0 0 -1 1 0 0 0 -1 0 axlehol2.dat
1 16 0 0 30 0 0 -1 1 0 0 0 -1 0 axlehol9.dat
1 16 0 0 47.5332 0 0 -10 10 0 0 0 -17.5332 0 box3u4a.dat
1 16 0 10 40 0 0 -9 0 -1 0 -9 0 0 4-4ndis.dat
1 16 0 0 40 0 0 -1 0 -1 0 -1 0 0 connhole.dat
1 16 0 -10 40 0 0 -9 0 1 0 -9 0 0 4-4ndis.dat
1 16 0 0 50 -6 0 0 0 0 10 0 -1 0 rect.dat
1 16 6 0 60 0 -12 0 0 0 3 -6 0 0 4-4cylo.dat
1 16 0 -18.55345 74.75 -6 0 0 0 9.27845 2.475 0 0 -2.75 box2-7.dat
0 BFC INVERTNEXT
1 16 0 -30.1269 77.3 -6 0 0 0 10.5569 2.07 0 0 -2.3 box3u4a.dat
0 BFC INVERTNEXT
1 16 0 -7.8531 84.9 -6 0 0 0 -10.5569 2.07 0 0 -2.3 box3u4a.dat
0 BFC INVERTNEXT
1 16 0 -36.9669 84.9 -6 0 0 0 10.5569 2.07 0 0 -2.3 box3u4a.dat
0 BFC INVERTNEXT
1 16 0 -14.6931 92.5 -6 0 0 0 -10.5569 2.07 0 0 -2.3 box3u4a.dat
0 BFC INVERTNEXT
1 16 0 -43.8069 92.5 -6 0 0 0 10.5569 2.07 0 0 -2.3 box3u4a.dat
0 BFC INVERTNEXT
1 16 0 -21.5331 100.1 -6 0 0 0 -10.5569 2.07 0 0 -2.3 box3u4a.dat
0 BFC INVERTNEXT
1 16 0 -50.6469 100.1 -6 0 0 0 10.5569 2.07 0 0 -2.3 box3u4a.dat
1 16 0 -31.58155 105.4 6 0 0 0 0 -5.27845 0 -1 0 rect3.dat
1 16 0 -50.13845 105.4 6 0 0 0 0 5.27845 0 -1 0 rect3.dat
1 16 0 -30 124.447 -3.44399 0 17.3142 0 -40 0 -12.9464 0 -2.57519 1-16cylo.dat
1 16 0 -30 115.5538 3.44399 0 -17.3142 0 -1 0 12.9464 0 2.57519 1-16chrd.dat
1 16 0 -30 124.4462 3.44399 0 -17.3142 0 -1 0 -12.9464 0 -2.57519 1-16chrd.dat
1 16 0 -30 120 0 0 -.75 0 -1 0 -.75 0 0 4-4ring8.dat
1 16 0 -30 120 0 0 -6 0 -1 0 -6 0 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 -32.5 120 0 0 -6 0 2.5 0 -6 0 0 4-4cyli.dat
1 16 0 -32.5 120 -1 0 0 0 -1 0 0 0 -1 axl2hol3.dat
1 16 0 -32.5 120 -1 0 0 0 -1 0 0 0 -1 axl2ho10.dat
1 16 0 -32.5 120 -1 0 0 0 -1 0 0 0 -1 axl2hol9.dat
1 16 0 -32.5 120 0 0 -1 0 -17.25 0 -1 0 0 axl2hol8.dat
1 16 0 -49.75 120 -3 0 0 0 -1 0 0 0 3 4-4ring1.dat
0 BFC INVERTNEXT
1 16 0 -50.25 120 -3 0 0 0 .5 0 0 0 -3 4-4cylo.dat
1 16 0 -50.25 120 -3 0 0 0 1 0 0 0 -3 4-4ring1.dat
1 16 0 -49.75 120 0 0 -1 0 1 0 -1 0 0 axl2hol2.dat
1 16 0 -49.75 120 0 0 -1 0 1 0 -1 0 0 axl2hol3.dat
1 16 0 -49.75 120 0 0 -1 0 1 0 -1 0 0 axl2hol9.dat
1 16 0 -50.25 120 0 0 -1 0 1 0 -1 0 0 axl2hol9.dat
1 16 0 -50.25 120 0 0 -1 0 1 0 -1 0 0 axl2hol3.dat
1 16 0 -50.25 120 0 0 -1 0 1 0 -1 0 0 axl2hol2.dat
1 16 0 -67.5 120 0 0 -1 0 17.25 0 -1 0 0 axl2hol8.dat
1 16 0 -67.5 120 0 0 -1 0 1 0 -1 0 0 axl2hol9.dat
1 16 0 -67.5 120 0 0 -1 0 1 0 -1 0 0 axl2ho10.dat
1 16 0 -67.5 120 0 0 -1 0 1 0 -1 0 0 axl2hol3.dat
0 BFC INVERTNEXT
1 16 0 -67.5 120 0 0 -6 0 -2.5 0 -6 0 0 4-4cyli.dat
1 16 0 -70 120 0 0 -6 0 -1 0 -6 0 0 4-4edge.dat
1 16 0 -70 120 0 0 -.75 0 1 0 -.75 0 0 4-4ring8.dat
1 16 0 -70 115.5538 3.44399 0 -17.3142 0 1 0 12.9464 0 2.57519 1-16chrd.dat
1 16 0 -70 124.4462 3.44399 0 -17.3142 0 1 0 -12.9464 0 -2.57519 1-16chrd.dat
1 16 0 -30 115.553 3.44399 0 -17.3142 0 -40 0 12.9464 0 2.57519 1-16cylo.dat
0 // Faces
3 16 0 10 31 10 10 30 -10 10 30
3 16 0 10 49 -6 10 50 6 10 50
3 16 0 -10 31 -10 -10 30 10 -10 30
3 16 0 -10 49 6 -10 50 -6 -10 50
3 16 0 -28.5989 72.3321 -6 -25.3569 72 6 -25.3569 72
3 16 0 -30.7011 74.6679 6 -28.0569 75 -6 -28.0569 75
3 16 0 1.75 77.5 6 -11.75 77.5 -6 -11.75 77.5
3 16 0 -35.4389 79.9321 -6 -32.1969 79.6 6 -32.1969 79.6
3 16 0 -2.5411 82.2679 -6 -5.7831 82.6 6 -5.7831 82.6
3 16 0 -37.5411 82.2679 6 -34.8969 82.6 -6 -34.8969 82.6
3 16 0 -7.2789 87.5321 6 -9.9231 87.2 -6 -9.9231 87.2
3 16 0 -42.2789 87.5321 -6 -39.0369 87.2 6 -39.0369 87.2
3 16 0 -9.3811 89.8679 -6 -12.6231 90.2 6 -12.6231 90.2
3 16 0 -44.3811 89.8679 6 -41.7369 90.2 -6 -41.7369 90.2
3 16 0 -14.1189 95.1321 6 -16.7631 94.8 -6 -16.7631 94.8
3 16 0 -49.1189 95.1321 -6 -45.8769 94.8 6 -45.8769 94.8
3 16 0 -16.2211 97.4679 -6 -19.4631 97.8 6 -19.4631 97.8
3 16 0 -51.2211 97.4679 6 -48.5769 97.8 -6 -48.5769 97.8
3 16 0 -20.9589 102.7321 6 -23.6031 102.4 -6 -23.6031 102.4
3 16 0 -55.9589 102.7321 -6 -52.7169 102.4 6 -52.7169 102.4
3 16 0 -23.0611 105.0679 -6 -26.3031 105.4 6 -26.3031 105.4
3 16 0 -58.0611 105.0679 6 -55.4169 105.4 -6 -55.4169 105.4
4 16 6 -36.86 105.4 -6 -36.86 105.4 -3.4436 -42.35 111.5 3.4442 -42.35 111.5
4 16 6 -44.86 105.4 3.4442 -50.35 111.5 -3.4436 -50.35 111.5 -6 -44.86 105.4
4 16 -3.6933 -30 112.7558 3.6933 -30 112.7558 3.4436 -30 111.5004 -3.444 -30 111.5006
3 16 -3.6933 -30 112.7558 0 -30 113.25 3.6933 -30 112.7558
3 16 -3.6933 -30 127.2442 3.6933 -30 127.2442 0 -30 126.75
4 16 -3.6933 -30 127.2442 -3.4442 -30 128.4997 3.4436 -30 128.4996 3.6933 -30 127.2442
4 16 -3.6933 -70 112.7558 -3.444 -70 111.5006 3.4436 -70 111.5004 3.6933 -70 112.7558
3 16 -3.6933 -70 112.7558 3.6933 -70 112.7558 0 -70 113.25
3 16 -3.6933 -70 127.2442 0 -70 126.75 3.6933 -70 127.2442
4 16 -3.6933 -70 127.2442 3.6933 -70 127.2442 3.4436 -70 128.4996 -3.4442 -70 128.4997
0 // Edges
2 24 3.4442 -42.35 111.5 -3.4436 -42.35 111.5
2 24 3.4442 -50.35 111.5 -3.4436 -50.35 111.5
2 24 6 -11.75 77.5 -6 -11.75 77.5
0 // Conditional lines
5 24 0 1.75 77.5 0 -2.5411 82.2679 1.5217 1.5995 77.5 -1.5217 1.5995 77.5
5 24 -6 -25.3569 72 6 -25.3569 72 0 -28.5989 72.3321 -6 -6.8 72
5 24 -6 -28.0569 75 6 -28.0569 75 0 -30.7011 74.6679 -6 -17.5 75
5 24 -6 -32.1969 79.6 6 -32.1969 79.6 0 -35.4389 79.9321 -6 -21.64 79.6
5 24 -6 -34.8969 82.6 6 -34.8969 82.6 0 -37.5411 82.2679 -6 -24.34 82.6
5 24 -6 -39.0369 87.2 6 -39.0369 87.2 0 -42.2789 87.5321 -6 -28.48 87.2
5 24 -6 -41.7369 90.2 6 -41.7369 90.2 0 -44.3811 89.8679 -6 -31.18 90.2
5 24 -6 -45.8769 94.8 6 -45.8769 94.8 0 -49.1189 95.1321 -6 -35.32 94.8
5 24 -6 -48.5769 97.8 6 -48.5769 97.8 0 -51.2211 97.4679 -6 -38.02 97.8
5 24 -6 -52.7169 102.4 6 -52.7169 102.4 0 -55.9589 102.7321 -6 -42.16 102.4
5 24 -6 -55.4169 105.4 6 -55.4169 105.4 0 -58.0611 105.0679 -6 -44.86 105.4
5 24 -6 -5.7831 82.6 6 -5.7831 82.6 0 -2.5411 82.2679 -6 -16.34 82.6
5 24 -6 -9.9231 87.2 6 -9.9231 87.2 0 -7.2789 87.5321 -6 -20.48 87.2
5 24 -6 -12.6231 90.2 6 -12.6231 90.2 0 -9.3811 89.8679 -6 -23.18 90.2
5 24 -6 -16.7631 94.8 6 -16.7631 94.8 0 -14.1189 95.1321 -6 -27.32 94.8
5 24 -6 -19.4631 97.8 6 -19.4631 97.8 0 -16.2211 97.4679 -6 -30.02 97.8
5 24 -6 -23.6031 102.4 6 -23.6031 102.4 0 -20.9589 102.7321 -6 -34.16 102.4
5 24 -6 -26.3031 105.4 6 -26.3031 105.4 0 -23.0611 105.0679 -6 -36.86 105.4
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2010-09-12 19:15:04
contains CERTIFY INVERTNEXT
2010-10-19 14:50:06
s/BFC CERTIFY INVERTNEXT/BFC INVERTNEXT/ done by admin.
2010-10-19 19:15:03
removing hold
2011-02-04 20:35:02
bump
contains 2 lines
0 BFC CERTIFY CCW
0 BFC CERTIFY CCW
nuked extra "BFC CERTIFY CCW"
Existing certification-votes were deleted.
Existing certification-votes were deleted.
I think this should get rotated 90 degrees
to better match the orientatio of the other balljoint parts:
the others are all upright, not lying, checkout the balljoint
parts by looking at tbe parents of the axlesphe:
http://www.ldraw.org/cgi-bin/ptdetail.cgi?f=p/axlesphe.dat
to better match the orientatio of the other balljoint parts:
the others are all upright, not lying, checkout the balljoint
parts by looking at tbe parents of the axlesphe:
http://www.ldraw.org/cgi-bin/ptdetail.cgi?f=p/axlesphe.dat
2020-07-17 04:40:02
Would this be better placed in the Constraction category?
2020-07-17 07:45:01
Clearly yes, constraction!
Also, the axle near the joint ball is too short: https://img.bricklink.com/ItemImage/PL/x240.png
Fixed length.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
Missing condlines between the subfiles.
"Constraction Limb 4 x 7 Bent 45 with Ball Joint and Opposing Axleholes"
"Constraction Limb 4 x 7 Bent 45 with Ball Joint and Opposing Axleholes"
2021-06-06 07:00:01
2022-03-19 12:55:01
Rotated to match orientation of other constractions parts
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2022-04-10 20:15:02
The edges:
2 24 -6 -25.3569 72 6 -25.3569 72
2 24 6 -32.1969 79.6 -6 -32.1969 79.6
and the other don't belong here - beside the fact that rotated rects are a really Bad Idea (TH)
2 24 -6 -25.3569 72 6 -25.3569 72
2 24 6 -32.1969 79.6 -6 -32.1969 79.6
and the other don't belong here - beside the fact that rotated rects are a really Bad Idea (TH)
Removed wrong edge in main file and Y-scale of flat primitive in subpart.
What rotated rects are you referring to? It seems to me that they are just warped but still flat.
What rotated rects are you referring to? It seems to me that they are just warped but still flat.
2024-04-17 19:38:37
Missing vital condlines on all semi circular slopes.
2 5 -6 -25.3569 72 6 -25.3569 72
2 5 -6 -25.3569 72 6 -25.3569 72
Insert the conds, In my opinion the edges were better, but that's it.
There were some rounding issues left from the rotation and I had to update the subpart again.
There seems to be some double vertex as:
0 -51.2211 97.4679
but it looks like a false mistake.
There were some rounding issues left from the rotation and I had to update the subpart again.
There seems to be some double vertex as:
0 -51.2211 97.4679
but it looks like a false mistake.
2024-04-19 18:44:27
Missing History about the latest changes.
Added History line.
2024-04-21 07:21:50
Please add a history comment in the sub too.
2024-04-21 14:27:56
2024-04-22 19:27:48
2024-04-23 01:26:46
2024-04-28 11:50:17
Release 2024-03
