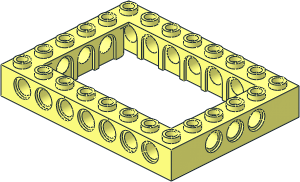

0 Technic Brick 6 x 8 with Open Centre 4 x 6 with Cross Underside Studs
0 Name: 32532a.dat
0 Author: Marc Klein [marckl]
0 !LDRAW_ORG Part UPDATE 2023-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2003-01-20 [sbliss] Reworked with primitives, BFC compliance
0 !HISTORY 2004-11-06 [PTadmin] Official Update 2004-04
0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2020-10-07 [Sirio] Reworked: subparted and correct shape of underside studs
0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03
0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32532s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\32532s01.dat
0 // Primitives
1 16 0 12 0 80 0 0 0 12 0 0 0 60 box0.dat
1 16 0 0 0 60 0 0 0 1 0 0 0 40 recte4.dat
0 // Upper studs
1 16 0 0 50 1 0 0 0 1 0 0 0 1 stug2-1x6.dat
1 16 -70 0 0 1 0 0 0 1 0 0 0 1 stug2-6x1.dat
1 16 70 0 0 1 0 0 0 1 0 0 0 1 stug2-6x1.dat
1 16 0 0 -50 1 0 0 0 1 0 0 0 1 stug2-1x6.dat
0 // Cross underside studs
1 16 -60 18 50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 -40 18 50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 -20 18 50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 0 18 50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 20 18 50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 40 18 50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 60 18 50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 -70 18 20 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 70 18 20 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 -70 18 0 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 70 18 0 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 -70 18 -20 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 70 18 -20 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 -60 18 -50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 -40 18 -50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 -20 18 -50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 0 18 -50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 20 18 -50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 40 18 -50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 60 18 -50 1 0 0 0 -1.5 0 0 0 1 studxa.dat
1 16 -60 18 50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
1 16 -40 18 50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
1 16 -20 18 50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
1 16 0 18 50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
1 16 20 18 50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
1 16 40 18 50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
1 16 60 18 50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
1 16 -70 18 20 0 0 1 0 -1 0 -1 0 0 stxjcyl9.dat
1 16 70 18 20 0 0 1 0 -1 0 -1 0 0 stxjcyl9.dat
1 16 -70 18 0 0 0 1 0 -1 0 -1 0 0 stxjcyl9.dat
1 16 70 18 0 0 0 1 0 -1 0 -1 0 0 stxjcyl9.dat
1 16 -70 18 -20 0 0 1 0 -1 0 -1 0 0 stxjcyl9.dat
1 16 70 18 -20 0 0 1 0 -1 0 -1 0 0 stxjcyl9.dat
1 16 -60 18 -50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
1 16 -40 18 -50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
1 16 -20 18 -50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
1 16 0 18 -50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
1 16 20 18 -50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
1 16 40 18 -50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
1 16 60 18 -50 1 0 0 0 -1 0 0 0 1 stxjcyl9.dat
