Official File parts/32533p574.dat
External site data provided by Rebrickable.com

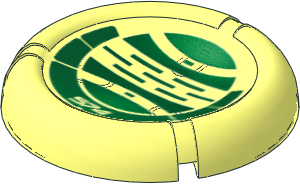

Constraction Disc 5 x 5 Projectile with Bionicle Kanoka 574 Le-Metru Pattern
0 Constraction Disc  5 x  5 Projectile with Bionicle Kanoka 574 Le-Metru Pattern
0 Name: 32533p574.dat
0 Author: Max Murtazin [SwampKryakwa]
0 !LDRAW_ORG Part UPDATE 2025-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Bricklink 32171pb105, frisbee, Matoran, Orkahm
0 !KEYWORDS Rebrickable 32533pr0574, Set 8611, Weapon

0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06
Show file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32533s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\32533s01.dat
1 16 0 0 0 -0.5 0 -0.866025 0 1 0 0.866025 0 -0.5 s\32533s01.dat
1 16 0 0 0 0.5 0 -0.866025 0 1 0 -0.866025 0 -0.5 s\32533s01.dat
1 16 0 0 0 -0.5 0 0.866025 0 1 0 -0.866025 0 -0.5 s\32533s01.dat
1 16 0 0 0 0.5 0 0.866025 0 1 0 0.866025 0 -0.5 s\32533s01.dat

0 !TEXMAP START PLANAR -36.1299 0 36.1299 36.1299 0 36.1299 -36.1299 0 -36.1299 32533p574.png
0 !: 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32533s02.dat
0 !: 1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\32533s02.dat
0 !: 1 16 0 0 0 -0.5 0 -0.866025 0 1 0 0.866025 0 -0.5 s\32533s02.dat
0 !: 1 16 0 0 0 0.5 0 -0.866025 0 1 0 -0.866025 0 -0.5 s\32533s02.dat
0 !: 1 16 0 0 0 -0.5 0 0.866025 0 1 0 -0.866025 0 -0.5 s\32533s02.dat
0 !: 1 16 0 0 0 0.5 0 0.866025 0 1 0 0.866025 0 -0.5 s\32533s02.dat
0 !TEXMAP FALLBACK
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32533s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\32533s02.dat
1 16 0 0 0 -0.5 0 -0.866025 0 1 0 0.866025 0 -0.5 s\32533s02.dat
1 16 0 0 0 0.5 0 -0.866025 0 1 0 -0.866025 0 -0.5 s\32533s02.dat
1 16 0 0 0 -0.5 0 0.866025 0 1 0 -0.866025 0 -0.5 s\32533s02.dat
1 16 0 0 0 0.5 0 0.866025 0 1 0 0.866025 0 -0.5 s\32533s02.dat
0 !TEXMAP END

Status

Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line 16: 1 16 0 0 0 -0.5 0 -0.866025 0 1 0 0.866025 0 -0.5 s\32533s01.dat
    Line 17: 1 16 0 0 0 0.5 0 -0.866025 0 1 0 -0.866025 0 -0.5 s\32533s01.dat
    Line 18: 1 16 0 0 0 -0.5 0 0.866025 0 1 0 -0.866025 0 -0.5 s\32533s01.dat
    Line 19: 1 16 0 0 0 0.5 0 0.866025 0 1 0 0.866025 0 -0.5 s\32533s01.dat
    Line 24: 0 !: 1 16 0 0 0 -0.5 0 -0.866025 0 1 0 0.866025 0 -0.5 s\32533s02.dat
    Line 25: 0 !: 1 16 0 0 0 0.5 0 -0.866025 0 1 0 -0.866025 0 -0.5 s\32533s02.dat
    Line 26: 0 !: 1 16 0 0 0 -0.5 0 0.866025 0 1 0 -0.866025 0 -0.5 s\32533s02.dat
    Line 27: 0 !: 1 16 0 0 0 0.5 0 0.866025 0 1 0 0.866025 0 -0.5 s\32533s02.dat
    Line 31: 1 16 0 0 0 -0.5 0 -0.866025 0 1 0 0.866025 0 -0.5 s\32533s02.dat
    Line 32: 1 16 0 0 0 0.5 0 -0.866025 0 1 0 -0.866025 0 -0.5 s\32533s02.dat
    Line 33: 1 16 0 0 0 -0.5 0 0.866025 0 1 0 -0.866025 0 -0.5 s\32533s02.dat
    Line 34: 1 16 0 0 0 0.5 0 0.866025 0 1 0 0.866025 0 -0.5 s\32533s02.dat

Part Dependencies

Unofficial parents

Part Events
