File Detail parts/33036.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/33036.dat

Part Attributes:

File Header:

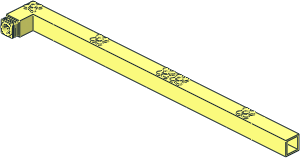

0 ~Scala Support  4 x 40 Bent 90 Degrees
0 Name: 33036.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

1 16 440 0 0 0 0 -1 0 1 0 1 0 0 s\33037s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\33037s02.dat
1 16 0 20 -75 0 0 -1 1 0 0 0 -1 0 s\33037s03.dat

4 16 -20 0 -60 20 0 -60 20 0 -20 -20 0 20
1 16 30.75 20 -20 0 0 -50.75 -20 0 0 0 40 0 box2-7.dat
0 BFC INVERTNEXT
1 16 50.75 20 -40 0 0 -30.75 -20 0 0 0 20 0 box2-7.dat
4 16 81.5 40 -20 20 40 -20 20 40 -16 78.5 40 -16
4 16 16 40 -16 16 40 -20 -16 40 -20 -16 40 -16
3 16 -16 40 -20 -20 40 -20 -16 40 -16
4 16 16 40 -20 20 40 -20 20 40 -60 16 40 -56
4 16 -20 40 -60 -20 40 -20 -16 40 -20 -16 40 -56
1 16 0 20 -60 20 0 0 0 0 -20 0 1 0 recte3.dat
0 BFC INVERTNEXT
1 16 0 22 -56 16 0 0 0 0 -18 0 36 0 box4-1.dat
4 16 20 40 -16 20 40 -20 16 40 -20 16 40 -16
4 16 20 0 -20 81.5 0 -20 81.5 0 20 -20 0 20
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 stud5.dat
1 16 200 0 0 -1 0 0 0 1 0 0 0 -1 stud5.dat
1 16 400 0 0 -1 0 0 0 1 0 0 0 -1 stud5.dat
1 16 440 0 0 -1 0 0 0 1 0 0 0 -1 stud5.dat
1 16 640 0 0 -1 0 0 0 1 0 0 0 -1 stud5.dat

0 BFC INVERTNEXT
1 16 300 40 0 58 0 0 0 -36 0 0 0 16 box3u2p.dat
1 16 240 4 0 0 0 2 0 36 0 -16 0 0 box3u10p.dat
0 BFC INVERTNEXT
1 16 420 40 0 58 0 0 0 -36 0 0 0 16 box3u2p.dat
0 BFC INVERTNEXT
1 16 540 40 0 58 0 0 0 -36 0 0 0 16 box3u2p.dat
1 16 600 4 0 0 0 2 0 36 0 -16 0 0 box3u10p.dat
0 BFC INVERTNEXT
1 16 640 40 0 38 0 0 0 -36 0 0 0 16 box3u2p.dat
4 16 678 40 -20 602 40 -20 602 40 -16 678 40 -16
4 16 678 40 20 678 40 16 602 40 16 602 40 20
4 16 602 40 20 598 40 16 482 40 16 482 40 20
4 16 482 40 -20 482 40 -16 598 40 -16 602 40 -20
4 16 478 40 -16 482 40 -20 362 40 -20 362 40 -16
4 16 478 40 16 362 40 16 362 40 20 482 40 20

1 16 300 40 0 62 0 0 0 -40 0 0 0 20 box3u8p.dat
1 16 422 40 0 60 0 0 0 -40 0 0 0 20 box3u8p.dat
1 16 542 40 0 60 0 0 0 -40 0 0 0 20 box3u8p.dat
1 16 640 40 0 38 0 0 0 -40 0 0 0 20 box3u8p.dat

3 16 362 40 -16 362 40 -20 358 40 -16
3 16 362 40 16 358 40 16 362 40 20
3 16 482 40 -16 482 40 -20 478 40 -16
3 16 482 40 16 478 40 16 482 40 20
3 16 242 40 -16 238 40 -20 238 40 -16
3 16 242 40 16 238 40 16 238 40 20
4 16 78.5 40 16 82.5 40 16 82.5 40 -16 78.5 40 -16
4 16 362 40 -20 238 40 -20 242 40 -16 358 40 -16
4 16 362 40 20 358 40 16 242 40 16 238 40 20

1 16 360 40 0 0 0 -2 0 1 0 -4 0 0 box5-2p.dat
3 16 362 40 16 362 4 16 362 40 4
3 16 362 4 -16 362 40 -16 362 40 -4
4 16 362 4 -16 362 40 -4 362 40 4 362 4 16
3 16 358 4 16 358 40 16 358 40 4
3 16 358 40 -16 358 4 -16 358 40 -4
4 16 358 40 4 358 40 -4 358 4 -16 358 4 16
1 16 360 40 10 0 0 -2 0 -1 0 -6 0 0 rect2p.dat
1 16 360 40 -10 0 0 -2 0 -1 0 -6 0 0 rect2p.dat

1 16 480 40 0 0 0 -2 0 1 0 -4 0 0 box5-2p.dat
3 16 482 40 16 482 4 16 482 40 4
3 16 482 4 -16 482 40 -16 482 40 -4
4 16 482 4 -16 482 40 -4 482 40 4 482 4 16
3 16 478 4 16 478 40 16 478 40 4
3 16 478 40 -16 478 4 -16 478 40 -4
4 16 478 40 4 478 40 -4 478 4 -16 478 4 16
1 16 480 40 10 0 0 -2 0 -1 0 -6 0 0 rect2p.dat
1 16 480 40 -10 0 0 -2 0 -1 0 -6 0 0 rect2p.dat

3 16 602 40 -16 602 40 -20 598 40 -16
3 16 602 40 16 598 40 16 602 40 20

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2021-03-27 00:10:02

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2021-03-27 00:20:01

reoriented

Max Martin Richter [MMR1988]

posted a vote of Certify.

2022-04-09 20:25:01

Joshua Delahunty [dulcaoin]

made the following comment.

2022-07-21 15:00:01

This part should be renamed to 74688 (official name just for the sake of this discussion: CROSS BAR 1/1)
74688 is made up of
33036 CROSSBEAM, CUBE 1/1
33037 CROSSBEAM, CUBE 1/2
and, I believe:
33040 CAVITY, CROSS BAR

I don't know which sub-parts are which, since we don't have reference photos or renders on these.

Joshua Delahunty [dulcaoin]

made the following comment.

2022-07-21 15:05:02

Actually, I think this should be broken up into those three parts, and then 33036c01.dat should be renamed to 74688. consisting of the 5 parts.

Joshua Delahunty [dulcaoin]

made the following comment.

2022-07-21 17:30:01

Third comment is the charm?

33037s03.dat should be renamed 33040.dat, and broken out of 33036 and 33037, and then added back into the 33036c01 and 33037c01 files, and then those should be renamed

33036c01 -> 74688.dat
33037c01 -> 75524.dat

Gerald Lasser [GeraldLasser]

made the following comment.

2022-07-21 17:50:01

33037s03 is actually no seperate part, it is part of the main mould, so why ahoudl it get its own part number?

The L-shape needs two more parts so that it can be used in building (the c01 part). These are not 5 separate parts combined...

Joshua Delahunty [dulcaoin]

made the following comment.

2022-07-22 18:40:01

There is a separate LOOSE PART* 33040 "CAVITY, CROSS BAR" that is defined contextually with 33036 and 33037 (also both LOOSE PART elements). 33036, along with other parts, forms assembly 74688. 74688 is the only element with the name "CROSS BAR" in it, which would seem to indicate that 33040 is a part of that assembly, given its naming.

I was simply guessing that it was 33037s03; I unfortunately don't have a 74688 to observe/inspect.

* LOOSE PART is the TLG nomenclature for elements that aren't released on their own, but (usually) form an assembly, which is the element that's released in a set.

Gerald Lasser [GeraldLasser]

made the following comment.

2022-07-23 12:20:01

I got all those parts, except the 33267c01 which was insanely expensive..

the 33036 and 33037 have the numbers embossed and are a single mould.

So 74688 (33036c01) cannot have 33037 as a part in the assembly. 33037 is the short L-support

Do you have information on these parts:
6808 (HAS an embossed number)
6809 (has no number embossed, got the number from BL)
6810 (has no number embossed, got the number from BL)

May be one of them could be 33040?

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-05-09 14:06:38

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2024-05-21 04:13:10

Orion Pobursky [OrionP]

2024-05-28 02:57:16

Release 2024-04

Creative Commons Attribution License information
