Official File parts/33195.dat
Part Attributes:
File Header:

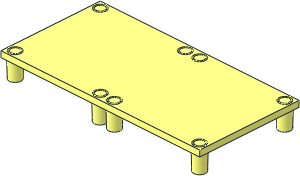

0 Scala Platform 7 x 14 x 1.333 With 8 Legs
0 Name: 33195.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\33195s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\33195s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\33195s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\33195s01.dat
4 16 53 4 17 87 4 17 87 4 -17 53 4 -17
4 16 -53 4 17 -53 4 -17 -87 4 -17 -87 4 17
4 16 -1 4 -51 -50 4 -20 50 4 -20 1 4 -51
4 16 -1 4 -51 1 4 -51 1 4 -60 -1 4 -60
4 16 1 4 -60 3.3929 4 -66 -3.3929 4 -66 -1 4 -60
4 16 50 4 20 -50 4 20 -1 4 51 1 4 51
4 16 1 4 51 -1 4 51 -1 4 60 1 4 60
4 16 3.3929 4 66 1 4 60 -1 4 60 -3.3929 4 66
0 BFC INVERTNEXT
1 16 -111.5 8 0 -24.5 0 0 0 -4 0 0 0 -17 box3u8p.dat
0 BFC INVERTNEXT
1 16 111.5 8 0 -24.5 0 0 0 -4 0 0 0 -17 box3u8p.dat
0 BFC INVERTNEXT
1 16 0 8 0 -53 0 0 0 -4 0 0 0 -17 box3u8p.dat
0 BFC INVERTNEXT
1 16 0 6 66 0 0 50 2 0 0 0 -46 0 box3u2p.dat
0 BFC INVERTNEXT
1 16 0 6 -66 0 0 50 2 0 0 0 46 0 box3u2p.dat
4 16 -50 8 20 50 8 20 53 8 17 -53 8 17
4 16 53 8 -17 50 8 -20 -50 8 -20 -53 8 -17
1 16 0 6 -66 -3.3929 0 0 0 0 -2 0 -1 0 rect2p.dat
1 16 0 6 66 -3.3929 0 0 0 0 -2 0 1 0 rect2p.dat
4 16 -3.3929 8 -66 3.3929 8 -66 10 8 -68.5 -10 8 -68.5
4 16 -10 8 -68.5 10 8 -68.5 140 8 -70 -140 8 -70
4 16 10 8 68.5 3.3929 8 66 -3.3929 8 66 -10 8 68.5
4 16 -140 8 70 140 8 70 10 8 68.5 -10 8 68.5
0 // Top
1 16 0 0 0 140 0 0 0 8 0 0 0 70 box4.dat
4 16 -10 0 -52 -2 0 -52 -2 0 52 -10 0 52
4 16 -10 0 -52 -10 0 52 -18 0 52 -18 0 -52
4 16 -18 0 -52 -18 0 52 -122 0 52 -122 0 -52
4 16 -130 0 -52 -122 0 -52 -122 0 52 -130 0 52
4 16 -130 0 -52 -130 0 52 -138 0 52 -138 0 -52
4 16 2 0 52 2 0 -52 10 0 -52 10 0 52
4 16 18 0 52 10 0 52 10 0 -52 18 0 -52
4 16 122 0 52 18 0 52 18 0 -52 122 0 -52
4 16 122 0 52 122 0 -52 130 0 -52 130 0 52
4 16 138 0 52 130 0 52 130 0 -52 138 0 -52
4 16 -2 0 -68 2 0 -68 2 0 -60 -2 0 -60
4 16 -2 0 -60 2 0 -60 2 0 -52 -2 0 -52
4 16 2 0 60 2 0 68 -2 0 68 -2 0 60
4 16 2 0 52 2 0 60 -2 0 60 -2 0 52
4 16 2 0 -52 2 0 52 -2 0 52 -2 0 -52
3 16 -122 0 -68 -140 0 -70 -18 0 -68
3 16 -18 0 -68 -140 0 -70 -10 0 -68
3 16 -10 0 -68 -140 0 -70 -2 0 -68
4 16 2 0 -68 -2 0 -68 -140 0 -70 140 0 -70
3 16 140 0 -70 122 0 -68 18 0 -68
3 16 140 0 -70 18 0 -68 10 0 -68
3 16 140 0 -70 10 0 -68 2 0 -68
3 16 -140 0 70 -122 0 68 -18 0 68
3 16 -140 0 70 -18 0 68 -10 0 68
3 16 -140 0 70 -10 0 68 -2 0 68
4 16 -140 0 70 -2 0 68 2 0 68 140 0 70
3 16 122 0 68 140 0 70 18 0 68
3 16 18 0 68 140 0 70 10 0 68
3 16 10 0 68 140 0 70 2 0 68
4 16 138 0 52 138 0 -52 140 0 -70 140 0 70
4 16 -140 0 -70 -138 0 -52 -138 0 52 -140 0 70
1 16 130 4 60 1 0 0 0 1 0 0 0 1 stud26.dat
1 16 130 4 -60 1 0 0 0 1 0 0 0 1 stud26.dat
1 16 10 4 60 1 0 0 0 1 0 0 0 1 stud26.dat
1 16 10 4 -60 1 0 0 0 1 0 0 0 1 stud26.dat
1 16 -10 4 60 1 0 0 0 1 0 0 0 1 stud26.dat
1 16 -10 4 -60 1 0 0 0 1 0 0 0 1 stud26.dat
1 16 -130 4 60 1 0 0 0 1 0 0 0 1 stud26.dat
1 16 -130 4 -60 1 0 0 0 1 0 0 0 1 stud26.dat
0 // Bottom Studs
1 16 120 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 100 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -100 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -120 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
0 // Bottom Antistuds Fractions
4 16 -137.5 4 -5.4072 -137.5 4 5.4072 -136 4 17 -136 4 -17
1 16 -136 6 -11.882 0 -1 0 -2 0 0 0 0 -5.11795 rect.dat
1 16 -136 6 11.882 0 -1 0 -2 0 0 0 0 -5.11795 rect.dat
1 16 -135.17155 6 6.2105 .82845 0 0 0 0 2 -.5536 -1 0 rect2p.dat
1 16 -135.17155 6 -6.2105 .82845 0 0 0 0 -2 .5536 1 0 rect2p.dat
1 16 -140 4 0 5.656854 0 5.656854 0 4 0 -5.656854 0 5.656854 1-4cylo.dat
5 24 -134.3431 8 5.6569 -134.3431 4 5.6569 -132.6088 8 3.0615 -136 8 6.7641
5 24 -134.3431 8 -5.6569 -134.3431 4 -5.6569 -132.6088 8 -3.0615 -136 8 -6.7641
0 BFC INVERTNEXT
1 16 -140 4 0 4.242641 0 4.242641 0 4 0 -4.242641 0 4.242641 1-4cylo.dat
1 16 -136.6287 6 -4.8249 0 0 -.87132 2 0 0 0 -1 -.582279 rect3.dat
1 16 -136.6287 6 4.8249 0 0 -.87132 2 0 0 0 1 .582279 rect3.dat
5 24 -135.7574 8 -4.2426 -135.7574 4 -4.2426 -134.4565639628 8 -2.2961178504 -137.5 8 -5.4072
5 24 -135.7574 8 4.2426 -135.7574 4 4.2426 -134.4566 8 2.2961 -137.5 8 5.4072
1 16 -137.5 6 0 0 -1 0 0 0 2 -5.407198 0 0 rect2p.dat
1 16 -140 8 0 1.414214 0 1.414214 0 -1 0 -1.414214 0 1.414214 1-4ring3.dat
4 16 -136 8 6.7641 -134.3431 8 5.6569 -135.7574 8 4.2426 -137.5 8 5.4072
4 16 -136 8 -6.7641 -137.5 8 -5.4072 -135.7574 8 -4.2426 -134.3431 8 -5.6569
4 16 -137.5 8 -5.4072 -136 8 -6.7641 -136 8 -17 -140 8 -70
4 16 -136 8 17 -136 8 6.7641 -137.5 8 5.4072 -140 8 70
4 16 -137.5 8 5.407179 -137.5 8 -5.4072 -140 8 -70 -140 8 70
4 16 137.5 4 5.4072 137.5 4 -5.4072 136 4 -17 136 4 17
1 16 136 6 11.882 0 1 0 -2 0 0 0 0 5.11795 rect.dat
1 16 136 6 -11.882 0 1 0 -2 0 0 0 0 5.11795 rect.dat
1 16 135.17155 6 -6.2105 -.82845 0 0 0 0 2 .5536 1 0 rect2p.dat
1 16 135.17155 6 6.2105 -.82845 0 0 0 0 -2 -.5536 -1 0 rect2p.dat
1 16 140 4 0 -5.656854 0 -5.656854 0 4 0 5.656854 0 -5.656854 1-4cylo.dat
5 24 134.3431 8 -5.6569 134.3431 4 -5.6569 132.6088 8 -3.0615 136 8 -6.7641
5 24 134.3431 8 5.6569 134.3431 4 5.6569 132.6088 8 3.0615 136 8 6.7641
0 BFC INVERTNEXT
1 16 140 4 0 -4.242641 0 -4.242641 0 4 0 4.242641 0 -4.242641 1-4cylo.dat
1 16 136.6287 6 4.8249 0 0 .87132 2 0 0 0 1 .582279 rect3.dat
1 16 136.6287 6 -4.8249 0 0 .87132 2 0 0 0 -1 -.582279 rect3.dat
5 24 135.7574 8 4.2426 135.7574 4 4.2426 134.4565639628 8 2.2961178504 137.5 8 5.4072
5 24 135.7574 8 -4.2426 135.7574 4 -4.2426 134.4566 8 -2.2961 137.5 8 -5.4072
1 16 137.5 6 0 0 1 0 0 0 2 5.407198 0 0 rect2p.dat
1 16 140 8 0 -1.414214 0 -1.414214 0 -1 0 1.414214 0 -1.414214 1-4ring3.dat
4 16 136 8 -6.7641 134.3431 8 -5.6569 135.7574 8 -4.2426 137.5 8 -5.4072
4 16 136 8 6.7641 137.5 8 5.4072 135.7574 8 4.2426 134.3431 8 5.6569
4 16 136 8 -17 136 8 -6.7641 137.5 8 -5.4072 140 8 -70
4 16 137.5 8 5.4072 136 8 6.7641 136 8 17 140 8 70
4 16 140 8 -70 137.5 8 -5.4072 137.5 8 5.407179 140 8 70
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2019-11-28 19:25:01
I keep the stud in the main file.
The stud says actually "Scala" on top of it, so one day, we can add the words SCALA to the stud26...
Existing certification-votes were deleted.
The stud says actually "Scala" on top of it, so one day, we can add the words SCALA to the stud26...
Existing certification-votes were deleted.
2020-01-12 13:35:01
No, we can't do that.
The stud26 is made to be used on parts that don't have _any_ logo on the stud.
The stud26 is made to be used on parts that don't have _any_ logo on the stud.
2020-01-12 16:35:01
I will ask Chris for a new stud number for the Scala-Embossed-Stud
2021-10-08 11:40:01
Any process concerning the scala stud prim?
* Overlap:
3 25 136 8 -17 136 8 -6.7641 137.5 8 -5.4072
3 25 136 8 -17 136 8 -6.7641 137.5 8 -5.4072
added comp conds and removed overlaps
2024-04-29 07:49:09
2024-04-29 08:38:17
2024-06-04 20:00:58
2024-06-30 00:13:17
Release 2024-05
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
