Official File parts/33232.dat
Part Attributes:
File Header:

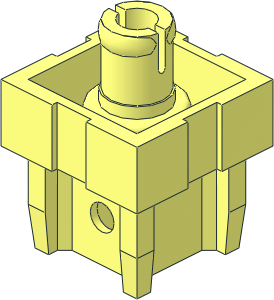

0 ~Scala Support Connector Brick
0 Name: 33232.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2025-01-20 [OrionP] Official Update 2025-01
Show contents
1 16 0 13 0 11.25 0 0 0 -6.75 0 0 0 11.25 4-4cyli.dat
1 16 0 13 0 11.25 0 0 0 1 0 0 0 11.25 4-4edge.dat
1 16 0 13 0 11.25 0 0 0 1 0 0 0 11.25 4-4ndis.dat
1 16 0 6.25 0 -10 0 0 0 -10 0 0 0 -10 t01o1250.dat
1 16 0 5 0 2 0 0 0 1 0 0 0 2 4-4ring4.dat
1 16 0 2 0 7.5 0 0 0 1 0 0 0 7.5 4-4edge.dat
1 16 0 2 0 8 0 0 0 3 0 0 0 8 4-4cylo.dat
1 16 0 2 0 .5 0 0 0 1 0 0 0 .5 4-4ring15.dat
4 16 -11.25 13 11.25 11.25 13 11.25 16 13 16 -16 13 16
4 16 -16 13 16 -16 13 -16 -11.25 13 -11.25 -11.25 13 11.25
4 16 -11.25 13 -11.25 -16 13 -16 16 13 -16 11.25 13 -11.25
4 16 16 13 -16 16 13 16 11.25 13 11.25 11.25 13 -11.25
1 16 0 2 0 4.5 0 0 0 1 0 0 0 4.5 4-4edge.dat
1 16 0 2 0 2.5 0 0 0 1 0 0 0 2.5 4-4ring1.dat
0 BFC INVERTNEXT
1 16 0 2 0 2.5 0 0 0 4 0 0 0 2.5 4-4cylo.dat
1 16 0 2 0 1 0 0 0 1 0 0 0 1 conscala.dat
0 BFC INVERTNEXT
1 16 0 0 0 16 0 0 0 13 0 0 0 16 box4.dat
0 BFC INVERTNEXT
1 16 0 6 0 8 0 0 0 10 0 0 0 8 4-4cylo.dat
1 16 0 6 0 2.5 0 0 0 -1 0 0 0 2.5 4-4ndis.dat
1 16 0 6 0 8 0 0 0 -1 0 0 0 8 1-4chrd.dat
1 16 0 6 0 8 0 0 0 -1 0 0 0 -8 1-4chrd.dat
1 16 0 6 0 -8 0 0 0 -1 0 0 0 8 1-4chrd.dat
1 16 0 6 0 -8 0 0 0 -1 0 0 0 -8 1-4chrd.dat
3 16 -8 6 0 -2.5 6 0 -2.5 6 -2.5
3 16 -8 6 0 -2.5 6 -2.5 0 6 -8
3 16 0 6 -8 -2.5 6 -2.5 0 6 -2.5
3 16 0 6 -8 0 6 -2.5 2.5 6 -2.5
3 16 0 6 -8 2.5 6 -2.5 8 6 0
3 16 8 6 0 2.5 6 -2.5 2.5 6 0
3 16 8 6 0 2.5 6 0 2.5 6 2.5
3 16 8 6 0 2.5 6 2.5 0 6 8
3 16 0 6 8 2.5 6 2.5 0 6 2.5
3 16 0 6 8 0 6 2.5 -2.5 6 2.5
3 16 -2.5 6 0 -8 6 0 -2.5 6 2.5
3 16 -2.5 6 2.5 -8 6 0 0 6 8
1 16 0 16 0 8 0 0 0 -1 0 0 0 8 4-4ndis.dat
4 16 -8 16 8 -20 16 20 -5 16 20 -5 16 18.5
4 16 -8 16 -8 -20 16 -20 -20 16 -5 -18.5 16 -5
4 16 -8 16 -8 -5 16 -18.5 -5 16 -20 -20 16 -20
4 16 8 16 -8 20 16 -20 5 16 -20 5 16 -18.5
4 16 8 16 -8 18.5 16 -5 20 16 -5 20 16 -20
4 16 8 16 8 20 16 20 20 16 5 18.5 16 5
4 16 5 16 20 20 16 20 8 16 8 5 16 18.5
4 16 -20 16 5 -20 16 20 -8 16 8 -18.5 16 5
3 16 -18.5 16 5 -8 16 8 -8 16 0
4 16 -18.5 16 5 -8 16 0 -8 16 -8 -18.5 16 -5
4 16 -8 16 -8 0 16 -8 5 16 -18.5 -5 16 -18.5
3 16 5 16 -18.5 0 16 -8 8 16 -8
4 16 8 16 -8 8 16 0 18.5 16 5 18.5 16 -5
3 16 18.5 16 5 8 16 0 8 16 8
3 16 -8 16 8 -5 16 18.5 0 16 8
4 16 -5 16 18.5 5 16 18.5 8 16 8 0 16 8
4 16 -16 0 16 -5 0 18.5 -5 0 20 -20 0 20
4 16 5 0 18.5 -5 0 18.5 -16 0 16 16 0 16
4 16 5 0 20 5 0 18.5 16 0 16 20 0 20
4 16 16 0 16 18.5 0 5 20 0 5 20 0 20
4 16 18.5 0 -5 18.5 0 5 16 0 16 16 0 -16
4 16 20 0 -5 18.5 0 -5 16 0 -16 20 0 -20
4 16 16 0 -16 5 0 -18.5 5 0 -20 20 0 -20
4 16 -5 0 -18.5 5 0 -18.5 16 0 -16 -16 0 -16
4 16 -5 0 -20 -5 0 -18.5 -16 0 -16 -20 0 -20
4 16 -16 0 -16 -18.5 0 -5 -20 0 -5 -20 0 -20
4 16 -18.5 0 5 -18.5 0 -5 -16 0 -16 -16 0 16
4 16 -20 0 5 -18.5 0 5 -16 0 16 -20 0 20
1 16 -12.5 8 12.5 0 0 -7.5 8 0 0 0 7.5 0 box2-7.dat
1 16 12.5 8 12.5 0 7.5 0 8 0 0 0 0 7.5 box2-7.dat
1 16 12.5 8 -12.5 0 0 7.5 8 0 0 0 -7.5 0 box2-7.dat
1 16 -12.5 8 -12.5 0 -7.5 0 8 0 0 0 0 -7.5 box2-7.dat
0 BFC INVERTNEXT
1 16 0 8 -20 0 0 -5 8 0 0 0 1.5 0 box3u2p.dat
0 BFC INVERTNEXT
1 16 -20 8 0 0 1.5 0 8 0 0 0 0 5 box3u2p.dat
0 BFC INVERTNEXT
1 16 20 8 0 0 -1.5 0 8 0 0 0 0 -5 box3u2p.dat
0 BFC INVERTNEXT
1 16 0 8 20 0 0 5 8 0 0 0 -1.5 0 box3u2p.dat
0 // Inserted Part
1 16 0 28.25 0 8.25 0 0 0 12.25 0 0 0 8.25 box0.dat
4 16 -8.25 40.5 -8.25 -8.25 40.5 8.25 -8.25 16 8.25 -8.25 16 -8.25
4 16 8.25 40.5 -8.25 8.25 16 -8.25 8.25 16 8.25 8.25 40.5 8.25
0 BFC INVERTNEXT
1 16 0 29 -8.25 3.5 0 0 0 0 -3.5 0 -2 0 4-4cylo.dat
1 16 0 29 -8.25 3.5 0 0 0 0 -3.5 0 -1 0 4-4ndis.dat
1 16 0 29 -10.25 3.5 0 0 0 0 -3.5 0 1 0 4-4ndis.dat
2 24 8.836 16 -10.25 -8.836 16 -10.25
2 24 -8.836 40.5 -10.25 8.836 40.5 -10.25
4 16 0 25.5 -10.25 3.5 25.5 -10.25 8.836 16 -10.25 -8.836 16 -10.25
4 16 -3.5 29 -10.25 -3.5 25.5 -10.25 -8.836 16 -10.25 -8.836 40.5 -10.25
4 16 0 32.5 -10.25 -3.5 32.5 -10.25 -8.836 40.5 -10.25 8.836 40.5 -10.25
4 16 3.5 29 -10.25 3.5 32.5 -10.25 8.836 40.5 -10.25 8.836 16 -10.25
3 16 -3.5 25.5 -10.25 0 25.5 -10.25 -8.836 16 -10.25
3 16 -3.5 32.5 -10.25 -3.5 29 -10.25 -8.836 40.5 -10.25
3 16 8.836 40.5 -10.25 3.5 32.5 -10.25 0 32.5 -10.25
3 16 3.5 25.5 -10.25 3.5 29 -10.25 8.836 16 -10.25
4 16 8.25 16 -8.25 3.5 25.5 -8.25 0 25.5 -8.25 -8.25 16 -8.25
4 16 -8.25 16 -8.25 -3.5 25.5 -8.25 -3.5 29 -8.25 -8.25 40.5 -8.25
4 16 -8.25 40.5 -8.25 -3.5 32.5 -8.25 0 32.5 -8.25 8.25 40.5 -8.25
4 16 8.25 40.5 -8.25 3.5 32.5 -8.25 3.5 29 -8.25 8.25 16 -8.25
3 16 0 25.5 -8.25 -3.5 25.5 -8.25 -8.25 16 -8.25
3 16 -3.5 29 -8.25 -3.5 32.5 -8.25 -8.25 40.5 -8.25
3 16 3.5 32.5 -8.25 8.25 40.5 -8.25 0 32.5 -8.25
3 16 3.5 29 -8.25 3.5 25.5 -8.25 8.25 16 -8.25
0 BFC INVERTNEXT
1 16 0 29 8.25 3.5 0 0 0 0 -3.5 0 2 0 4-4cylo.dat
1 16 0 29 8.25 3.5 0 0 0 0 -3.5 0 1 0 4-4ndis.dat
1 16 0 29 10.25 3.5 0 0 0 0 -3.5 0 -1 0 4-4ndis.dat
2 24 8.836 16 10.25 -8.836 16 10.25
2 24 -8.836 40.5 10.25 8.836 40.5 10.25
4 16 8.836 16 10.25 3.5 25.5 10.25 0 25.5 10.25 -8.836 16 10.25
4 16 -8.836 16 10.25 -3.5 25.5 10.25 -3.5 29 10.25 -8.836 40.5 10.25
4 16 -8.836 40.5 10.25 -3.5 32.5 10.25 0 32.5 10.25 8.836 40.5 10.25
4 16 8.836 40.5 10.25 3.5 32.5 10.25 3.5 29 10.25 8.836 16 10.25
3 16 0 25.5 10.25 -3.5 25.5 10.25 -8.836 16 10.25
3 16 -3.5 29 10.25 -3.5 32.5 10.25 -8.836 40.5 10.25
3 16 3.5 32.5 10.25 8.836 40.5 10.25 0 32.5 10.25
3 16 3.5 29 10.25 3.5 25.5 10.25 8.836 16 10.25
4 16 0 25.5 8.25 3.5 25.5 8.25 8.25 16 8.25 -8.25 16 8.25
4 16 -3.5 29 8.25 -3.5 25.5 8.25 -8.25 16 8.25 -8.25 40.5 8.25
4 16 0 32.5 8.25 -3.5 32.5 8.25 -8.25 40.5 8.25 8.25 40.5 8.25
4 16 3.5 29 8.25 3.5 32.5 8.25 8.25 40.5 8.25 8.25 16 8.25
3 16 -3.5 25.5 8.25 0 25.5 8.25 -8.25 16 8.25
3 16 -3.5 32.5 8.25 -3.5 29 8.25 -8.25 40.5 8.25
3 16 8.25 40.5 8.25 3.5 32.5 8.25 0 32.5 8.25
3 16 3.5 25.5 8.25 3.5 29 8.25 8.25 16 8.25
1 16 13.5 23 13.5 0 2.5 0 -7 0 0 0 0 2.5 box2-5.dat
4 16 15 40.5 15 11 40.5 15 11 30 16 16 30 16
4 16 16 30 11 15 40.5 11 15 40.5 15 16 30 16
4 16 11 30 16 11 40.5 12.414 11 16 12.414 11 16 16
3 16 12.414 40.5 11 15 40.5 11 16 30 11
3 16 11 40.5 15 11 40.5 12.414 11 30 16
4 16 16 16 11 12.414 16 11 12.414 40.5 11 16 30 11
4 16 12.414 40.5 11 11 40.5 12.414 11 40.5 15 15 40.5 11
3 16 15 40.5 15 15 40.5 11 11 40.5 15
2 24 15 40.5 15 16 30 16
2 24 11 30 16 11 40.5 15
2 24 15 40.5 11 16 30 11
2 24 11 40.5 15 15 40.5 15
2 24 15 40.5 11 15 40.5 15
2 24 12.414 40.5 11 15 40.5 11
2 24 11 40.5 12.414 11 40.5 15
2 24 11 16 12.414 11 16 16
2 24 12.414 16 11 16 16 11
1 16 10.625 16 10.625 1.082 0 -.707 0 24.5 0 1.082 0 .707 box3u4p.dat
1 16 10.25 28.25 0 0 -1 0 0 0 12.25 -8.836 0 0 rect2p.dat
4 16 8.25 40.5 -8.25 8.25 40.5 8.25 10.25 40.5 8.836 10.25 40.5 -8.836
3 16 8.25 40.5 8.25 8.836 40.5 10.25 10.25 40.5 8.836
1 16 13.5 23 -13.5 0 0 2.5 -7 0 0 0 -2.5 0 box2-5.dat
4 16 15 40.5 -15 15 40.5 -11 16 30 -11 16 30 -16
4 16 11 30 -16 11 40.5 -15 15 40.5 -15 16 30 -16
4 16 16 30 -11 12.414 40.5 -11 12.414 16 -11 16 16 -11
3 16 11 40.5 -12.414 11 40.5 -15 11 30 -16
3 16 15 40.5 -11 12.414 40.5 -11 16 30 -11
4 16 11 16 -16 11 16 -12.414 11 40.5 -12.414 11 30 -16
4 16 11 40.5 -12.414 12.414 40.5 -11 15 40.5 -11 11 40.5 -15
3 16 15 40.5 -15 11 40.5 -15 15 40.5 -11
2 24 15 40.5 -15 16 30 -16
2 24 16 30 -11 15 40.5 -11
2 24 11 40.5 -15 11 30 -16
2 24 15 40.5 -11 15 40.5 -15
2 24 11 40.5 -15 15 40.5 -15
2 24 11 40.5 -12.414 11 40.5 -15
2 24 12.414 40.5 -11 15 40.5 -11
2 24 12.414 16 -11 16 16 -11
2 24 11 16 -12.414 11 16 -16
1 16 10.625 16 -10.625 1.082 0 .707 0 24.5 0 -1.082 0 .707 box3u4p.dat
4 16 -8.25 40.5 -8.25 8.25 40.5 -8.25 8.836 40.5 -10.25 -8.836 40.5 -10.25
3 16 8.25 40.5 -8.25 10.25 40.5 -8.836 8.836 40.5 -10.25
1 16 -13.5 23 -13.5 0 -2.5 0 -7 0 0 0 0 -2.5 box2-5.dat
4 16 -15 40.5 -15 -11 40.5 -15 -11 30 -16 -16 30 -16
4 16 -16 30 -11 -15 40.5 -11 -15 40.5 -15 -16 30 -16
4 16 -11 30 -16 -11 40.5 -12.414 -11 16 -12.414 -11 16 -16
3 16 -12.414 40.5 -11 -15 40.5 -11 -16 30 -11
3 16 -11 40.5 -15 -11 40.5 -12.414 -11 30 -16
4 16 -16 16 -11 -12.414 16 -11 -12.414 40.5 -11 -16 30 -11
4 16 -12.414 40.5 -11 -11 40.5 -12.414 -11 40.5 -15 -15 40.5 -11
3 16 -15 40.5 -15 -15 40.5 -11 -11 40.5 -15
2 24 -15 40.5 -15 -16 30 -16
2 24 -11 30 -16 -11 40.5 -15
2 24 -15 40.5 -11 -16 30 -11
2 24 -11 40.5 -15 -15 40.5 -15
2 24 -15 40.5 -11 -15 40.5 -15
2 24 -12.414 40.5 -11 -15 40.5 -11
2 24 -11 40.5 -12.414 -11 40.5 -15
2 24 -11 16 -12.414 -11 16 -16
2 24 -12.414 16 -11 -16 16 -11
1 16 -10.625 16 -10.625 -1.082 0 .707 0 24.5 0 -1.082 0 -.707 box3u4p.dat
1 16 -10.25 28.25 0 0 1 0 0 0 12.25 8.836 0 0 rect2p.dat
4 16 -8.25 40.5 8.25 -8.25 40.5 -8.25 -10.25 40.5 -8.836 -10.25 40.5 8.836
3 16 -8.25 40.5 -8.25 -8.836 40.5 -10.25 -10.25 40.5 -8.836
1 16 -13.5 23 13.5 0 0 -2.5 -7 0 0 0 2.5 0 box2-5.dat
4 16 -15 40.5 15 -15 40.5 11 -16 30 11 -16 30 16
4 16 -11 30 16 -11 40.5 15 -15 40.5 15 -16 30 16
4 16 -16 30 11 -12.414 40.5 11 -12.414 16 11 -16 16 11
3 16 -11 40.5 12.414 -11 40.5 15 -11 30 16
3 16 -15 40.5 11 -12.414 40.5 11 -16 30 11
4 16 -11 16 16 -11 16 12.414 -11 40.5 12.414 -11 30 16
4 16 -11 40.5 12.414 -12.414 40.5 11 -15 40.5 11 -11 40.5 15
3 16 -15 40.5 15 -11 40.5 15 -15 40.5 11
2 24 -15 40.5 15 -16 30 16
2 24 -16 30 11 -15 40.5 11
2 24 -11 40.5 15 -11 30 16
2 24 -15 40.5 11 -15 40.5 15
2 24 -11 40.5 15 -15 40.5 15
2 24 -11 40.5 12.414 -11 40.5 15
2 24 -12.414 40.5 11 -15 40.5 11
2 24 -12.414 16 11 -16 16 11
2 24 -11 16 12.414 -11 16 16
1 16 -10.625 16 10.625 -1.082 0 -.707 0 24.5 0 1.082 0 -.707 box3u4p.dat
4 16 8.25 40.5 8.25 -8.25 40.5 8.25 -8.836 40.5 10.25 8.836 40.5 10.25
3 16 -8.25 40.5 8.25 -10.25 40.5 8.836 -8.836 40.5 10.25
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-03-26 17:35:02
Confirmed the hidden triangle:
3 16 -8 6 0 -8 5 0 -2.5 6 0
3 16 -8 6 0 -8 5 0 -2.5 6 0
removed collision and superflous triangle
Update ring primitives via script. This will not reset the vote status of the part.
2024-05-09 14:40:03
2024-11-11 15:36:11
2025-01-19 22:06:15
2025-01-20 03:34:50
Release 2025-01
