File Detail parts/34987.dat

Official File parts/34987.dat

Part Attributes:

File Header:

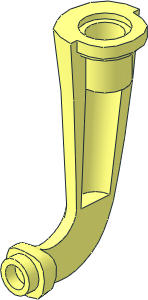

0 ~Animal Trunk Right
0 Name: 34987.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS elephant, Mammoth

0 !HISTORY 2024-11-24 {LEGO Instructions App} Original part shape
0 !HISTORY 2024-11-24 [GeraldLasser] File preparation for LDraw Parts Tracker, Complete Rewrite from initial version by Wiktor Knosala
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10

Show contents
