Official File parts/35017.dat
Part Attributes:
File Header:

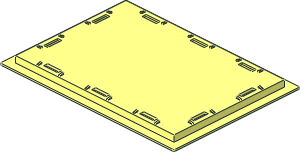

0 Container 22 x 16 x 6 Box Bygglek Bottom
0 Name: 35017.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2023-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Ikea
0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05
Show contents
1 16 180 -24 60 0 0 -1 0 1 0 1 0 0 s\35014s01.dat
4 16 137.5 -24 128 137.5 -24 118 178 -24 77.5 188 -24 77.5
3 16 137.5 -24 128 188 -24 77.5 198 -24 138
4 16 188 -20 77.5 180 -20 77.5 137.5 -20 120 137.5 -20 128
3 16 188 -20 77.5 137.5 -20 128 195 -20 135
1 16 180 -24 -60 0 0 -1 0 1 0 -1 0 0 s\35014s01.dat
4 16 178 -24 -77.5 137.5 -24 -118 137.5 -24 -128 188 -24 -77.5
3 16 188 -24 -77.5 137.5 -24 -128 198 -24 -138
4 16 137.5 -20 -120 180 -20 -77.5 188 -20 -77.5 137.5 -20 -128
3 16 137.5 -20 -128 188 -20 -77.5 195 -20 -135
4 16 195 -20 -135 188 -20 -77.5 188 -20 77.5 195 -20 135
4 16 198 -24 138 188 -24 77.5 188 -24 -77.5 198 -24 -138
1 16 214 -9 154 0 0 3 0 4 0 3 0 0 1-4cylo.dat
1 16 214 -9 154 0 0 3 0 1 0 3 0 0 1-4chrd.dat
1 16 214 -5 154 0 0 3 0 -1 0 3 0 0 1-4chrd.dat
3 16 217 -9 154 214 -9 157 198 -9 138
3 16 214 -5 157 217 -5 154 195 -5 135
1 16 214 -9 -154 0 0 3 0 4 0 -3 0 0 1-4cylo.dat
1 16 214 -9 -154 0 0 3 0 1 0 -3 0 0 1-4chrd.dat
1 16 214 -5 -154 0 0 3 0 -1 0 -3 0 0 1-4chrd.dat
3 16 214 -9 -157 217 -9 -154 198 -9 -138
3 16 217 -5 -154 214 -5 -157 195 -5 -135
4 16 195 -5 -135 195 -5 135 217 -5 154 217 -5 -154
1 16 217 -7 0 0 -1 0 0 0 -2 154 0 0 rect2p.dat
4 16 217 -9 154 198 -9 138 198 -9 -138 217 -9 -154
1 16 0 -24 0 0 0 -198 0 15 0 138 0 0 box4.dat
0 BFC INVERTNEXT
1 16 0 -20 0 0 0 -195 0 15 0 135 0 0 box4.dat
1 16 0 -24 120 -1 0 0 0 1 0 0 0 -1 s\35014s01.dat
4 16 -137.5 -24 118 -178 -24 77.5 178 -24 77.5 137.5 -24 118
4 16 178 -24 77.5 -178 -24 77.5 -178 -24 42.5 178 -24 42.5
4 16 -198 -24 138 -137.5 -24 128 137.5 -24 128 198 -24 138
4 16 -195 -20 135 195 -20 135 137.5 -20 128 -137.5 -20 128
4 16 -180 -20 77.5 -137.5 -20 120 137.5 -20 120 180 -20 77.5
4 16 180 -20 77.5 180 -20 42.5 -180 -20 42.5 -180 -20 77.5
1 16 0 -24 -120 -1 0 0 0 1 0 0 0 1 s\35014s01.dat
4 16 178 -24 -77.5 -178 -24 -77.5 -137.5 -24 -118 137.5 -24 -118
4 16 -178 -24 -42.5 -178 -24 -77.5 178 -24 -77.5 178 -24 -42.5
4 16 137.5 -24 -128 -137.5 -24 -128 -198 -24 -138 198 -24 -138
4 16 137.5 -20 -128 195 -20 -135 -195 -20 -135 -137.5 -20 -128
4 16 137.5 -20 -120 -137.5 -20 -120 -180 -20 -77.5 180 -20 -77.5
4 16 -180 -20 -42.5 180 -20 -42.5 180 -20 -77.5 -180 -20 -77.5
4 16 188 -20 42.5 188 -20 -42.5 -188 -20 -42.5 -188 -20 42.5
4 16 188 -24 42.5 -188 -24 42.5 -188 -24 -42.5 188 -24 -42.5
4 16 195 -5 135 -195 -5 135 -214 -5 157 214 -5 157
1 16 0 -7 157 -214 0 0 0 0 -2 0 -1 0 rect2p.dat
4 16 -214 -9 157 -198 -9 138 198 -9 138 214 -9 157
4 16 -214 -5 -157 -195 -5 -135 195 -5 -135 214 -5 -157
1 16 0 -7 -157 214 0 0 0 0 -2 0 1 0 rect2p.dat
4 16 198 -9 -138 -198 -9 -138 -214 -9 -157 214 -9 -157
1 16 -180 -24 60 0 0 1 0 1 0 1 0 0 s\35014s01.dat
4 16 -178 -24 77.5 -137.5 -24 118 -137.5 -24 128 -188 -24 77.5
3 16 -188 -24 77.5 -137.5 -24 128 -198 -24 138
4 16 -137.5 -20 120 -180 -20 77.5 -188 -20 77.5 -137.5 -20 128
3 16 -137.5 -20 128 -188 -20 77.5 -195 -20 135
1 16 -180 -24 -60 0 0 1 0 1 0 -1 0 0 s\35014s01.dat
4 16 -137.5 -24 -128 -137.5 -24 -118 -178 -24 -77.5 -188 -24 -77.5
3 16 -137.5 -24 -128 -188 -24 -77.5 -198 -24 -138
4 16 -188 -20 -77.5 -180 -20 -77.5 -137.5 -20 -120 -137.5 -20 -128
3 16 -188 -20 -77.5 -137.5 -20 -128 -195 -20 -135
4 16 -188 -20 77.5 -188 -20 -77.5 -195 -20 -135 -195 -20 135
4 16 -198 -24 -138 -188 -24 -77.5 -188 -24 77.5 -198 -24 138
1 16 -214 -9 154 0 0 -3 0 4 0 3 0 0 1-4cylo.dat
1 16 -214 -9 154 0 0 -3 0 1 0 3 0 0 1-4chrd.dat
1 16 -214 -5 154 0 0 -3 0 -1 0 3 0 0 1-4chrd.dat
3 16 -217 -9 154 -198 -9 138 -214 -9 157
3 16 -217 -5 154 -214 -5 157 -195 -5 135
1 16 -214 -9 -154 0 0 -3 0 4 0 -3 0 0 1-4cylo.dat
1 16 -214 -9 -154 0 0 -3 0 1 0 -3 0 0 1-4chrd.dat
1 16 -214 -5 -154 0 0 -3 0 -1 0 -3 0 0 1-4chrd.dat
3 16 -198 -9 -138 -217 -9 -154 -214 -9 -157
3 16 -214 -5 -157 -217 -5 -154 -195 -5 -135
4 16 -217 -5 154 -195 -5 135 -195 -5 -135 -217 -5 -154
1 16 -217 -7 0 0 1 0 0 0 -2 -154 0 0 rect2p.dat
4 16 -198 -9 -138 -198 -9 138 -217 -9 154 -217 -9 -154
1 16 -120 -24 120 -1 0 0 0 1 0 0 0 -1 s\35014s01.dat
4 16 -17.5 -24 128 -102.5 -24 128 -102.5 -24 118 -17.5 -24 118
4 16 -102.5 -20 120 -102.5 -20 128 -17.5 -20 128 -17.5 -20 120
1 16 120 -24 120 1 0 0 0 1 0 0 0 -1 s\35014s01.dat
4 16 102.5 -24 118 102.5 -24 128 17.5 -24 128 17.5 -24 118
4 16 17.5 -20 128 102.5 -20 128 102.5 -20 120 17.5 -20 120
1 16 -120 -24 -120 -1 0 0 0 1 0 0 0 1 s\35014s01.dat
4 16 -102.5 -24 -118 -102.5 -24 -128 -17.5 -24 -128 -17.5 -24 -118
4 16 -17.5 -20 -128 -102.5 -20 -128 -102.5 -20 -120 -17.5 -20 -120
1 16 120 -24 -120 1 0 0 0 1 0 0 0 1 s\35014s01.dat
4 16 17.5 -24 -128 102.5 -24 -128 102.5 -24 -118 17.5 -24 -118
4 16 102.5 -20 -120 102.5 -20 -128 17.5 -20 -128 17.5 -20 -120
1 16 -179 -20 -18 0 0 -4 0 -1 0 1 0 0 s\35014s02.dat
1 16 -179 -20 18 0 0 -4 0 -1 0 -1 0 0 s\35014s02.dat
1 16 -181 -20 0 0 0 -2 0 20 0 18 0 0 box3u8p.dat
1 16 -179 -20 -102 0 0 -4 0 -1 0 -1 0 0 s\35014s02.dat
1 16 -181 -20 -110.5 0 0 2 0 20 0 -8.5 0 0 box3u8p.dat
1 16 -162 -20 -123 -1 0 0 0 -1 0 0 0 4 s\35014s02.dat
1 16 -170.5 -20 -121 -8.5 0 0 0 20 0 0 0 2 box3u8p.dat
1 16 -179 -20 -119 0 0 -4 0 20 0 -4 0 0 1-4cylo.dat
1 16 -179 0 -119 0 0 -4 0 -1 0 -4 0 0 1-4disc.dat
1 16 -78 -20 -119 1 0 0 0 -1 0 0 0 -4 s\35014s02.dat
1 16 -42 -20 -119 -1 0 0 0 -1 0 0 0 -4 s\35014s02.dat
1 16 -60 -20 -121 18 0 0 0 20 0 0 0 -2 box3u8p.dat
1 16 -179 -20 102 0 0 -4 0 -1 0 1 0 0 s\35014s02.dat
1 16 -181 -20 110.5 0 0 2 0 20 0 8.5 0 0 box3u8p.dat
1 16 -162 -20 123 -1 0 0 0 -1 0 0 0 -4 s\35014s02.dat
1 16 -170.5 -20 121 -8.5 0 0 0 20 0 0 0 -2 box3u8p.dat
1 16 -179 -20 119 0 0 -4 0 20 0 4 0 0 1-4cylo.dat
1 16 -179 0 119 0 0 -4 0 -1 0 4 0 0 1-4disc.dat
1 16 -78 -20 119 1 0 0 0 -1 0 0 0 4 s\35014s02.dat
1 16 -42 -20 119 -1 0 0 0 -1 0 0 0 4 s\35014s02.dat
1 16 -60 -20 121 18 0 0 0 20 0 0 0 2 box3u8p.dat
1 16 179 -20 -18 0 0 4 0 -1 0 1 0 0 s\35014s02.dat
1 16 179 -20 18 0 0 4 0 -1 0 -1 0 0 s\35014s02.dat
1 16 181 -20 0 0 0 2 0 20 0 18 0 0 box3u8p.dat
1 16 179 -20 -102 0 0 4 0 -1 0 -1 0 0 s\35014s02.dat
1 16 181 -20 -110.5 0 0 -2 0 20 0 -8.5 0 0 box3u8p.dat
1 16 162 -20 -123 1 0 0 0 -1 0 0 0 4 s\35014s02.dat
1 16 170.5 -20 -121 8.5 0 0 0 20 0 0 0 2 box3u8p.dat
1 16 179 -20 -119 0 0 4 0 20 0 -4 0 0 1-4cylo.dat
1 16 179 0 -119 0 0 4 0 -1 0 -4 0 0 1-4disc.dat
1 16 78 -20 -119 -1 0 0 0 -1 0 0 0 -4 s\35014s02.dat
1 16 42 -20 -119 1 0 0 0 -1 0 0 0 -4 s\35014s02.dat
1 16 60 -20 -121 -18 0 0 0 20 0 0 0 -2 box3u8p.dat
1 16 179 -20 102 0 0 4 0 -1 0 1 0 0 s\35014s02.dat
1 16 181 -20 110.5 0 0 -2 0 20 0 8.5 0 0 box3u8p.dat
1 16 162 -20 123 1 0 0 0 -1 0 0 0 -4 s\35014s02.dat
1 16 170.5 -20 121 8.5 0 0 0 20 0 0 0 -2 box3u8p.dat
1 16 179 -20 119 0 0 4 0 20 0 4 0 0 1-4cylo.dat
1 16 179 0 119 0 0 4 0 -1 0 4 0 0 1-4disc.dat
1 16 78 -20 119 -1 0 0 0 -1 0 0 0 4 s\35014s02.dat
1 16 42 -20 119 1 0 0 0 -1 0 0 0 4 s\35014s02.dat
1 16 60 -20 121 -18 0 0 0 20 0 0 0 2 box3u8p.dat
0 BFC INVERTNEXT
1 16 0 -20 0 0 0 159 0 20 0 99 0 0 box4.dat
1 16 0 -20 0 0 0 162 0 20 0 102 0 0 box4.dat
4 16 -162 0 -102 -159 0 -99 159 0 -99 162 0 -102
4 16 162 0 -102 159 0 -99 159 0 99 162 0 102
4 16 -162 0 102 162 0 102 159 0 99 -159 0 99
4 16 -162 0 -102 -162 0 102 -159 0 99 -159 0 -99
1 16 0 -20 0 159 0 0 0 15 0 0 0 -1.5 box3u2p.dat
1 16 0 -20 50.25 0 0 -1.5 0 13 0 -48.75 0 0 box3u2p.dat
1 16 0 -20 -50.25 0 0 -1.5 0 13 0 48.75 0 0 box3u2p.dat
2 24 -179 -20 -119 -179 0 -119
2 24 -179 0 119 -179 -20 119
2 24 179 0 -119 179 -20 -119
2 24 179 -20 119 179 0 119
