File Detail parts/36017.dat

Official File parts/36017.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

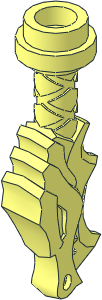

Minifig Weapon Sword Hilt with Dragon Head

File Header:

0 Minifig Weapon Sword Hilt with Dragon Head
0 Name: 36017.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Accessory

0 !HISTORY 2021-03-29 {LEGO/Unity Microgame} Original part shape
0 !HISTORY 2021-09-07 [GeraldLasser] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02

Show contents

1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 stud2.dat
1 16 0 0 0 7.5 0 0 0 3.5 0 0 0 -7.5 4-4cylc.dat
1 16 0 3.5 0 7.5 0 0 0 -1 0 0 0 -7.5 4-4disc.dat
1 16 0 5.5 0 5.25 0 0 0 -2 0 0 0 -5.25 4-4cylc.dat

0 // Hilt
1 16 0 5.5 0 3.5 0 0 0 13.2 0 0 0 -3.5 4-4cylo.dat
1 16 0 5.5 0 0 0 1 0 1.1 0 1 0 0 s\93247s02.dat
1 16 0 5.5 0 0 0 1 0 1.1 0 -1 0 0 s\93247s02.dat
1 16 0 5.5 0 0 0 -1 0 1.1 0 1 0 0 s\93247s02.dat
1 16 0 5.5 0 0 0 -1 0 1.1 0 -1 0 0 s\93247s02.dat
1 16 0 8.8 0 1 0 0 0 1.1 0 0 0 -1 s\93247s01.dat
1 16 0 8.8 0 1 0 0 0 1.1 0 0 0 1 s\93247s01.dat
1 16 0 8.8 0 -1 0 0 0 1.1 0 0 0 -1 s\93247s01.dat
1 16 0 8.8 0 -1 0 0 0 1.1 0 0 0 1 s\93247s01.dat
1 16 0 12.1 0 0 0 1 0 1.1 0 1 0 0 s\93247s02.dat
1 16 0 12.1 0 0 0 1 0 1.1 0 -1 0 0 s\93247s02.dat
1 16 0 12.1 0 0 0 -1 0 1.1 0 1 0 0 s\93247s02.dat
1 16 0 12.1 0 0 0 -1 0 1.1 0 -1 0 0 s\93247s02.dat
1 16 0 15.4 0 1 0 0 0 1.1 0 0 0 -1 s\93247s01.dat
1 16 0 15.4 0 1 0 0 0 1.1 0 0 0 1 s\93247s01.dat
1 16 0 15.4 0 -1 0 0 0 1.1 0 0 0 -1 s\93247s01.dat
1 16 0 15.4 0 -1 0 0 0 1.1 0 0 0 1 s\93247s01.dat

0 // Head
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\36017s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\36017s01.dat

0 // Seam
4 16 -.738 20.832 7.368 .738 20.832 7.368 .736 22.602 6.527 -.736 22.602 6.527
4 16 .736 22.602 6.527 .75 24.546 6.125 -.75 24.546 6.125 -.736 22.602 6.527
4 16 -.769 26.65 6.512 -.75 24.546 6.125 .75 24.546 6.125 .769 26.65 6.512
4 16 .769 28.273 7.863 -.769 28.273 7.863 -.769 26.65 6.512 .769 26.65 6.512
4 16 .733 29.472 10.169 -.733 29.472 10.169 -.769 28.273 7.863 .769 28.273 7.863
4 16 .733 29.472 10.169 .765 31.672 8.602 -.765 31.672 8.602 -.733 29.472 10.169
4 16 -.765 31.672 8.602 .765 31.672 8.602 .729 33.723 7.505 -.729 33.723 7.505
4 16 .711 36.372 6.882 -.711 36.372 6.882 -.729 33.723 7.505 .729 33.723 7.505
4 16 -.738 39.307 6.346 -.711 36.372 6.882 .711 36.372 6.882 .738 39.307 6.346
4 16 -.738 39.307 6.346 .738 39.307 6.346 .725 41.055 6.464 -.725 41.055 6.464
4 16 .725 41.055 6.464 .743 43.327 7.245 -.743 43.327 7.245 -.725 41.055 6.464
4 16 -.773 45.395 8.653 -.743 43.327 7.245 .743 43.327 7.245 .773 45.395 8.653
4 16 .752 46.524 10.962 -.752 46.524 10.962 -.773 45.395 8.653 .773 45.395 8.653
4 16 -.752 46.524 10.962 .752 46.524 10.962 .753 50.558 5.355 -.753 50.558 5.355
4 16 .753 50.558 5.355 .756 51.535 3.154 -.756 51.535 3.154 -.753 50.558 5.355
3 16 -.738 20.832 7.368 0 18.066039 3.5 .738 20.832 7.368
3 16 0 53.237 4.206 -.756 51.535 3.154 .756 51.535 3.154

2 24 -.738 20.832 7.368 .738 20.832 7.368
2 24 -.733 29.472 10.169 .733 29.472 10.169
2 24 -.752 46.524 10.962 .752 46.524 10.962
2 24 -.756 51.535 3.154 .756 51.535 3.154

5 24 .711 36.372 6.882 -.711 36.372 6.882 .729 33.723 7.505 .738 39.307 6.346
5 24 .729 33.723 7.505 -.729 33.723 7.505 .765 31.672 8.602 -.711 36.372 6.882
5 24 .769 26.65 6.512 -.769 26.65 6.512 -.75 24.546 6.125 -.769 28.273 7.863
5 24 .736 22.602 6.527 -.736 22.602 6.527 .738 20.832 7.368 .75 24.546 6.125
5 24 .743 43.327 7.245 -.743 43.327 7.245 -.725 41.055 6.464 .773 45.395 8.653
5 24 .765 31.672 8.602 -.765 31.672 8.602 -.729 33.723 7.505 -.733 29.472 10.169
5 24 .75 24.546 6.125 -.75 24.546 6.125 -.736 22.602 6.527 .769 26.65 6.512
5 24 .725 41.055 6.464 -.725 41.055 6.464 .738 39.307 6.346 .743 43.327 7.245
5 24 .769 28.273 7.863 -.769 28.273 7.863 .769 26.65 6.512 -.733 29.472 10.169
5 24 .773 45.395 8.653 -.773 45.395 8.653 -.743 43.327 7.245 -.752 46.524 10.962
5 24 .753 50.558 5.355 -.753 50.558 5.355 .756 51.535 3.154 .752 46.524 10.962
5 24 .738 39.307 6.346 -.738 39.307 6.346 -.711 36.372 6.882 -.725 41.055 6.464

0 // Condlines
5 24 0 18.678 -4.359 0 18.0722 -3.5 -1.3395 17.9724 -3.2337 1.3395 17.9724 -3.2337
5 24 0 17.769 -5.421 0 18.678 -4.359 3.401 18.976 -4.469 -3.401 18.976 -4.469
5 24 0 21.846 -7.109 0 23.017 -5.852 3.62 23.159 -5.882 -3.62 23.159 -5.882
5 24 0 34.64 -9.213 0 31.32 -8.697 5 31.423 -8.668 -5 31.423 -8.668
5 24 -1.3395 17.9724 -3.2337 0 18.678 -4.359 -1.642 17.8499 -3.0315 0 18.0722 -3.5
5 24 0 53.237 4.206 0 53.202 1.681 -3.86 52.287 3.099 3.86 52.287 3.099
5 24 0 53.202 1.681 0 54.001 .283 -3.784 53.432 .233 3.784 53.432 .233
5 24 0 48.851 -2.778 0 46.914 -2.887 -3.084 48.597 -2.378 3.084 48.597 -2.378
5 24 0 52.171 -3.076 0 50.944 -2.854 3.325 51.743 -2.902 -3.325 51.743 -2.902
5 24 0 19.09 -6.996 0 17.769 -5.421 4.5 18.931 -4.673 -4.5 18.931 -4.673
5 24 0 43.329 -4.951 0 39.742 -6.226 3.758 42.436 -5.188 -3.758 42.436 -5.188
5 24 0 54.001 .283 0 54.673 -1.247 -3.71 53.967 -.861 3.71 53.967 -.861
5 24 0 45.369 -4.455 0 43.329 -4.951 3.299 44.025 -4.744 -3.299 44.025 -4.744
5 24 -3.0511 18.7 -2.4952 -3.947 18.455 -3.674 -2.4233 18.1326 -3.0992 -3.6956 19.4719 -1.5308
5 24 3.401 18.976 -4.469 1.642 17.8499 -3.0315 3.947 18.455 -3.674 0 18.678 -4.359
5 24 0 54.673 -1.247 0 54.486 -2.6 3.56 53.832 -2.193 -3.56 53.832 -2.193
5 24 0 27.904 -9.836 0 26.455 -8.483 -5 27.724 -7.841 5 27.724 -7.841
5 24 0 23.36 -8.562 0 21.846 -7.109 4.66 22.939 -6.188 -4.66 22.939 -6.188
5 24 0 54.486 -2.6 0 53.875 -3.059 3.56 53.832 -2.193 -3.56 53.832 -2.193
5 24 0 23.017 -5.852 0 21.19 -5.825 3.62 23.159 -5.882 -3.62 23.159 -5.882
5 24 3.0511 18.7 -2.4952 3.947 18.455 -3.674 2.4233 18.1326 -3.0992 3.6956 19.4719 -1.5308
5 24 0 27.879 -6.984 0 25.85 -7.15 4.145 26.419 -7.004 -4.145 26.419 -7.004
5 24 0 45.401 -3.268 0 45.369 -4.455 -3.299 44.025 -4.744 3.299 44.025 -4.744
5 24 0 46.914 -2.887 0 45.401 -3.268 3.03 46.226 -2.616 -3.03 46.226 -2.616
5 24 0 53.875 -3.059 0 52.171 -3.076 3.415 52.97 -2.979 -3.415 52.97 -2.979
5 24 -3.401 18.976 -4.469 -1.642 17.8499 -3.0315 -3.947 18.455 -3.674 0 18.678 -4.359
5 24 1.3395 17.9724 -3.2337 0 18.678 -4.359 1.642 17.8499 -3.0315 0 18.0722 -3.5
5 24 0 31.32 -8.697 0 27.904 -9.836 5 29.19 -9.204 -5 29.19 -9.204
5 24 0 21.19 -5.825 0 19.09 -6.996 -3.968 20.063 -6.272 3.968 20.063 -6.272
5 24 0 25.85 -7.15 0 23.36 -8.562 4.264 24.426 -7.755 -4.264 24.426 -7.755
5 24 0 50.944 -2.854 0 48.851 -2.778 3.084 48.597 -2.378 -3.084 48.597 -2.378
5 24 0 26.455 -8.483 0 27.879 -6.984 4.119 28.288 -7.052 -4.119 28.288 -7.052

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2021-09-07 20:45:01

Suggestions on Origin and orientation welcome.

Stud up?

Origin in the middle of the grip?

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2021-09-07 22:05:01

missed edge lines

Philippe Hurbain [Philo]

made the following comment.

2021-09-08 14:20:01

Usage as hilt implies a 180 degrees upside down orientation, like other swords (blade up). Then origin at base of stud becomes "natural"

Mark Kennedy [mkennedy]

made the following comment.

2021-09-10 03:35:01

You may want to consider replacing the quads between the two dragon halves with rect2p primitives.
Or move the edge lines to the subfile.

Gerald Lasser [GeraldLasser]

made the following comment.

2021-09-10 07:10:01

as I did not do much to the raw file (except for the grip), many of the quads are not rectangular, but you are right, they are just a few decimals apart, that won't be visible, so I can normalize it in that way to make it fit the rect2p

Magnus Forsberg [MagFors]

posted a vote of Hold.

2021-10-07 16:05:01

Why are these edge lines added?
2 24 2.347 -18.035 3.228 2.955 -18.622 2.567
2 24 3.344 -19.269 1.647 3.421 -20.143 -.001
2 24 2.955 -18.622 2.567 3.344 -19.269 1.647
2 24 2.837 -18.528 -2.658 2.354 -18.03 -3.219
2 24 3.344 -19.262 -1.648 2.837 -18.528 -2.658
2 24 -3.344 -19.269 1.647 -2.955 -18.622 2.567
2 24 -3.046 -18.784 -2.326 -3.434 -19.485 -1.302
2 24 -3.421 -20.143 -.001 -3.344 -19.269 1.647
2 24 -3.434 -19.485 -1.302 -3.421 -20.143 -.001

I see no reason the make rect2p. Move the edge line to the subfile.

I agree with Philo. This orientation looks upside down.
Stud up. Dragon down.

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2021-12-19 14:55:02

Max Martin Richter [MMR1988]

posted a vote of Certify.

2021-12-26 10:25:02

[PTadmin]

edited the part header.

2022-01-14 02:20:01

Vincent Messenet [Cheenzo]

posted a vote of Certify.

2025-02-15 10:50:38
