Official File parts/3622p06.dat
Part Attributes:
Base Part: 3622.dat
File Header:

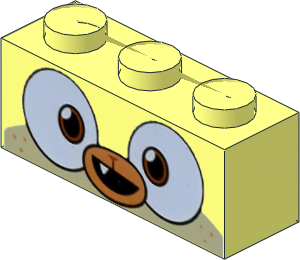

0 Brick 1 x 3 with Dog Face Wide Dark Orange Eyes, Medium Nougat Muzzle, Open Mouth Crooked Smile with 1 Tooth Pattern
0 Name: 3622p06.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Part UPDATE 2023-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 3622pb091, Rebrickable 3622pr0017, Set 41452, Unikitty
0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3622s01.dat
0 !TEXMAP START PLANAR -30 0 -10 30 0 -10 -30 24 -10 3622p06.png
0 !: 4 16 30 0 -10 -30 0 -10 -30 24 -10 30 24 -10
0 !TEXMAP FALLBACK
4 16 30 0 -10 -30 0 -10 -30 24 -10 30 24 -10
0 !TEXMAP END
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2019-01-20 17:28:03
Experimenting with TEXMAP. Not quite right.
2019-01-20 17:40:01
2019-01-20 18:50:01
Yeah, can be painful. I generally materialize the texmap triangle to get it right, then copy the coordinates to texmap. Like this:
3 16 -30 0 -11 30 0 -11 -30 24 -11
3 16 -30 0 -11 30 0 -11 -30 24 -11
Still something wrong. The image is leaning to the left.
2019-01-30 11:49:23
2019-01-30 16:10:01
2019-01-31 08:55:01
I have adjusted the TEXMAP matrix (thanks for the help Philo). Is this any better? When I download to LDView (v4.3 (x64)) it doesn't download the image file. Should it?
Looks perfect to me. Works with the same LDView version as yours. Is texmap enabled? (edit -> preference -> primitives tab -> use texture maps)
[PTadmin]
edited the part header.
2020-05-09 19:05:01
2020-10-06 12:10:01
2023-05-11 23:53:05
Needs set keyword
2023-05-29 09:54:29
how much work would it be to make a standard pattern without TEXMAP?
2023-05-30 04:48:31
Set 41452
Thanks Chris. I would have eventually looked it up but you saved me the trouble.
2023-05-30 13:13:34
2023-05-30 13:13:47
Added external reference
2023-06-24 02:37:20
Release 2023-03
