Official File parts/10202p00.dat
Part Attributes:
Base Part: 10202.dat
File Header:

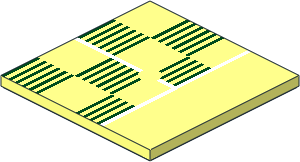

0 Tile 6 x 6 with Groove and Underside Studs with Dark Green and White Lines Pattern
0 Name: 10202p00.dat
0 Author: Vincent Messenet [Cheenzo]
0 !LDRAW_ORG Part UPDATE 2020-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 10202pb015, Manchester United, Old Trafford
0 !KEYWORDS Rebrickable 10202pr0006, Set 10272
0 !HISTORY 2020-06-28 [PTadmin] Official Update 2020-01
