Official File parts/3664p06.dat
Part Attributes:
Base Part: 3664.dat
File Header:

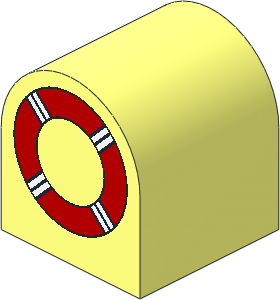

0 Duplo Brick 2 x 2 x 2 Curved Top with Life Preserver Pattern
0 Name: 3664p06.dat
0 Author: Takeshi Takahashi [RainbowDolphin]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Brick
0 !KEYWORDS boat, bricklink 3664pb10, Fishing, harbour, Rebrickable 3664pr0022
0 !KEYWORDS Set 1041, Set 2388, Set 2454, Set 2625, Set 2626, Set 2643
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3664s01.dat
1 16 0 -24 0 1 0 0 0 1 0 0 0 1 s\3664p06s01.dat
1 16 0 -24 0 0 1 0 -1 0 0 0 0 1 s\3664p06s01.dat
1 16 0 -24 0 -1 0 0 0 -1 0 0 0 1 s\3664p06s01.dat
1 16 0 -24 0 0 -1 0 1 0 0 0 0 1 s\3664p06s01.dat
1 16 0 -24 0 -1 0 0 0 1 0 0 0 1 s\3664p06s01.dat
1 16 0 -24 0 0 -1 0 -1 0 0 0 0 1 s\3664p06s01.dat
1 16 0 -24 0 1 0 0 0 -1 0 0 0 1 s\3664p06s01.dat
1 16 0 -24 0 0 1 0 1 0 0 0 0 1 s\3664p06s01.dat
1 16 0 -24 -40 40 0 0 0 0 -40 0 1 0 48\1-8chrd.dat
1 16 0 -24 -40 -40 0 0 0 0 -40 0 1 0 48\1-8chrd.dat
1 16 0 -24 -40 0 0 40 -40 0 0 0 1 0 48\1-8chrd.dat
1 16 0 -24 -40 0 0 -40 -40 0 0 0 1 0 48\1-8chrd.dat
3 16 -40 -24 -40 -33 -24 -40 -33 -30.5637 -40
3 16 -40 -24 -40 -33 -30.5637 -40 -30.4887 -36.6291 -40
3 16 -40 -24 -40 -30.4887 -36.6291 -40 -28.284 -52.284 -40
3 16 -28.284 -52.284 -40 -30.4887 -36.6291 -40 -27.9774 -42.6945 -40
3 16 -28.284 -52.284 -40 -27.9774 -42.6945 -40 -23.3343 -47.3343 -40
3 16 -28.284 -52.284 -40 -23.3343 -47.3343 -40 -18.6945 -51.9774 -40
3 16 -28.284 -52.284 -40 -18.6945 -51.9774 -40 -12.6291 -54.4887 -40
3 16 -28.284 -52.284 -40 -12.6291 -54.4887 -40 0 -64 -40
3 16 0 -64 -40 -12.6291 -54.4887 -40 -6.5637 -57 -40
3 16 0 -64 -40 -6.5637 -57 -40 0 -57 -40
3 16 0 -64 -40 0 -57 -40 6.5637 -57 -40
3 16 0 -64 -40 6.5637 -57 -40 12.6291 -54.4887 -40
3 16 0 -64 -40 12.6291 -54.4887 -40 28.284 -52.284 -40
3 16 28.284 -52.284 -40 12.6291 -54.4887 -40 18.6945 -51.9774 -40
3 16 28.284 -52.284 -40 18.6945 -51.9774 -40 23.3343 -47.3343 -40
3 16 28.284 -52.284 -40 23.3343 -47.3343 -40 27.9774 -42.6945 -40
3 16 28.284 -52.284 -40 27.9774 -42.6945 -40 30.4887 -36.6291 -40
3 16 28.284 -52.284 -40 30.4887 -36.6291 -40 40 -24 -40
3 16 40 -24 -40 30.4887 -36.6291 -40 33 -30.5637 -40
3 16 40 -24 -40 33 -30.5637 -40 33 -24 -40
3 16 40 -24 -40 33 -24 -40 33 -17.4363 -40
3 16 -33 -24 -40 -40 -24 -40 -33 -17.4363 -40
3 16 40 24 -40 40 -24 -40 33 -17.4363 -40
3 16 40 24 -40 33 -17.4363 -40 30.4887 -11.3709 -40
3 16 40 24 -40 30.4887 -11.3709 -40 27.9774 -5.3055 -40
3 16 40 24 -40 27.9774 -5.3055 -40 23.3343 -.6657 -40
3 16 40 24 -40 23.3343 -.6657 -40 18.6945 3.9774 -40
3 16 40 24 -40 18.6945 3.9774 -40 12.6291 6.4887 -40
3 16 40 24 -40 12.6291 6.4887 -40 6.5637 9 -40
3 16 40 24 -40 6.5637 9 -40 0 9 -40
3 16 40 24 -40 0 9 -40 -40 24 -40
3 16 -40 24 -40 0 9 -40 -6.5637 9 -40
3 16 -40 24 -40 -6.5637 9 -40 -12.6291 6.4887 -40
3 16 -40 24 -40 -12.6291 6.4887 -40 -18.6945 3.9774 -40
3 16 -40 24 -40 -18.6945 3.9774 -40 -23.3343 -.6657 -40
3 16 -40 24 -40 -23.3343 -.6657 -40 -27.9774 -5.3055 -40
3 16 -40 24 -40 -27.9774 -5.3055 -40 -30.4887 -11.3709 -40
3 16 -40 24 -40 -30.4887 -11.3709 -40 -33 -17.4363 -40
3 16 -40 24 -40 -33 -17.4363 -40 -40 -24 -40
4 16 0 -43 -40 -13.4349 -37.4349 -40 -19 -24 -40 13.4349 -37.4349 -40
4 16 19 -24 -40 13.4349 -37.4349 -40 -19 -24 -40 -13.4349 -10.5651 -40
4 16 19 -24 -40 -13.4349 -10.5651 -40 0 -5 -40 13.4349 -10.5651 -40
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2020-05-10 13:45:01
2021-10-17 12:25:01
Awaiting hi-res update
Updated with hi-res
Existing certification-votes were deleted.
Existing certification-votes were deleted.
Overlapping surfaces in hi-res mode.
2022-11-14 03:45:02
Examining the problem...
IMHO reworking with total hi-res design seems to be the smartest way.
IMHO reworking with total hi-res design seems to be the smartest way.
Made hi-res and improved prim usage
2023-06-28 14:03:03
2023-06-28 15:38:02
would it be better to use these?
1 16 0 -24 -40 3 0 0 0 0 -3 0 1 0 48\2-4rin11.dat
1 16 0 -24 -40 4 0 0 0 0 -4 0 1 0 48\2-4ring9.dat
1 16 0 -24 -40 33 0 0 0 0 33 0 1 0 48\2-4ndis.dat
1 16 0 -24 -40 19 0 0 0 0 19 0 1 0 48\4-4disc.dat
1 16 0 -24 -40 3 0 0 0 0 -3 0 1 0 48\2-4rin11.dat
1 16 0 -24 -40 4 0 0 0 0 -4 0 1 0 48\2-4ring9.dat
1 16 0 -24 -40 33 0 0 0 0 33 0 1 0 48\2-4ndis.dat
1 16 0 -24 -40 19 0 0 0 0 19 0 1 0 48\4-4disc.dat
2023-06-28 16:47:36
Using 2 ring primitives like that will always generate more triangles than tang + chrd.
2023-06-28 20:00:30
maybe, but its much less code...
2023-06-28 21:50:02
Disc space is no longer an issue, rendering time is.
2024-01-09 20:34:51
2024-04-08 06:57:32
Header Edits
keywords:
boat, bricklink 3664pb10, Fishing, harbour, Set 1041, Set 2388, Set 2454, Set 2625, Set 2626, Set 2643
to
boat, Bricklink 3664pb10, Fishing, harbour, Set 1041, Set 2388, Set 2454, Set 2625, Set 2626, Set 2643, Rebrickable 3664pr0022, Brickowl 624329
Added keywords
2024-05-01 20:09:27
2024-05-28 02:57:17
Release 2024-04
