File Detail parts/3818px1.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/3818px1.dat

Part Attributes: Base Part: 3818.dat

External Sites:

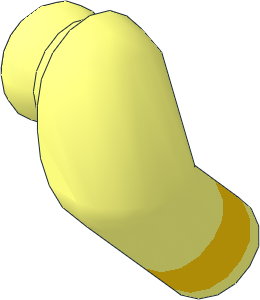

Minifig Arm Right with Yellow Stripe Pattern

File Header:

0 Minifig Arm Right with Yellow Stripe Pattern
0 Name: 3818px1.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Place at -15.552 9 0 relative to torso
0 !HELP Then rotate about x axis to give required elevation of arm
0 !HELP 0 = upper arm vertical
0 !HELP -45 = lower arm horizontal
0 !HELP -90 = upper arm horizontal
0 !HELP -135 = lower arm vertical
0 !HELP Then rotate 9.782 about z axis to align with slope of torso

0 BFC CERTIFY CCW

0 !KEYWORDS Bricklink 973pb2308, Disney, Donald Duck, set 71040

0 !PREVIEW 16 0 0 0 -1 0 0 0 1 0 0 0 -1

0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
