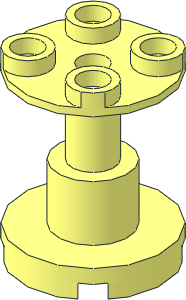

0 Support 2 x 2 x 2 Round with Open Hole and Stud Holders
0 Name: 3940b.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Space Stand
0 !HISTORY 2007-06-30 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [guyvivan] Made BFC compliant; changed edges/polygons to primitives; added missing surfaces (2004-11-16)
0 !HISTORY 2008-07-08 [sbliss] Restored essentially unmodified codelines (2004-11-16)
0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02
0 !HISTORY 2013-08-29 [cwdee] Updated description
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02
0 !HISTORY 2022-07-24 [ejboer] Subfiled for variants, extended description
0 !HISTORY 2022-12-31 [MagFors] Used prism primitives
0 !HISTORY 2024-05-02 [MagFors] Moved 3940 to 3940b
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3940s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3940s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\3940s02.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\3940s02.dat
1 16 0 0 0 0 0 1 0 1 0 1 0 0 s\3940s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\3940s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\3940s02.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\3940s02.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\3940s02.dat
0 BFC INVERTNEXT
1 16 0 0 0 4 0 0 0 28 0 0 0 4 4-4cylo.dat
1 16 5.25 44 14 2.9 0 0 0 3.8 0 2 0 2 tri3a1.dat
1 16 -5.25 44 14 -2.9 0 0 0 3.8 0 2 0 2 tri3a1.dat
1 16 14 44 -5.25 2 0 2 0 3.8 0 -2.9 0 0 tri3a1.dat
1 16 14 44 5.25 2 0 2 0 3.8 0 2.9 0 0 tri3a1.dat
1 16 -5.25 44 -14 -2.9 0 0 0 3.8 0 -2 0 -2 tri3a1.dat
1 16 5.25 44 -14 2.9 0 0 0 3.8 0 -2 0 -2 tri3a1.dat
1 16 -14 44 5.25 -2 0 -2 0 3.8 0 2.9 0 0 tri3a1.dat
1 16 -14 44 -5.25 -2 0 -2 0 3.8 0 -2.9 0 0 tri3a1.dat
Existing certification-votes were deleted.
This ldraw b-version is most like the current official 3940. That design has a hollow stem but is missing the triangular thingies on the bottom.
Our current official design is a mix of first a-version and the b-version, as they are described at Rebrickable.
https://rebrickable.com/parts/3940b/support-2-x-2-x-2-stand-with-reach-through-center-hole/
Since the stem is hollow it has a better likeness to the current ldraw b-version.
Strictly chronologically, this file should correspond to the rebrickable b-version , but maybe be ldraw c-version?
Side note: LDraw's 3940c can be RB's 3940a 2nd
Existing certification-votes were deleted.
Good to see that I've come to the same conclution twice, (in a mail to Admin yesterday).
Forgot about this review...
And a correct header and history.
This part is copyright © James Jessiman
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Guy Vivan,
Steve Bliss,
Chris Dee,
Evert-Jan Boer,
Magnus Forsberg,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
It is easy to create, maybe as 3940c? I think 3940a first variant and 3940b are the most common ones.
Will ask for a move-to file upload for 3940.dat as well
