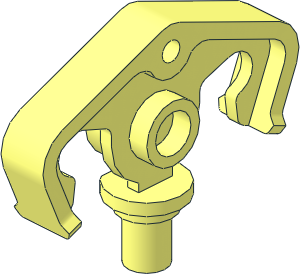

Minifig Weapon Grappling Hook Tip
File Header:
0 Minifig Weapon Grappling Hook Tip 0 Name: 40598b.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Part UPDATE 2024-11 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !CATEGORY Minifig Accessory 0 !KEYWORDS Minifig Accessory Pack #10 0 !HISTORY 2024-12-30 [OrionP] Official Update 2024-11
Show contents
1 16 2 -26 0 0 -1 0 1 0 0 0 0 1 stud2.dat 1 16 -.5 -26 0 0 1.375 0 -1 0 0 0 0 -1 stud4.dat 1 16 0 -10 0 5.5 0 0 0 -2.5 0 0 0 -5.5 4-4cylc.dat 1 16 0 0 0 -4 0 0 0 -10 0 0 0 -4 4-4cylc.dat 1 16 0 -12.5 0 7.5 0 0 0 -2.5 0 0 0 -7.5 3-8cylo.dat 1 16 0 -12.5 0 7.5 0 0 0 -2.5 0 0 0 7.5 3-8cylo.dat 1 16 0 -12.5 0 7.5 0 0 0 -1 0 0 0 -7.5 3-8chrd.dat 1 16 0 -12.5 0 7.5 0 0 0 -1 0 0 0 7.5 3-8chrd.dat 3 16 -5.3033 -12.5 5.3033 7.5 -12.5 0 -5.3033 -12.5 -5.3033 4 16 -5.3033 -12.5 5.3033 -5.3033 -12.5 -5.3033 -6 -12.5 -4.2607 -6 -12.5 4.2607 1 16 0 -15 0 7.5 0 0 0 1 0 0 0 -7.5 3-8chrd.dat 1 16 0 -15 0 7.5 0 0 0 1 0 0 0 7.5 3-8chrd.dat 3 16 -5.30325 -15 -5.30325 7.5 -15 0 -5.30325 -15 5.30325 4 16 -6 -15 -4.2607 -5.3033 -15 -5.3033 -5.3033 -15 5.3033 -6 -15 4.2607 1 16 -5.65165 -13.75 -4.782 0 1 -.34835 -1.25 0 0 0 0 .5213 rect3.dat 1 16 -5.65165 -13.75 4.782 0 1 -.34835 1.25 0 0 0 0 -.5213 rect3.dat 1 16 -6 -13.75 0 0 1 0 0 0 1.25 4.2607 0 0 rect2p.dat 5 24 -5.3033 -12.5 -5.3033 -5.3033 -15 -5.3033 -6 -15 -4.2607 -2.8703 -15 -6.9293 5 24 -5.3033 -12.5 5.3033 -5.3033 -15 5.3033 -6 -15 4.2607 -2.8703 -15 6.9293 1 16 2 -26 0 0 -1 0 0 0 1 -1 0 0 s\40598bs01.dat 1 16 2 -26 0 0 -1 0 0 0 1 1 0 0 s\40598bs01.dat 1 16 -.5 -26 0 0 1 0 0 0 1 -1 0 0 s\40598bs01.dat 1 16 -.5 -26 0 0 1 0 0 0 1 1 0 0 s\40598bs01.dat 0 BFC INVERTNEXT 1 16 2 -41 0 0 3.5 0 -2 0 0 0 0 -2 4-4cylc.dat 1 16 5.5 -41 0 0 -1 0 -2 0 0 0 0 -2 4-4ndis.dat 0 BFC INVERTNEXT 1 16 -.5 -41 0 0 -3.5 0 -2 0 0 0 0 -2 4-4cylc.dat 1 16 -4 -41 0 0 1 0 -2 0 0 0 0 -2 4-4ndis.dat 0 // Centre 1 16 2 -26 0 0 -2.5 0 0 0 10 10 0 0 3-16cylo.dat 1 16 .75 -30.7717 13.8519 0 0 -1.25 .9239 -1 0 -2.6173 0 0 rect2p.dat 1 16 .75 -27 10 0 0 -1.25 1 0 0 0 -1 0 rect2p.dat 0 BFC INVERTNEXT 1 16 2 -28 12 0 -2.5 0 0 0 -2 -2 0 0 3-16cylo.dat 0 BFC INVERTNEXT 1 16 2 -28 18 0 -2.5 0 0 0 4 4 0 0 3-16cylo.dat 0 BFC INVERTNEXT 1 16 2 -28 18 0 -2.5 0 0 0 -4 4 0 0 5-16cylo.dat 1 16 2 -22.8 19.7 0 -2.5 0 0 0 -1.5 -1.5 0 0 3-16cylo.dat 1 16 2 -20 21 0 -2.5 0 2.3097 0 -.95671 -.95671 0 -2.3097 1-8cylo.dat 1 16 .75 -20.92165 18.44515 0 0 1.25 1.87835 -1 0 .24515 0 0 rect2p.dat 1 16 .75 -24.2451 19.3284 0 0 1.25 .0593 1 0 -.2024 0 0 rect2p.dat 1 16 .75 -17.4804 20.55005 0 0 -1.25 -.2099 -1 0 -.50675 0 0 rect2p.dat 4 16 5.5 -16.1224 23.8285 2 -17.2705 21.0568 -.5 -17.2705 21.0568 -4 -16.1224 23.8285 2 24 5.5 -16.1224 23.8285 -4 -16.1224 23.8285 5 24 2 -19.0433 18.6903 -.5 -19.0433 18.6903 2 -18.2322 19.2322 2 -22.8 18.2 5 24 2 -22.8 18.2 -.5 -22.8 18.2 -.5 -19.0433 18.6903 -.5 -23.374 18.3142 5 24 2 -24.1858 19.126 -.5 -24.1858 19.126 -.5 -24.3044 19.5308 -.5 -23.8606 18.6394 5 24 2 -24.3044 19.5308 -.5 -24.3044 19.5308 -.5 -24.1858 19.126 -.5 -25.1716 20.8284 5 24 2 -31.6956 16.4692 -.5 -31.6956 16.4692 -.5 -32 18 -.5 -29.8478 11.2346 5 24 2 -29.8478 11.2346 -.5 -29.8478 11.2346 -.5 -31.6956 16.4692 -.5 -29.4142 10.5858 5 24 2 -28 10 -.5 -28 10 2 -26 10 2 -28.7654 10.1522 5 24 2 -19.0433 -18.6903 -.5 -19.0433 -18.6903 2 -18.2322 -19.2322 2 -22.8 -18.2 5 24 2 -22.8 -18.2 -.5 -22.8 -18.2 -.5 -19.0433 -18.6903 -.5 -23.374 -18.3142 5 24 2 -24.1858 -19.126 -.5 -24.1858 -19.126 -.5 -24.3044 -19.5308 -.5 -23.8606 -18.6394 5 24 2 -24.3044 -19.5308 -.5 -24.3044 -19.5308 -.5 -24.1858 -19.126 -.5 -25.1716 -20.8284 5 24 2 -31.6956 -16.4692 -.5 -31.6956 -16.4692 -.5 -32 -18 -.5 -29.8478 -11.2346 5 24 2 -29.8478 -11.2346 -.5 -29.8478 -11.2346 -.5 -31.6956 -16.4692 -.5 -29.4142 -10.5858 5 24 2 -28 -10 -.5 -28 -10 2 -26 -10 2 -28.7654 -10.1522 1 16 2 -26 0 0 -2.5 0 0 0 10 -10 0 0 3-16cylo.dat 1 16 .75 -30.7717 -13.8519 0 0 -1.25 .9239 -1 0 2.6173 0 0 rect2p.dat 1 16 .75 -27 -10 0 0 -1.25 1 0 0 0 1 0 rect2p.dat 0 BFC INVERTNEXT 1 16 2 -28 -12 0 -2.5 0 0 0 -2 2 0 0 3-16cylo.dat 0 BFC INVERTNEXT 1 16 2 -28 -18 0 -2.5 0 0 0 4 -4 0 0 3-16cylo.dat 0 BFC INVERTNEXT 1 16 2 -28 -18 0 -2.5 0 0 0 -4 -4 0 0 5-16cylo.dat 1 16 2 -22.8 -19.7 0 -2.5 0 0 0 -1.5 1.5 0 0 3-16cylo.dat 1 16 2 -20 -21 0 -2.5 0 2.3097 0 -.95671 .95671 0 2.3097 1-8cylo.dat 1 16 .75 -20.92165 -18.44515 0 0 1.25 1.87835 -1 0 -.24515 0 0 rect2p.dat 1 16 .75 -24.2451 -19.3284 0 0 1.25 .0593 1 0 .2024 0 0 rect2p.dat 1 16 .75 -17.4804 -20.55005 0 0 -1.25 -.2099 -1 0 .50675 0 0 rect2p.dat 4 16 -.5 -17.2705 -21.0568 2 -17.2705 -21.0568 5.5 -16.1224 -23.8285 -4 -16.1224 -23.8285 2 24 5.5 -16.1224 -23.8285 -4 -16.1224 -23.8285 3 16 2 -36 0 2 -16.761 -3.827 2 -16.761 3.827 3 16 -.5 -36 0 -.5 -16.761 3.827 -.5 -16.761 -3.827 1 16 .75 -15 0 -1.25 0 0 0 -1.761 0 0 0 -3.827 box4o4a.dat 2 24 2 -16.761 3.827 -.5 -16.761 3.827 2 24 2 -16.761 -3.827 -.5 -16.761 -3.827 0 // Outside 1 16 5.5 -41 0 0 -9.5 0 -5 0 0 0 0 5 1-16cylo.dat 1 16 5.5 -30 22 0 -9.5 0 2.67878 0 -6.46716 6.46716 0 2.67878 1-4cylo.dat 1 16 .75 -41.04333 13.29614 0 0 -4.75 4.57617 1 0 11.38264 0 0 rect2p.dat 1 16 5.5 -41 0 0 -9.5 0 -5 0 0 0 0 -5 1-16cylo.dat 1 16 5.5 -30 -22 0 -9.5 0 2.67878 0 -6.46716 -6.46716 0 -2.67878 1-4cylo.dat 1 16 .75 -41.04333 -13.29614 0 0 -4.75 4.57617 1 0 -11.38264 0 0 rect2p.dat 4 16 5.5 -18.43208 24.78517 5.5 -16.1224 23.8285 -4 -16.1224 23.8285 -4 -18.43208 24.78517 4 16 5.5 -18.43208 24.78517 -4 -18.43208 24.78517 -4 -19.8179 25.3592 5.5 -19.8179 25.3592 1 16 .75 -23.56956 26.91318 0 0 -4.75 3.75166 -1 0 -1.55398 0 0 rect2p.dat 4 16 -4 -16.1224 -23.8285 5.5 -16.1224 -23.8285 5.5 -18.43208 -24.78517 -4 -18.43208 -24.78517 4 16 -4 -19.8179 -25.3592 -4 -18.43208 -24.78517 5.5 -18.43208 -24.78517 5.5 -19.8179 -25.3592 1 16 .75 -23.56956 -26.91318 0 0 -4.75 3.75166 -1 0 1.55398 0 0 rect2p.dat
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Gerald Lasser [GeraldLasser]
Part Library Admin
initially submitted the part.
2021-04-17 15:30:01
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2021-04-17 16:30:02
added complimentary condlines
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2021-07-06 11:00:02
added hole on second side
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2021-07-06 21:25:01
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2021-11-02 16:20:01
* Sticking out of the surface:

1 16 0 2.6 -15 0 0 2 0 3.5 0 -2 0 0 4-4cylc.dat

* It's a really bad idea (TM) to us a quad with a prim here:

4 4 0 6 -20 0 6 -17 2 6 -17 1.9135 6 -19.6195
1 4 0 -3.5 -15 0 0 5 0 9.5 0 -5 0 0 1-16cylo.dat

Check in LDView with prim substitution.
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2021-11-10 23:50:02
cylinder lowered

added a chrd into the subfile to avoid gaps during prim subst

Existing certification-votes were deleted.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2021-11-11 14:35:01
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Certify.
2021-11-12 13:55:02
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Hold.
2023-06-22 16:32:31
I think the origin should be the "end" cylinder and not the side stud
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2023-06-22 17:03:37
I put it there due to the fact that there is a stud and antistud there.

But usage wise, the base would be utilized more oftenm i can change
Orion Pobursky [OrionP]
Part Library Admin
made the following comment.
2023-06-22 17:25:15
I think the origin should be based on common usage. I don't see the stud being the most common attachment point.
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2023-06-22 21:53:41
moved origin
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2023-06-22 21:54:58
another try
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2023-06-22 21:56:52
two ndis were not rotated
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2024-11-27 13:52:09
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2024-12-09 09:56:27
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2024-12-27 23:55:53
Orion Pobursky [OrionP]
Part Library Admin
2024-12-30 06:25:48
Release 2024-11
