Unofficial File parts/4088ap02.dat
Part Attributes:
Base Part: 4088a.dat
File Header:

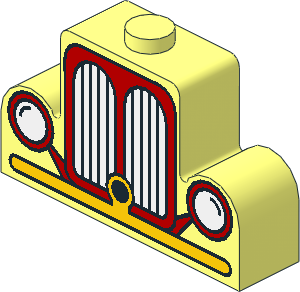

0 Brick 1 x 4 x 2 with Centre Stud Top with Red/Yellow Car Radiator Type 1 Pattern
0 Name: 4088ap02.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 4088px3, Brickowl 925459, Fabuland, Rebrickable 4088pr0003
0 !KEYWORDS Set 3629
0 !HISTORY 2018-12-08 [PTadmin] Official Update 2018-02
0 !HISTORY 2021-10-15 [Lasse_Deleuran] Fixed misaligned points due to 1-4ring5.dat
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2026-03-22 [MagFors] subfiled pattern
Show contents
0 // Front Surface
0 // Grille +x
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4088ap01s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4088ap01s01.dat
1 4 0 0 0 1 0 0 0 1 0 0 0 1 s\4088ap01s02.dat
1 4 0 0 0 -1 0 0 0 1 0 0 0 1 s\4088ap01s02.dat
1 14 0 0 0 1 0 0 0 1 0 0 0 1 s\4088ap01s03.dat
1 14 0 0 0 -1 0 0 0 1 0 0 0 1 s\4088ap01s03.dat
1 15 30 30 -10 5 0 0 0 0 5 0 1 0 1-4chrd.dat
1 15 30 30 -10 0 0 -5 5 0 0 0 1 0 1-4chrd.dat
1 15 30 30 -10 0 0 -5 -5 0 0 0 1 0 1-4chrd.dat
3 15 30 35 -10 35 30 -10 34 30 -10
3 15 30 35 -10 34 30 -10 33 30 -10
4 15 33 30 -10 30 27 -10 25 30 -10 30 35 -10
3 15 25 30 -10 30 27 -10 30 26 -10
3 15 25 30 -10 30 26 -10 30 25 -10
1 15 30 30 -10 3 0 0 0 0 -3 0 1 0 1-4chrd.dat
1 0 30 30 -10 1 0 0 0 0 -1 0 1 0 1-4ring3.dat
1 15 30 30 -10 1 0 0 0 0 -1 0 1 0 1-4ring4.dat
1 15 -30 30 -10 5 0 0 0 0 5 0 1 0 1-4chrd.dat
1 15 -30 30 -10 0 0 -5 5 0 0 0 1 0 1-4chrd.dat
1 15 -30 30 -10 0 0 -5 -5 0 0 0 1 0 1-4chrd.dat
3 15 -30 35 -10 -25 30 -10 -26 30 -10
3 15 -30 35 -10 -26 30 -10 -27 30 -10
4 15 -27 30 -10 -30 27 -10 -35 30 -10 -30 35 -10
3 15 -35 30 -10 -30 27 -10 -30 26 -10
3 15 -35 30 -10 -30 26 -10 -30 25 -10
1 15 -30 30 -10 3 0 0 0 0 -3 0 1 0 1-4chrd.dat
1 0 -30 30 -10 1 0 0 0 0 -1 0 1 0 1-4ring3.dat
1 15 -30 30 -10 1 0 0 0 0 -1 0 1 0 1-4ring4.dat
0 // non x-sym
1 0 0 37 -10 3 0 0 0 0 3 0 1 0 4-4disc.dat
4 4 -1 12.5 -10 1 12.5 -10 1 5 -10 -1 5 -10
3 4 0 32 -10 1 12.5 -10 -1 12.5 -10
4 0 -13 2 -10 -13 3 -10 13 3 -10 13 2 -10
4 4 -13 3 -10 -1 5 -10 1 5 -10 13 3 -10
4 16 -17 0 -10 -13 2 -10 13 2 -10 17 0 -10
3 0 0 45 -10 -35 46 -10 35 46 -10
4 16 -40 48 -10 40 48 -10 35 46 -10 -35 46 -10
0 // Main structure
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4088s01.dat
Status:
Needs 2 More Votes (F)
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
Update ring primitives via script. This will not reset the vote status of the part.
2024-05-09 13:56:09
Header Edits
keywords:
to
Bricklink 4088px3, Rebrickable 4088pr0003, Set 3629, Fabuland
2024-05-09 13:56:16
Header Edits
keywords:
Bricklink 4088px3, Fabuland, Rebrickable 4088pr0003, Set 3629
to
Bricklink 4088px3, Fabuland, Rebrickable 4088pr0003, Set 3629, Brickowl 925459
Added keyword
There are overlaps at the bottom of the pattern
2026-03-22 22:28:47
Creative Commons Attribution License information
This part is copyright ©
Chris Dee
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Lasse Deleuran, Orion Pobursky, Magnus Forsberg
