Official File parts/40942.dat
Part Attributes:
File Header:

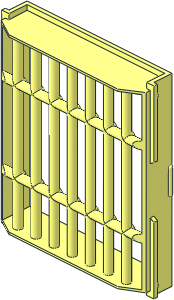

0 Bar 2 x 8 x 8 Sliding Grille
0 Name: 40942.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\40942s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\40942s02.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\40942s02.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\40942s02.dat
0 // Bottom
4 16 80 96 10 76 96 6 -76 96 6 -80 96 10
1 16 0 93.45 6 0 0 76 2.55 0 0 0 1 0 rect2p.dat
1 16 0 96 -4 -76 0 0 0 -1 0 0 0 10 recte3.dat
1 16 0 90.65 -4 -76 0 0 0 -1 .25 0 0 10 recte3.dat
4 16 76 90.9 6 60 90 -30 -60 90 -30 -76 90.9 6
4 16 -80 96 10 -77 88 10 77 88 10 80 96 10
1 16 0 54 10 -80 0 0 0 0 42 0 -1 0 recte3.dat
1 16 0 88 -5.1125 0 0 -77 0 1 0 -15.1125 0 0 rect2p.dat
4 16 -60 88 -30 60 88 -30 77 88 -20.225 -77 88 -20.225
1 16 0 89 -30 0 0 -60 1 0 0 0 1 0 rect.dat
4 16 77 88 -20.225 60 88 -30 60 90 -30 80 90.2875 -18.5
2 24 60 88 -30 77 88 -20.225
0 // Top
4 16 -76 -96 6 76 -96 6 80 -96 10 -80 -96 10
1 16 0 -93.45 6 0 0 76 -2.55 0 0 0 1 0 rect2p.dat
1 16 0 -96 -4 -76 0 0 0 1 0 0 0 10 recte3.dat
1 16 0 -90.65 -4 -76 0 0 0 1 -.25 0 0 10 recte3.dat
4 16 -60 -90 -30 60 -90 -30 76 -90.9 6 -76 -90.9 6
4 16 77 -88 10 -77 -88 10 -80 -96 10 80 -96 10
1 16 0 -54 10 -80 0 0 0 0 -42 0 -1 0 recte3.dat
1 16 0 -88 -5.1125 0 0 -77 0 -1 0 -15.1125 0 0 rect2p.dat
4 16 77 -88 -20.225 60 -88 -30 -60 -88 -30 -77 -88 -20.225
1 16 0 -89 -30 0 0 -60 -1 0 0 0 1 0 rect.dat
4 16 60 -90 -30 60 -88 -30 77 -88 -20.225 80 -90.2875 -18.5
4 16 -77 -88 -20.225 -60 -88 -30 -60 -90 -30 -80 -90.2875 -18.5
2 24 60 -88 -30 77 -88 -20.225
2 24 -60 -88 -30 -77 -88 -20.225
1 16 0 0 10 -77 0 0 0 0 -88 0 -1 0 recte4.dat
0 // Side
4 16 80 24.5 -10 80 12 6 80 -12 6 80 -24.5 -10
2 24 80 -12 6 80 12 6
4 16 80 -24.5 -10 80 -24.5 -14 80 24.5 -14 80 24.5 -10
4 16 80 90.2875 -18.5 80 24.5 -14 80 -24.5 -14 80 -90.2875 -18.5
2 24 80 90.2875 -18.5 80 -90.2875 -18.5
1 16 80 -12 8 0 0 2 0 24 0 -2 0 0 2-4cyli.dat
4 16 77 -88 10 80 -12 10 80 12 10 77 88 10
4 16 80 -90.2875 -18.5 77 -38.0447 -20.225 77 38.0447 -20.225 80 90.2875 -18.5
2 24 77 38.0447 -20.225 77 -38.0447 -20.225
4 16 77 88 10 77 38 -16 77 -38 -16 77 -88 10
4 16 77 -38.0447 -20.225 77 -38 -20 77 38 -20 77 38.0447 -20.225
4 16 77 -38 -16 77 38 -16 77 38 -20 77 -38 -20
4 16 -80 -12 6 -80 12 6 -80 24.5 -10 -80 -24.5 -10
2 24 -80 -12 6 -80 12 6
4 16 -80 24.5 -14 -80 -24.5 -14 -80 -24.5 -10 -80 24.5 -10
4 16 -80 -24.5 -14 -80 24.5 -14 -80 90.2875 -18.5 -80 -90.2875 -18.5
2 24 -80 90.2875 -18.5 -80 -90.2875 -18.5
1 16 -80 -12 8 0 0 -2 0 24 0 -2 0 0 2-4cyli.dat
4 16 -80 12 10 -80 -12 10 -77 -88 10 -77 88 10
4 16 -77 38.0447 -20.225 -77 -38.0447 -20.225 -80 -90.2875 -18.5 -80 90.2875 -18.5
2 24 -77 38.0447 -20.225 -77 -38.0447 -20.225
4 16 -77 -38 -16 -77 38 -16 -77 88 10 -77 -88 10
4 16 -77 38 -20 -77 -38 -20 -77 -38.0447 -20.225 -77 38.0447 -20.225
4 16 -77 38 -20 -77 38 -16 -77 -38 -16 -77 -38 -20
0 // Horizontal Bars and Joiners
1 16 0 42 0 1 0 0 0 1 0 0 0 1 s\40942s01.dat
1 16 0 -42 0 1 0 0 0 -1 0 0 0 1 s\40942s01.dat
0 // Vertical Bars Centre
1 16 -60 -38 -20 4 0 0 0 76 0 0 0 4 3-16cyli.dat
1 16 -60 -38 -20 -4 0 0 0 76 0 0 0 4 3-16cyli.dat
0 BFC INVERTNEXT
1 16 -60 0 -16.3044 0 0 1.5308 36.6475 0 0 0 -3.6956 0 box3u4p.dat
1 16 -60 -38 -20 4 0 0 0 76 0 0 0 -4 2-4cyli.dat
1 16 -40 -38 -20 4 0 0 0 76 0 0 0 4 3-16cyli.dat
1 16 -40 -38 -20 -4 0 0 0 76 0 0 0 4 3-16cyli.dat
0 BFC INVERTNEXT
1 16 -40 0 -16.3044 0 0 1.5308 36.6475 0 0 0 -3.6956 0 box3u4p.dat
1 16 -40 -38 -20 4 0 0 0 76 0 0 0 -4 2-4cyli.dat
1 16 -20 -38 -20 4 0 0 0 76 0 0 0 4 3-16cyli.dat
1 16 -20 -38 -20 -4 0 0 0 76 0 0 0 4 3-16cyli.dat
0 BFC INVERTNEXT
1 16 -20 0 -16.3044 0 0 1.5308 36.6475 0 0 0 -3.6956 0 box3u4p.dat
1 16 -20 -38 -20 4 0 0 0 76 0 0 0 -4 2-4cyli.dat
1 16 0 -38 -20 4 0 0 0 76 0 0 0 4 3-16cyli.dat
1 16 0 -38 -20 -4 0 0 0 76 0 0 0 4 3-16cyli.dat
0 BFC INVERTNEXT
1 16 0 0 -16.3044 0 0 1.5308 36.6475 0 0 0 -3.6956 0 box3u4p.dat
1 16 0 -38 -20 4 0 0 0 76 0 0 0 -4 2-4cyli.dat
1 16 20 -38 -20 4 0 0 0 76 0 0 0 4 3-16cyli.dat
1 16 20 -38 -20 -4 0 0 0 76 0 0 0 4 3-16cyli.dat
0 BFC INVERTNEXT
1 16 20 0 -16.3044 0 0 1.5308 36.6475 0 0 0 -3.6956 0 box3u4p.dat
1 16 20 -38 -20 4 0 0 0 76 0 0 0 -4 2-4cyli.dat
1 16 40 -38 -20 4 0 0 0 76 0 0 0 4 3-16cyli.dat
1 16 40 -38 -20 -4 0 0 0 76 0 0 0 4 3-16cyli.dat
0 BFC INVERTNEXT
1 16 40 0 -16.3044 0 0 1.5308 36.6475 0 0 0 -3.6956 0 box3u4p.dat
1 16 40 -38 -20 4 0 0 0 76 0 0 0 -4 2-4cyli.dat
1 16 60 -38 -20 4 0 0 0 76 0 0 0 4 3-16cyli.dat
1 16 60 -38 -20 -4 0 0 0 76 0 0 0 4 3-16cyli.dat
0 BFC INVERTNEXT
1 16 60 0 -16.3044 0 0 1.5308 36.6475 0 0 0 -3.6956 0 box3u4p.dat
1 16 60 -38 -20 4 0 0 0 76 0 0 0 -4 2-4cyli.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2022-03-20 00:50:02
2022-04-16 20:30:01
2024-05-08 17:01:40
2024-05-25 17:49:03
2024-05-28 02:57:17
Release 2024-04
