Unofficial File parts/41750.dat
Part Attributes:
File Header:

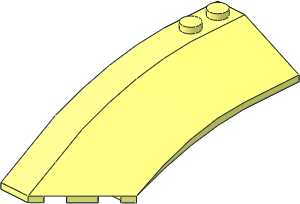

0 Slope Brick Round 3 x 8 x 2 Left
0 Name: 41750.dat
0 Author: Brent Jackson [bjackson]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS curved, Open, wedge
0 !HISTORY 2004-09-15 [PTadmin] Official Update 2004-03
0 !HISTORY 2007-07-04 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2020-09-02 [ejboer] Subparted for patterns, changed keywords
Show contents
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\41749s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stug-1x2.dat
4 16 10 0 20 10 0 -20 50 20 -20 50 20 20
3 16 50 20 -20 10 0 -20 10 2 -40
3 16 50 20 -20 10 2 -40 50 21.5403 -40
3 16 50 21.5403 -40 10 2 -40 10 6 -60
3 16 50 21.5403 -40 10 6 -60 50 26.1075 -60
3 16 50 26.1075 -60 10 6 -60 10 12 -80
3 16 50 26.1075 -60 10 12 -80 50 33.6299 -80
3 16 50 33.6299 -80 10 12 -80 10 20 -100
3 16 50 33.6299 -80 10 20 -100 50 44 -100
3 16 50 44 -100 10 20 -100 10 32 -120
3 16 50 44 -100 10 32 -120 10 44 -140
Status:
Needs More Votes (F)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
This part has the following errors
- All parts are required to be CC BY 4.0
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
None
Can't be done like this. The stud logo gets mirrored.
Added stud group and area for patterns, used mirrored subfile instead.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
Updated for changed subpart
Quick adjustment for new subfile, will propably need some work
2021-02-19 15:45:01
2022-09-20 15:35:01
2024-01-14 13:26:16
2024-01-14 13:26:17
See comment for 41750
2024-02-26 21:34:03
Mentioned wrong file...
Please see my comment for:
41749.dat
Please see my comment for:
41749.dat
Changed the curves to match 46413 and 42022. I know this breaks the patterned/stickered parts, will fix them as well.
If curves need to change again, happy to do so.
If curves need to change again, happy to do so.
