File Detail parts/41813.dat

Official File parts/41813.dat

Part Attributes:

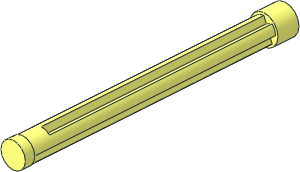

~Pneumatic Fire Hose Nozzle Simulated Jet Inner Segment

File Header:

0 ~Pneumatic Fire Hose Nozzle Simulated Jet Inner Segment
0 Name: 41813.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Technic

0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02

Show contents

1 16 0 0 -9 6 0 0 0 0 -6 0 9 0 4-4cylo.dat
1 16 0 0 -9 1 0 0 0 0 -1 0 1 0 4-4ring5.dat
0 BFC INVERTNEXT
1 16 0 0 0 1.33333 0 0 0 0 -1.33333 0 -6 0 4-4con2.dat
1 16 0 0 0 2 0 0 0 0 -2 0 -1 0 4-4ring2.dat
1 16 0 0 0 4 0 0 0 0 -4 0 -1 0 4-4edge.dat
1 16 0 0 -6 2.66667 0 0 0 0 -2.66667 0 -1 0 4-4edge.dat
1 16 0 0 -6 2.66667 0 0 0 0 -2.66667 0 -1 0 4-4disc.dat
1 16 0 0 -116 5.2 0 0 0 0 -5.2 0 4 0 4-4cylc.dat
1 16 0 0 -112 5 0 0 0 0 -5 0 8 0 5-8cyli.dat
1 16 0 0 -112 0 0 5 5 0 0 0 103 0 1-8cyli.dat
1 16 0 0 -104 -5 0 0 0 0 5 0 95 0 1-8cyli.dat
1 16 0 0 -104 0 0 -5 -5 0 0 0 95 0 1-8cyli.dat
1 16 0 0 -104 5 0 0 0 0 -5 0 95 0 1-8cyli.dat
1 16 0 0 -9 0 0 5 5 0 0 0 1 0 1-8edge.dat
1 16 0 0 -104 -5 0 0 0 0 -5 0 1 0 1-8edge.dat
1 16 0 0 -9 -5 0 0 0 0 5 0 1 0 1-8edge.dat
1 16 0 0 -104 0 0 5 -5 0 0 0 1 0 1-8edge.dat
1 16 0 0 -9 0 0 -5 -5 0 0 0 1 0 1-8edge.dat
1 16 0 0 -9 5 0 0 0 0 -5 0 1 0 1-8edge.dat
1 16 0 0 -9 0 0 -5 5 0 0 0 1 0 1-8chrd.dat
1 16 0 0 -9 5 0 0 0 0 5 0 1 0 1-8chrd.dat
1 16 0 0 -9 0 0 5 -5 0 0 0 1 0 1-8chrd.dat
1 16 0 0 -9 -5 0 0 0 0 -5 0 1 0 1-8chrd.dat
1 16 0 0 -112 0 0 -5 5 0 0 0 -1 0 1-8chrd.dat
1 16 0 0 -104 -5 0 0 0 0 -5 0 -1 0 1-8chrd.dat
1 16 0 0 -104 0 0 5 -5 0 0 0 -1 0 1-8chrd.dat
1 16 0 0 -112 5 0 0 0 0 5 0 -1 0 1-8chrd.dat
3 16 -5 0 -9 -2.5 -1.0355 -9 -3.5355 -3.5355 -9
3 16 -2.5 -1.0355 -104 -5 0 -104 -3.5355 -3.5355 -104
1 16 -3.01775 -2.2855 -56.5 0 1 -0.51775 0 0 -1.25 -47.5 0 0 rect.dat
1 16 -3.75 -0.51775 -56.5 0 0 -1.25 0 1 0.51775 47.5 0 0 rect3.dat
3 16 0 -5 -9 1.0355 -2.5 -9 3.5355 -3.5355 -9
3 16 1.0355 -2.5 -104 0 -5 -104 3.5355 -3.5355 -104
1 16 2.2855 -3.01775 -56.5 0 0 1.25 0 1 -0.51775 -47.5 0 0 rect.dat
1 16 0.51775 -3.75 -56.5 0 -1 -0.51775 0 0 -1.25 47.5 0 0 rect3.dat
3 16 5 0 -9 2.5 1.0355 -9 3.5355 3.5355 -9
3 16 2.5 1.0355 -112 5 0 -112 3.5355 3.5355 -112
1 16 3.01775 2.2855 -60.5 0 -1 0.51775 0 0 1.25 -51.5 0 0 rect.dat
1 16 3.75 0.51775 -60.5 0 0 1.25 0 -1 -0.51775 51.5 0 0 rect3.dat
3 16 0 5 -9 -1.0355 2.5 -9 -3.5355 3.5355 -9
3 16 -1.0355 2.5 -112 0 5 -112 -3.5355 3.5355 -112
1 16 -2.2855 3.01775 -60.5 0 0 -1.25 0 -1 0.51775 -51.5 0 0 rect.dat
1 16 -0.51775 3.75 -60.5 0 1 0.51775 0 0 1.25 51.5 0 0 rect3.dat
1 16 0 0 -112 5 0 0 0 0 -5 0 1 0 5-8edge.dat
1 16 0 0 -112 0 0 5 5 0 0 0 1 0 1-8edge.dat
1 16 0 0 -112 0 0 0.2 -0.2 0 0 0 -1 0 4-4ring25.dat
