Official File parts/41816.dat
Part Attributes:
File Header:

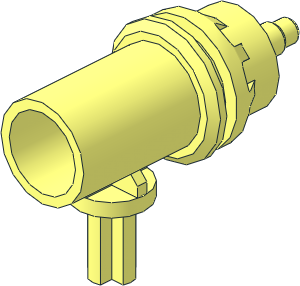

0 ~Pneumatic Fire Hose Nozzle Handle with Bladder or Hose Attachment
0 Name: 41816.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Technic
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
1 16 0 20 0 1 0 0 0 20 0 0 0 -1 axle.dat
1 16 0 20 0 10 0 0 0 -4 0 0 0 -10 4-4cylc.dat
1 16 0 16 0 10 0 0 0 1 0 0 0 -10 4-4disc.dat
1 16 0 0 -22 13.125 0 0 0 0 13.125 0 37 0 4-4cylo.dat
1 16 0 0 0 1 0 0 0 0 -1 0 -1 0 s\41817s02.dat
1 16 0 0 23 13.125 0 0 0 0 13.125 0 -4 0 4-4cylo.dat
1 16 0 0 19 4.375 0 0 0 0 -4.375 0 -1 0 4-4ring3.dat
1 16 0 0 40 13.125 0 0 0 0 13.125 0 -13 0 4-4cylo.dat
1 16 0 0 52 0 0 -3.2 3.2 0 0 0 4 0 4-4cylo.dat
1 16 0 0 40 0 0 -4 4 0 0 0 11 0 4-4cylo.dat
1 16 0 0 57 0 0 -2.4 2.4 0 0 0 1 0 4-4edge.dat
1 16 0 0 51 0 0 -0.8 0.8 0 0 0 1 0 4-4con4.dat
1 16 0 0 56 0 0 -0.8 0.8 0 0 0 1 0 4-4con3.dat
1 16 0 0 57 0 0 -0.4 0.4 0 0 0 -1 0 4-4ring5.dat
0 BFC INVERTNEXT
1 16 0 0 38 0 0 -2 2 0 0 0 19 0 4-4cylo.dat
1 16 0 0 40 13.125 0 0 0 0 13.125 0 -1 0 1-4chrd.dat
1 16 0 0 40 0 0 -13.125 13.125 0 0 0 -1 0 1-4chrd.dat
1 16 0 0 40 -13.125 0 0 0 0 -13.125 0 -1 0 1-4chrd.dat
1 16 0 0 40 0 0 13.125 -13.125 0 0 0 -1 0 1-4chrd.dat
4 16 4 0 40 0 -4 40 0 -13.125 40 13.125 0 40
4 16 0 4 40 4 0 40 13.125 0 40 0 13.125 40
4 16 -4 0 40 0 4 40 0 13.125 40 -13.125 0 40
4 16 0 -4 40 -4 0 40 -13.125 0 40 0 -13.125 40
1 16 0 0 19 17.5 0 0 0 0 17.5 0 -2 0 4-4cylo.dat
1 16 0 0 15 2.1875 0 0 0 0 2.1875 0 1 0 4-4ring6.dat
1 16 0 0 17 2.1875 0 0 0 0 2.1875 0 -2 0 4-4con7.dat
1 16 0 0 -22 2.625 0 0 0 0 2.625 0 1 0 4-4ring4.dat
0 BFC INVERTNEXT
1 16 0 0 -22 10.5 0 0 0 0 10.5 0 58 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 36 5.25 0 0 0 0 5.25 0 2 0 4-4cylo.dat
1 16 0 0 36 5.25 0 0 0 0 5.25 0 1 0 4-4ring1.dat
1 16 0 0 38 5.25 0 0 0 0 5.25 0 1 0 1-4chrd.dat
1 16 0 0 38 0 0 -5.25 5.25 0 0 0 1 0 1-4chrd.dat
1 16 0 0 38 -5.25 0 0 0 0 -5.25 0 1 0 1-4chrd.dat
1 16 0 0 38 0 0 5.25 -5.25 0 0 0 1 0 1-4chrd.dat
1 16 0 0 38 -1.41421 0 -1.41421 1.41421 0 -1.41421 0 1 0 4-4ndis.dat
4 16 -2.8284 0 38 0 -2.8284 38 0 -5.25 38 -5.25 0 38
4 16 0 -2.8284 38 2.8284 0 38 5.25 0 38 0 -5.25 38
4 16 2.8284 0 38 0 2.8284 38 0 5.25 38 5.25 0 38
4 16 0 2.8284 38 -2.8284 0 38 -5.25 0 38 0 5.25 38
1 16 0 0 1.5 5.02272 0 -12.12592 12.12592 0 5.02272 0 1 0 1-8edge.dat
1 16 0 0 -1.5 5.02272 0 -12.12592 12.12592 0 5.02272 0 -1 0 1-8edge.dat
1 16 0 14.41335 -9.639 -1.5 0 0 0 0 1.58665 0 1 0 rect3.dat
2 24 0 13.125 -9.639 1.5 12.8267 -9.639
2 24 -1.5 12.8267 -9.639 0 13.125 -9.639
1 16 0 14.41335 9.639 1.5 0 0 0 0 1.58665 0 -1 0 rect3.dat
2 24 0 13.125 9.639 1.5 12.8267 9.639
2 24 -1.5 12.8267 9.639 0 13.125 9.639
1 16 -1.5 14.41335 0 0 1 0 0 0 1.58665 9.639 0 0 rect2p.dat
1 16 1.5 14.41335 0 0 -1 0 0 0 1.58665 -9.639 0 0 rect2p.dat
2 24 -1.5 16 -1.5 -1.5 12.8267 -1.5
2 24 -1.5 16 1.5 -1.5 12.8267 1.5
2 24 1.5 16 -1.5 1.5 12.8267 -1.5
2 24 1.5 16 1.5 1.5 12.8267 1.5
2 24 -5.0227 12.1258 -1.5 -7.3516 10.5699 -1.5
2 24 -5.0227 12.1258 1.5 -7.3516 10.5699 1.5
1 16 -8.4953 11.78495 0 0 1 -1.1437 0 0 1.21505 1.5 0 0 rect.dat
1 16 -9.639 14.5 0 0 1 0 0 0 1.5 1.5 0 0 rect3.dat
4 16 -5.0227 12.1258 -1.5 -7.3516 10.5699 -1.5 -9.639 13 -1.5 -9.639 16 -1.5
4 16 -9.639 13 1.5 -7.3516 10.5699 1.5 -5.0227 12.1258 1.5 -9.639 16 1.5
2 24 5.0227 12.1258 -1.5 7.3516 10.5699 -1.5
2 24 5.0227 12.1258 1.5 7.3516 10.5699 1.5
1 16 8.4953 11.78495 0 -1.1437 -1 0 -1.21505 0 0 0 0 -1.5 rect.dat
1 16 9.639 14.5 0 0 -1 0 0 0 1.5 -1.5 0 0 rect3.dat
4 16 9.639 13 -1.5 7.3516 10.5699 -1.5 5.0227 12.1258 -1.5 9.639 16 -1.5
4 16 5.0227 12.1258 1.5 7.3516 10.5699 1.5 9.639 13 1.5 9.639 16 1.5
4 16 5.0227 12.1258 -1.5 -5.0227 12.1258 -1.5 -9.639 16 -1.5 9.639 16 -1.5
2 24 9.639 16 -1.5 -9.639 16 -1.5
4 16 -9.639 16 1.5 -5.0227 12.1258 1.5 5.0227 12.1258 1.5 9.639 16 1.5
2 24 9.639 16 1.5 -9.639 16 1.5
1 16 0 0 15 0 0 15.3125 15.3125 0 0 0 1 0 4-4edge.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2019-12-03 17:50:02
Oops...
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2021-10-08 19:50:01
2021-11-14 09:05:01
I'm not sure that the origin of this part is correct. Why is the origin of this part:
https://library.ldraw.org/tracker/24941
at the pneumatic hose nipple but for this part is the center of the part?
https://library.ldraw.org/tracker/24941
at the pneumatic hose nipple but for this part is the center of the part?
2023-08-20 05:44:13
Actually the choice of origin follows the same logic on both parts: at the intersection of attachment points line and of nozzle line.
Ok. I just wanted to make sure that this was thought about and wasn't an oversight.
2023-08-20 14:14:08
2023-08-25 01:30:51
Release 2023-04
